22-11B302 (211-3) - Toro Yard Tractor (1986) SEAT AND SUSPENSION Parts Diagram

Yard Tractor

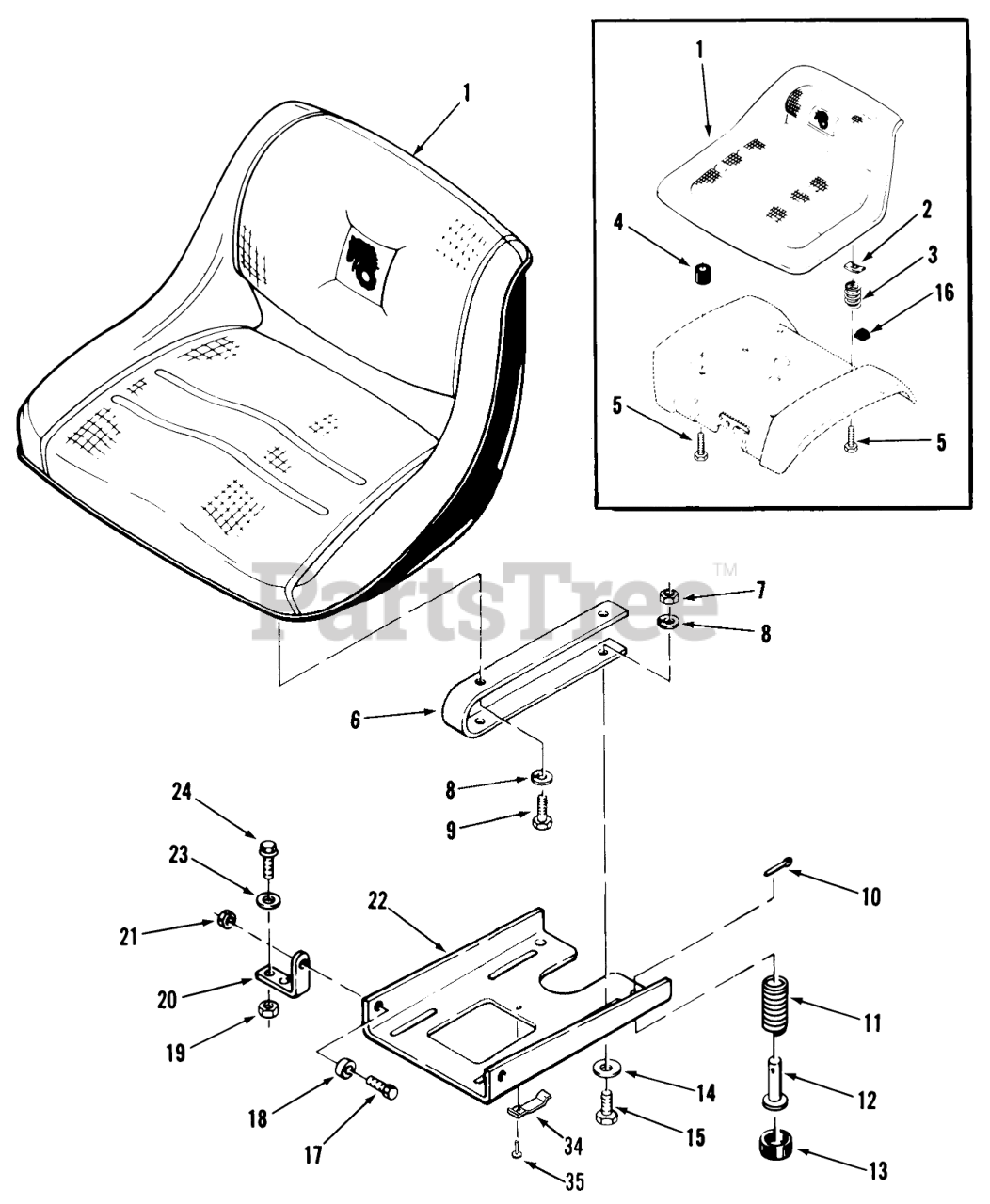

SEAT AND SUSPENSION Parts Diagram

  • Title
1

Toro 107016

ASSY-SEAT

$

$

Not available

Toro 108912

Seat
(Superseded to 78-7600)

$

$

Not available

Toro 105999

Seat 310-8
(Superseded to 78-7600)

$

$

Not available

Toro 105099

Seat YT12A Only

$

$

Not available

2

Toro 108457

NUT-PUSH

$

$

Not available

3

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

4

Toro 108787

GROMMET-RUBBER

$

$

Not available

5

Toro 108438

SPECIAL BOLT

$

$

Not available

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

6

Toro 110920

Seat Spring
(Superseded to 110920-03)

$195.99

$

Usually ships in 3-6 days

0

7

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

8

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

9

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

10

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

11

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

12

$7.99

$

Usually ships in 3-6 days

0

13

$

$

Not available

14

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

15

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

16

Toro 518211

BUMPER

$4.49

$

In Stock, Qty 6

0

17

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

18

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

19

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

20

Toro 105524

BRACKET-PIVOT

$

$

Not available

21

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

22

Toro 111714

PLATE SEAT PIVOT B

$

$

Not available

23

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

24

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

34

Toro 111654

SPRING SWITCH

$3.49

$

Usually ships in 3-6 days

0

35

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0
