22-11B302 (211-3) - Toro Yard Tractor (1986) DRIVE BELT AND PULLEYS Parts Diagram

Yard Tractor

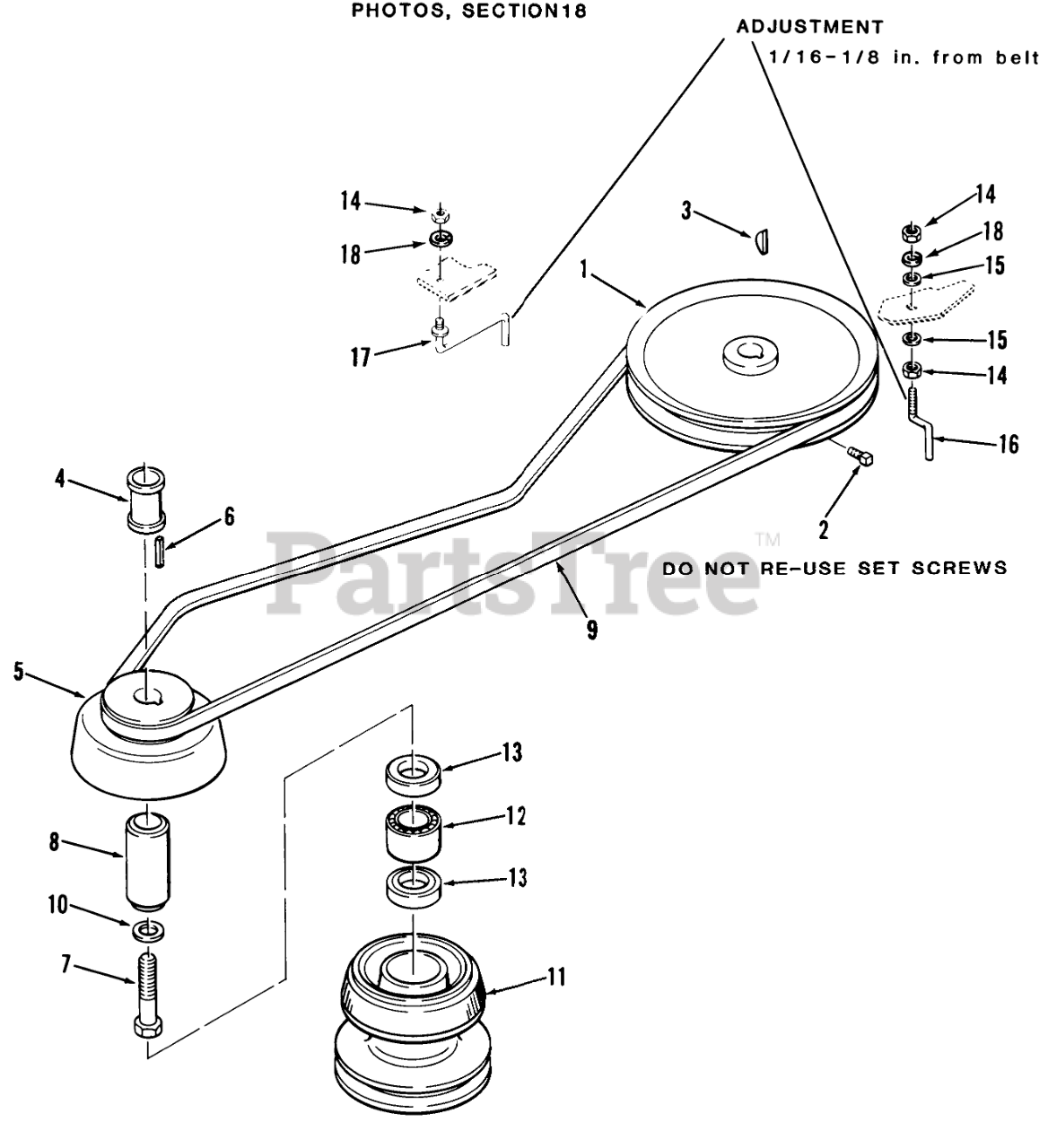

DRIVE BELT AND PULLEYS Parts Diagram

  • Title

1

Toro 106387

PULLEY-TRANSMISSION

$188.99

$

Usually ships in 3-6 days

0

2

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, only 3 left!

0

3

Toro 937225

KEY-HI-PRO

$5.49

$

Usually ships in 3-6 days

0

4

Toro 106563

TUBE SPACER

$126.99

$

Usually ships in 3-6 days

0

5

Toro 108408

PULLEY-ENGINE

$209.99

$

Usually ships in 3-6 days

0

6

Toro 105453

Key

$2.49

$

In Stock, only 2 left!

0

7

Toro 908195

HEX HD CAP SCREW

$

$

Not available

8

Toro 106564

RACE BEARING

$

$

Not available

9

Toro 108427

V-BELT

$43.99

$

Usually ships in 3-6 days

0

10

Toro 107750

WASHER

$

$

Not available

11

Toro 111321

ASSY PULLEY MWR DR

$

$

Not available

12

Toro 106769

BRG-NEEDLE OPEN END

$60.99

$

In Stock, only 1 left!

0

13

Toro 6663

SEAL-OIL

$12.99

$

In Stock, only 1 left!

0

14

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

15

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

16

Toro 108397

GUIDE-BELT

$

$

Not available

17

Toro 109041

GUIDE-BELT

$

$

Not available

18

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 4 left!

0
