22-08B302 (208-3) - Toro Yard Tractor (1986) FRAME, SHEET METAL AND COVERS Parts Diagram

Yard Tractor

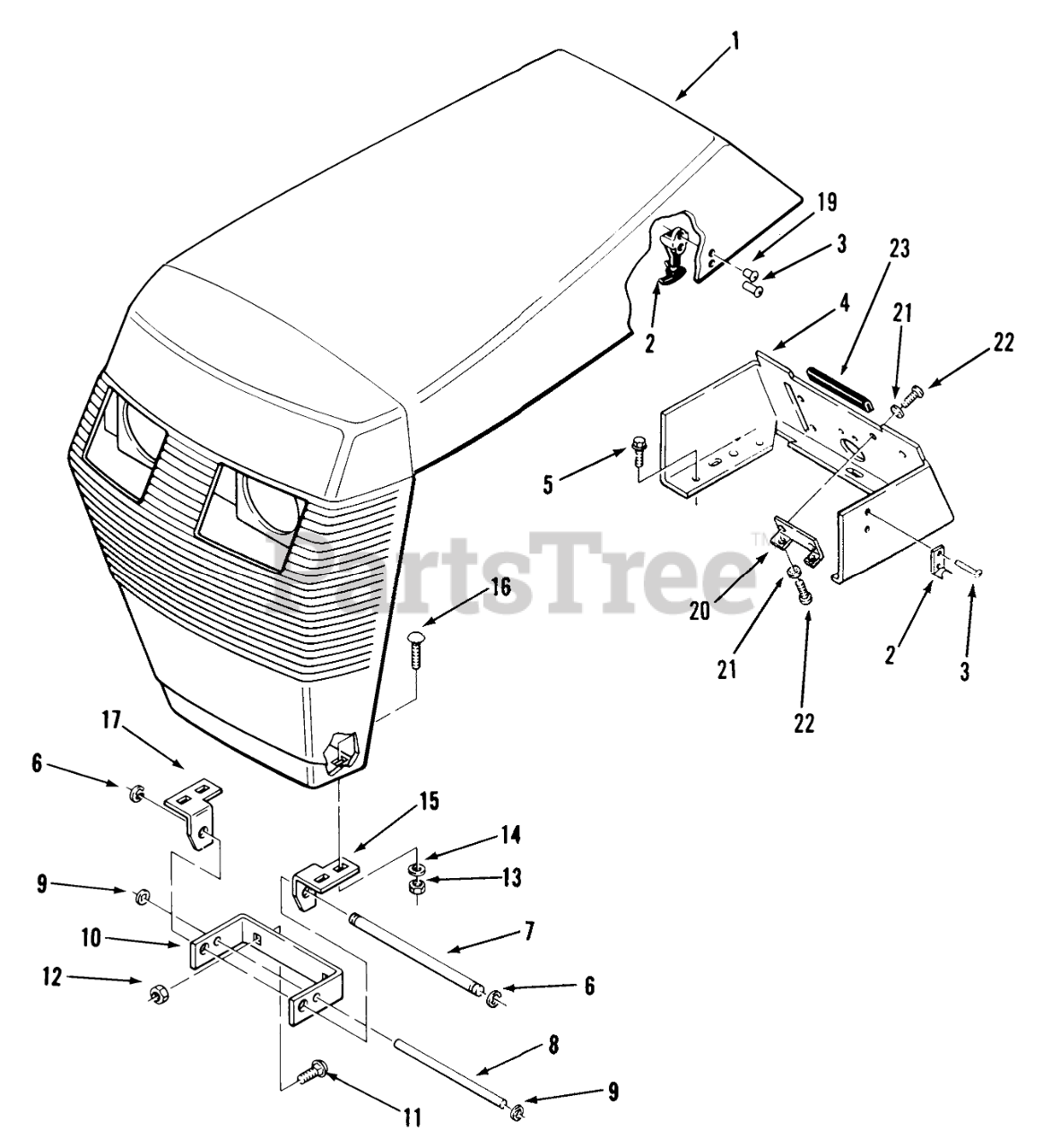

FRAME, SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 110134

Hood 208-3, 211-3, 211-5
(Superseded to 114219)

$

$

Not available

Toro 111218

Hood YT12A Only
(Superseded to 114220)

$

$

Not available

2

Toro 106825

ASSY-FLEX DRAW LATCH

$53.99

$

Usually ships in 3-6 days

0

3

Toro 923785

RIVET -4

$1.49

$

Usually ships in 3-6 days

0

4

Toro 111371

CONSOLE B

$

$

Not available

Toro 111243

Console 211-5, YT12A Only

$

$

Not available

5

Toro 926694

SCREW

$

$

Not available

6

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

7

Toro 108458

ROD-GRILL PIVOT

$

$

Not available

8

Toro 108243

ROD-HOOD STOP

$

$

Not available

9

Toro 5466

SPEED NUT

$

$

Not available

10

Toro 109194

Bracket Hood Pivot

$

$

Not available

11

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 14

0

12

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

13

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

14

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

15

Toro 109146

BRKT-GRILL PIVOT R (NS)
(Superseded to 109146-01)

$

$

Not available

16

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

17

Toro 109145

BRKT-GRILL PIVOT R
(Superseded to 109145-01)

$34.99

$

Usually ships in 3-6 days

0

19

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

20

Toro 111653

Bracket 211-5, YT12A Only

$

$

Not available

21

Toro 920150

Washer-Lock
(Superseded to 3254-9)

$0.99

$

Usually ships in 3-6 days

0

22

Toro 9103092

Screw #6-32 x 3/8 Black

$

$

Currently unavailable

23

Toro 111757

EDGING-CONSOLE

$11.99

$

In Stock, only 2 left!

0
