22-08B302 (208-3) - Toro Yard Tractor (1986) ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

Yard Tractor

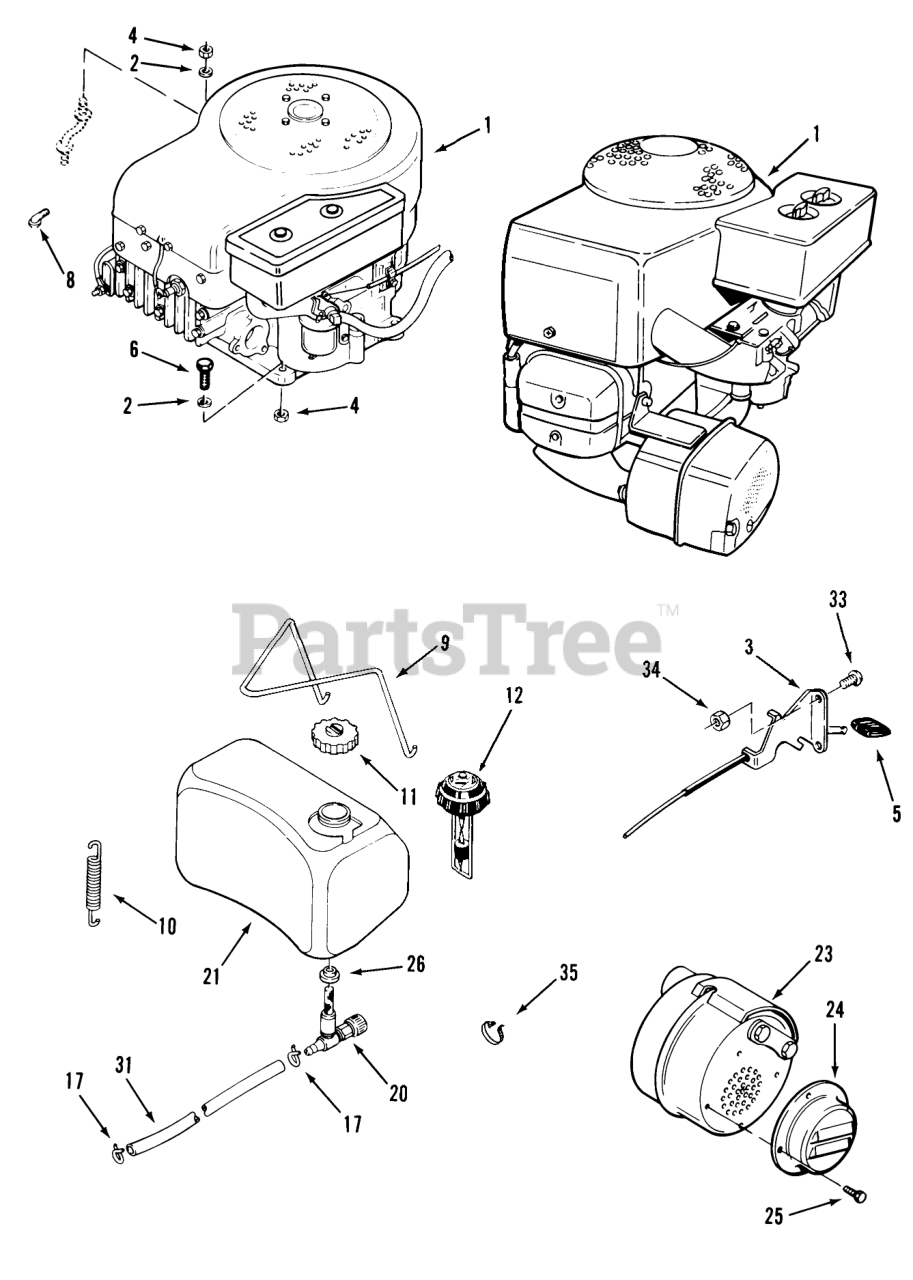

ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 110682

Engine-08HP-B&S Model 191707, Type 2153-01 208-3 Only

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Currently unavailable

Toro 111675

Engine-11HP-B&S Model 252707, Type 0620-01 211-3 Only

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Currently unavailable

Toro 110169

Engine-11HP-B&S Model 253707, Type 0158-01 211-5 Only

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Currently unavailable

Toro 111732

Engine-12HP-Tecumseh Model OVXL 120 LT, Type 202009 YT12A Only

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Currently unavailable

2

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

3

Toro 110684

Choke/Throttle Control
(Superseded to 115789)

$104.99

$

Usually ships in 3-6 days

0

4

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

5

Toro 108917

KNOB-THROTTLE

$3.49

$

In Stock, only 1 left!

0

6

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

8

Toro 943083

STREET ELBOW 45DEGRE

$19.99

$

Usually ships in 3-6 days

0

9

Toro 111385

Hold Down Wire

$

$

Not available

10

Toro 107788

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

11

Toro 108011

CAP-GASOLINE

$61.99

$

In Stock, only 1 left!

0

12

Toro 111771

Gasoline Gauge Cap

$

$

Not available

17

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

20

Toro 104025

Fuel Valve

$

$

Currently unavailable

21

Toro 109961

Fuel Tank Assy

$

$

Not available

23

Toro 110774

MUFFLER

$

$

Not available

24

Toro 110775

DEFLECTOR MUFFLER

$

$

Not available

25

Toro 9134062

Hex HD Screw 8-32 x 3/8-Black-211-3, 211-5

$

$

Currently unavailable

26

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 18

0

31

Toro 110433

Fuel Hose 14.5 in. (36.8 cm) B-115 Only
(Superseded to 100061)

$

$

Not available

Toro YT12A

Only

$

$

Currently unavailable

33

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

34

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

35

Toro 518017

Cable Tie

$

$

Not available
