22-08B302 (208-3) - Toro Yard Tractor (1986) 3 & 5-SPEED TRANSMISSION Parts Diagram

Yard Tractor

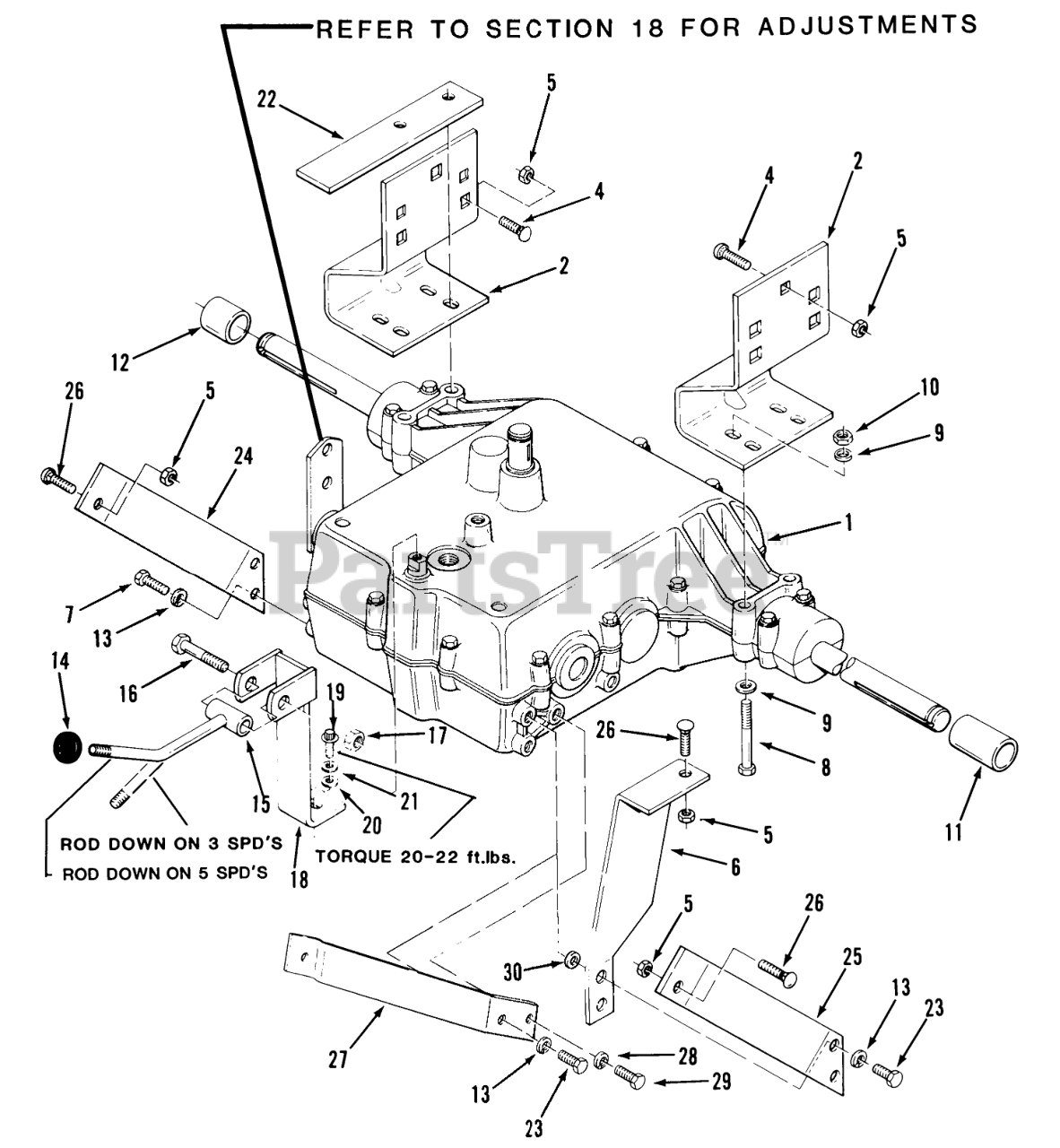

3 & 5-SPEED TRANSMISSION Parts Diagram

  • Title
1

Toro 111047

Trans.-3-Spd.(Peerless Model 900-013)

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Currently unavailable

Toro 111048

TRANSAXLE 5SPD

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Not available

2

Toro 107970

Bracket-Rear Axle RH

$

$

Not available

Toro 110295

Bracket-Rear Axle LH-3-Speed Only

$

$

Not available

Toro 108984

Rear Axle Bracket LH 211-5

$

$

Not available

4

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

5

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

6

Toro 110297

Torque Strap 3-Speed Only
(Superseded to 113-904)

$3.23

$

Usually ships in 3-6 days

0

7

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

8

Toro 908025

HHCS
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

9

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

10

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

11

Toro 110201

SPACER

$

$

Not available

Toro 108421

SPACER-AXLE LH

$

$

Not available

12

Toro 108420

SPACER-AXLE RH

$

$

Not available

13

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

14

$15.99

$

In Stock, only 4 left!

0

15

Toro 110640

ASSY UPPER SHIFT ROD

$

$

Not available

16

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

17

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

18

Toro 110192

Shift Lever-Lower 3-Speed Only

$

$

Not available

Toro 109492

ASSY LEVER R

$374.99

$

Usually ships in 3-6 days

0

19

Toro 111051

Bolt-12 Point-5-Speed
(Superseded to 9114384)

$

$

Not available

20

Toro 104869

WASHER

$

$

Not available

21

Toro 111050

WASHER SPECIAL

$

$

Not available

22

Toro 110163

Brake Stop Bar 3-Speed Only

$

$

Not available

Toro 108396

Brake Stop Bar

$

$

Not available

23

Toro 926697

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

24

Toro 110190

TORQUE STRAP RH R

$

$

Not available

Toro 110798

Torque Strap RH 211-5 Only

$

$

Not available

25

Toro 110797

Torque Strap LH 211-5 Only

$

$

Not available

26

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

27

Toro 110296

TORQUE STRAP LH R

$

$

Not available

28

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

29

Toro 926673

Bolt, 1/4-20 x 3/4 Swage Form

$

$

Currently unavailable

30

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0
