21X314-0110-E1 - Briggs & Stratton Horizontal Engine Alternator, Electric Starter, Fuel Supply, Ignition Parts Diagram

Horizontal Engine

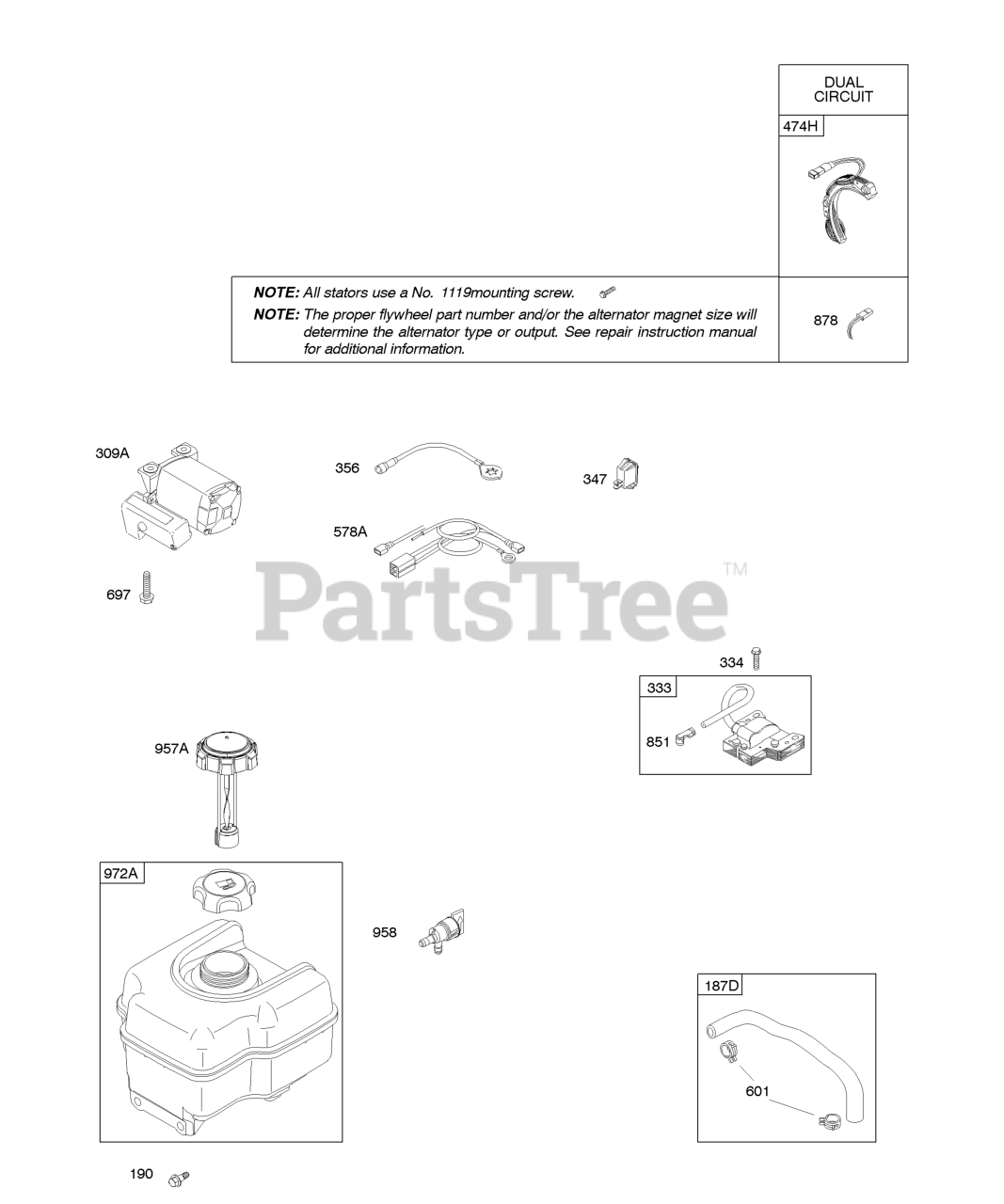

Alternator, Electric Starter, Fuel Supply, Ignition Parts Diagram

  • Title

187D

Briggs & Stratton 791879

Line-Fuel

$17.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 692127

Screw

Note: (Fuel Tank)

$6.49

$

In Stock, only 2 left!

0

309A

Briggs & Stratton 793524

Motor-Starter
(Superseded to 795909)

$274.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

347

Briggs & Stratton 698338

Switch-Rocker
(Superseded to 795333)

$13.99

$

In Stock, only 1 left!

0

356

Briggs & Stratton 692603

Wire-Stop
(Superseded to 695630)

$7.99

$

Usually ships in 2-12 days

0

474H

Briggs & Stratton 698230

Alternator

$62.99

$

Usually ships in 2-12 days

0

578A

Briggs & Stratton 792576

Wire Assembly

$8.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

697

Briggs & Stratton 698113

Screw

Note: (Drive Cap)

$3.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

878

Briggs & Stratton 398661

Harness-Alternator

$34.99

$

Usually ships in 2-12 days

0

957A

Briggs & Stratton 698109

Cap-Fuel Tank

Note: (Plastic)

$

$

Not available

958

Briggs & Stratton 698180

Valve-Fuel Shut Off

Note: (Plastic)

$11.99

$

In Stock, Qty 20+

0

972A

Briggs & Stratton 694260

Tank-Fuel
(Superseded to 799863)

Note: (Plastic)

$89.99

$

In Stock, Qty 10

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
