21R877-0077-B1 - Briggs & Stratton Vertical Engine Carburetor and Fuel Supply Group Parts Diagram

Vertical Engine

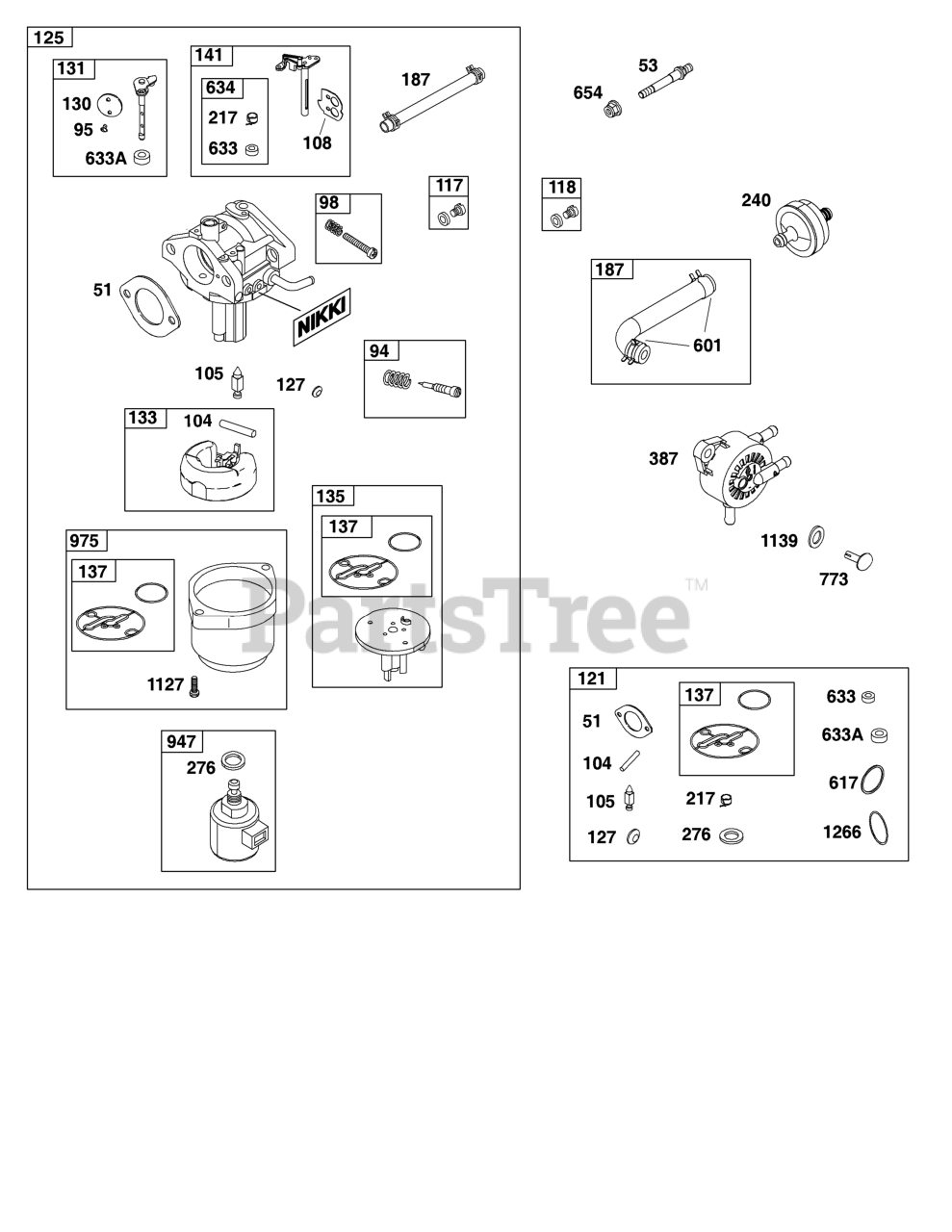

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

53

Briggs & Stratton 591260

STUD

Note: (Carburetor)

$8.49

$

In Stock, only 4 left!

0

94

Briggs & Stratton 793610

KIT, Idle Mixture

$20.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 695408

KIT, Idle Speed

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 696136

VALVE, Float Needle

$15.99

$

In Stock, Qty 20+

0

108

Briggs & Stratton 698773

VALVE, Choke

$8.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 791405

JET, Main

Note: (Standard)

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 698788

JET, Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 796184

KIT, Carburetor Overhaul

$63.99

$

In Stock, Qty 20+

0

125

Briggs & Stratton 593433

CARBURETOR

$143.99

$

In Stock, Qty 5

0

127

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 2 left!

0

130

Briggs & Stratton 698774

VALVE, Throttle

$8.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 698776

KIT, Throttle Shaft

$39.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, Qty 8

0

135

Briggs & Stratton 796400

TUBE, Fuel Transfer

$91.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 698781

GASKET, Float Bowl

$9.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 698778

KIT, Choke Shaft

$32.99

$

In Stock, only 1 left!

0

187

Briggs & Stratton 791805

LINE, Fuel

$24.99

$

In Stock, only 1 left!

0

217

Briggs & Stratton 695409

SPRING, Choke Return

$8.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, Qty 15

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

SEAL, O-Ring

$5.49

$

In Stock, Qty 18

0

633

Briggs & Stratton 699813

SEAL, Choke/Throttle Shaft

$6.99

$

In Stock, only 1 left!

0

633A

Briggs & Stratton 690998

SEAL, Choke/Throttle Shaft

$7.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 698779

Spring/Seal Assembly

$8.99

$

In Stock, only 1 left!

0

654

Briggs & Stratton 690958

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 3 left!

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, only 3 left!

0

947

Briggs & Stratton 596038

SOLENOID, Fuel

$79.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 699502

BOWL, Float

$45.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl to Carburetor Body)

$4.49

$

In Stock, Qty 20+

0

1139

Briggs & Stratton 796449

WASHER

$4.49

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

$4.49

$

In Stock, Qty 20+

0
