21R707-0136-F1 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

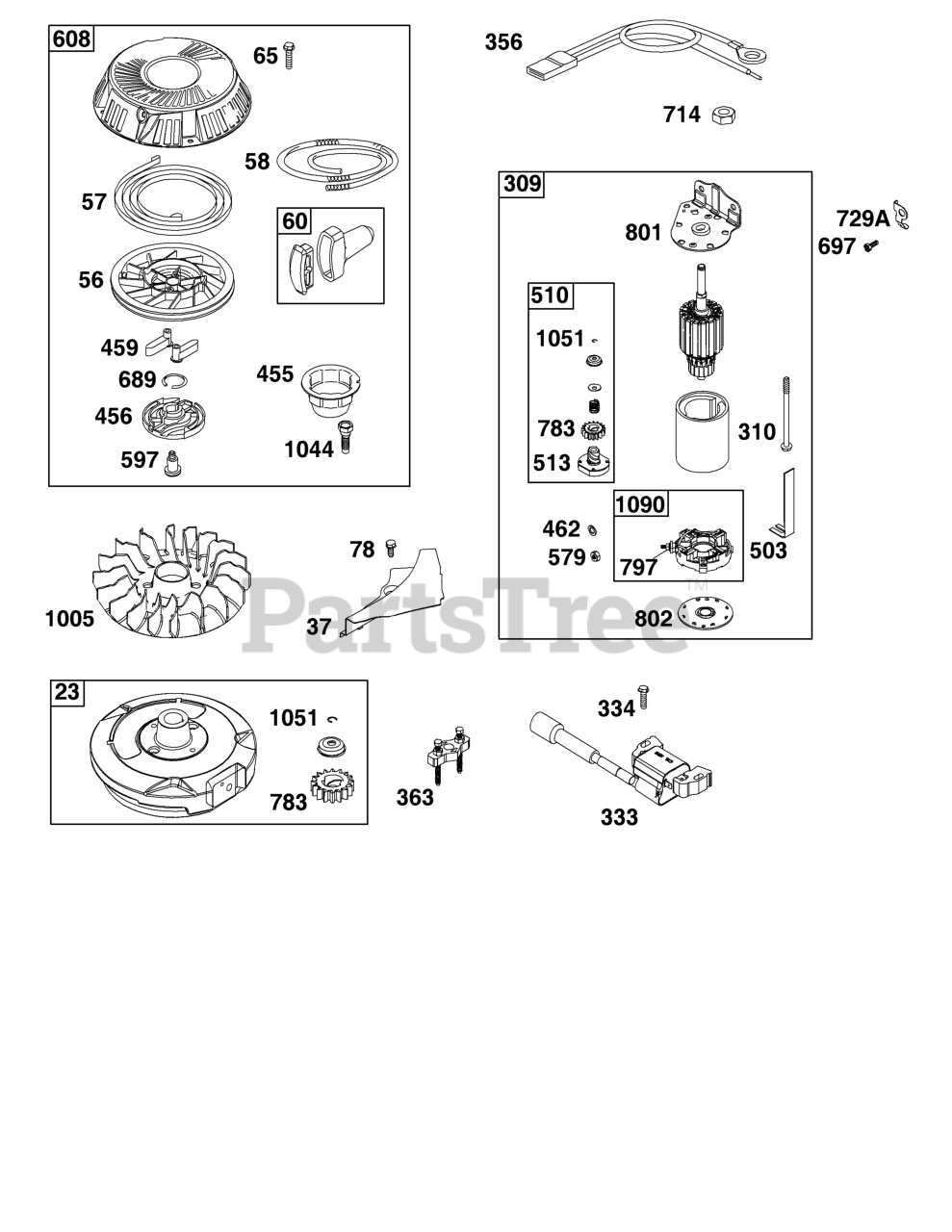

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 591761

FLYWHEEL

$255.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 697352

GUARD, Flywheel

$10.99

$

In Stock, only 2 left!

0

56

Briggs & Stratton 695129

PULLEY, Starter

$29.99

$

In Stock, Qty 7

0

57

Briggs & Stratton 695131

SPRING, Rewind Starter

$17.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 695132

ROPE, Starter

$8.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 595253

GRIP, Starter Rope

$8.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 697725

SCREW

Note: (Rewind Starter)

$4.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 691693

SCREW

$3.99

$

In Stock, Qty 9

0

309

Briggs & Stratton 593934

MOTOR, Starter

$131.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

333

Briggs & Stratton 594626

ARMATURE, Magneto

$52.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 695113

CUP, Flywheel

$15.99

$

In Stock, only 1 left!

0

456

Briggs & Stratton 695128

PLATE, Pawl Friction

$12.99

$

In Stock, Qty 18

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

Note: (Quantity 2)

$3.49

$

In Stock, Qty 13

0

462

Briggs & Stratton 691261

WASHER

Note: (Starter Cable)

$3.99

$

In Stock, only 3 left!

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 693699

DRIVE, Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 20+

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 2 left!

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

597

Briggs & Stratton 691696

Screw (Pawl Friction Plate)

Note: (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

608

Briggs & Stratton 593939

STARTER, Rewind

$105.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 691855

SPRING, Friction

$4.49

$

In Stock, only 2 left!

0

697

Briggs & Stratton 791680

SCREW

$3.99

$

In Stock, Qty 6

0

714

Briggs & Stratton 691612

NUT

Note: (Wire Stop)

$3.49

$

In Stock, only 1 left!

0

729A

Briggs & Stratton 691224

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 593935

GEAR, Pinion

$26.99

$

In Stock, only 1 left!

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

CAP, Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 796200

FAN, Flywheel

$42.99

$

In Stock, only 2 left!

0

1044

Briggs & Stratton 698139

SCREW

Note: (Flywheel)

$5.99

$

In Stock, Qty 7

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0
