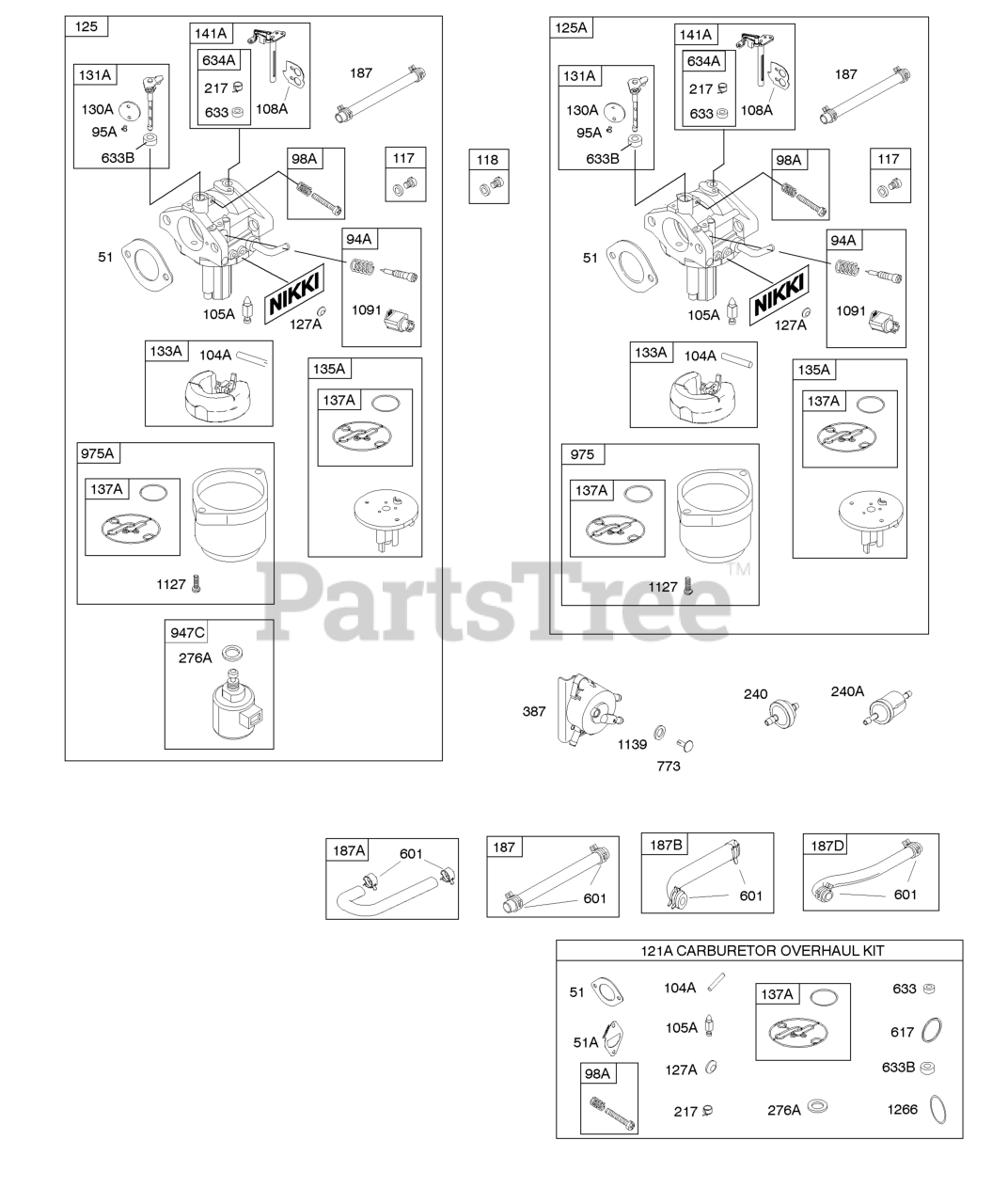

21R602-0002-H1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply, Kit - Carburetor Overhaul Parts Diagram

Vertical Engine

Carburetor, Fuel Supply, Kit - Carburetor Overhaul Parts Diagram

  • Title
51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 796081

Gasket-Intake

$3.99

$

In Stock, only 4 left!

0

94A

Briggs & Stratton 793610

KIT, Idle Mixture

Note: (Nikki)

$20.99

$

In Stock, only 2 left!

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve) (Nikki)

$5.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 695408

KIT, Idle Speed

Note: (Nikki)

$13.99

$

In Stock, only 1 left!

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

Note: (Nikki)

$7.49

$

In Stock, only 2 left!

0

105A

Briggs & Stratton 696136

VALVE, Float Needle

Note: (Nikki)

$15.99

$

In Stock, Qty 20+

0

108A

Briggs & Stratton 698773

VALVE, Choke

Note: (Nikki)

$8.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 791405

JET, Main

Note: (Standard) (Standard)

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 698788

JET, Main

Note: (High Altitude) (5000 Feet)

$17.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 796184

KIT, Carburetor Overhaul

Note: (Nikki)

$63.99

$

In Stock, Qty 19

0

125A

Briggs & Stratton 590399

Carburetor

Note: (Nikki Without Solenoid)

$137.99

$

In Stock, Qty 20+

0

127A

Briggs & Stratton 690727

PLUG, Welch

Note: (Nikki)

$4.49

$

In Stock, only 2 left!

0

130A

Briggs & Stratton 698774

VALVE, Throttle

Note: (Nikki)

$8.49

$

Usually ships in 2-12 days

0

131A

Briggs & Stratton 698776

KIT, Throttle Shaft

Note: (Nikki)

$39.99

$

In Stock, only 1 left!

0

133A

Briggs & Stratton 694914

FLOAT, Carburetor

Note: (Nikki)

$28.99

$

In Stock, Qty 8

0

135A

Briggs & Stratton 698780

Tube-Fuel Transfer

Note: (Nikki)(Gravity Feed)(Does Not Include Jet)

$95.99

$

In Stock, only 3 left!

0

137A

Briggs & Stratton 698781

GASKET, Float Bowl

Note: (Nikki)

$9.99

$

In Stock, Qty 20+

0

141A

Briggs & Stratton 698778

KIT, Choke Shaft

Note: (Nikki)

$32.99

$

In Stock, only 1 left!

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut to Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 796491

Line-Fuel

Note: (Formed)(Cut To Required Length)

$19.99

$

In Stock, only 2 left!

0

187B

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(Cut To Required Length)

$24.99

$

Usually ships in 2-12 days

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(Cut To Required Length)

$14.99

$

In Stock, only 1 left!

0

217

Briggs & Stratton 695409

SPRING, Choke Return

$8.99

$

In Stock, only 1 left!

0

276A

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, Qty 15

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 16

0

633

Briggs & Stratton 699813

SEAL, Choke/Throttle Shaft

Note: (Nikki)

$6.99

$

In Stock, only 1 left!

0

633B

Briggs & Stratton 690998

SEAL, Choke/Throttle Shaft

Note: (Nikki)

$7.99

$

In Stock, only 2 left!

0

634A

Briggs & Stratton 698779

Spring/Seal Assembly

Note: (Nikki)

$8.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 3 left!

0

947C

Briggs & Stratton 596038

SOLENOID, Fuel

$79.99

$

In Stock, Qty 18

0

975

Briggs & Stratton 698783

BOWL, Float

Note: (Nikki Without Solenoid)

$30.99

$

Usually ships in 2-12 days

0

975A

Briggs & Stratton 699502

BOWL, Float

Note: (Nikki With Solenoid)

$45.99

$

Usually ships in 2-12 days

0

1091

$9.49

$

In Stock, only 1 left!

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl to Carburetor Body)

$4.49

$

In Stock, Qty 20+

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.49

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0
