21R507-0005-H5 - Briggs & Stratton Vertical Engine Carburetor and Fuel Supply Group Parts Diagram

Vertical Engine

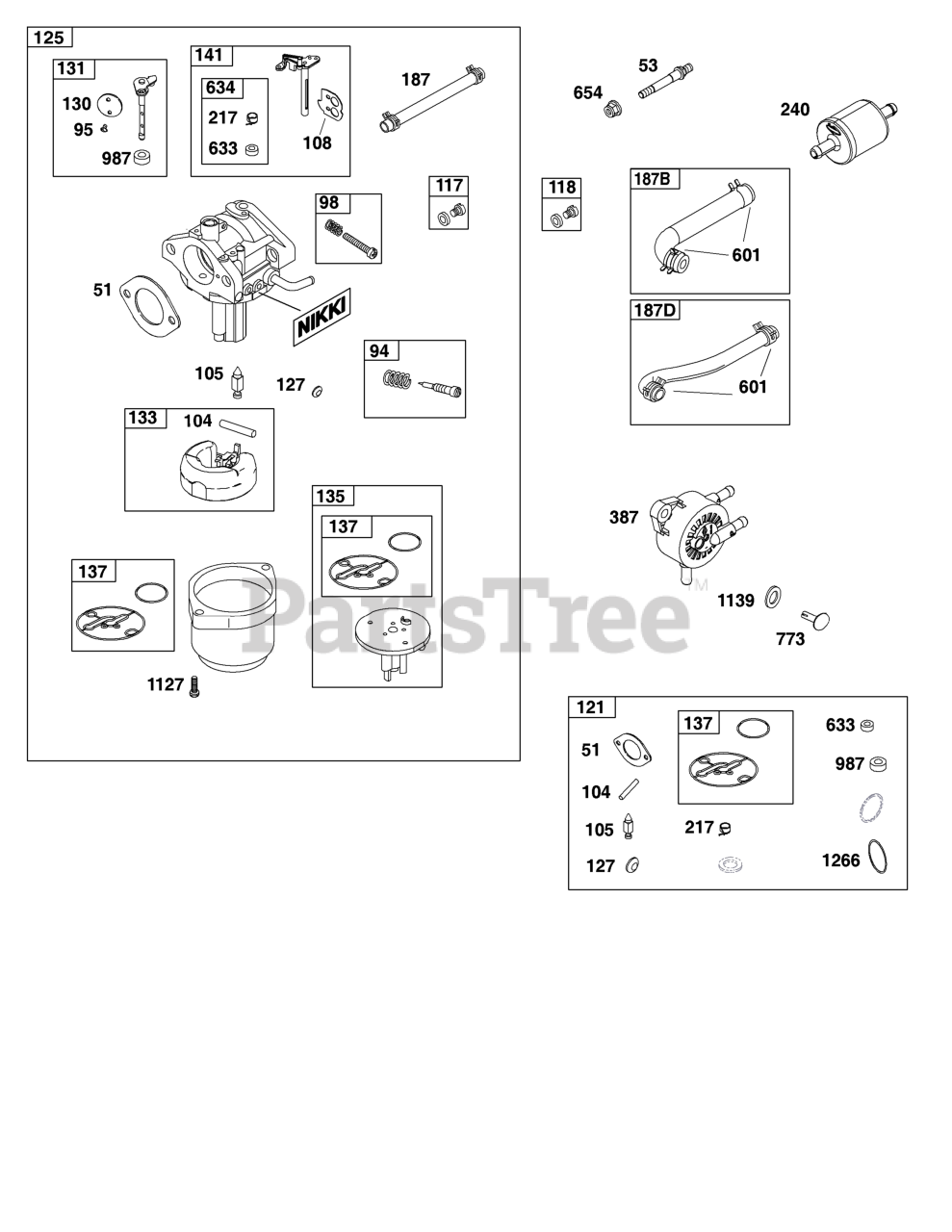

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 591260

STUD

Note: (Carburetor)

$8.49

$

In Stock, only 4 left!

0

94

Briggs & Stratton 793610

KIT, Idle Mixture

$20.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 695408

KIT, Idle Speed

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 696136

VALVE, Float Needle

$15.99

$

In Stock, Qty 20+

0

108

Briggs & Stratton 698773

VALVE, Choke

$8.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 591936

JET, Main

Note: (Standard)

$17.99

$

In Stock, only 3 left!

0

118

Briggs & Stratton 696134

JET, Main

Note: (High Altitude)

$18.99

$

In Stock, Qty 7

0

121

Briggs & Stratton 796184

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$63.99

$

In Stock, Qty 20+

0

125

Briggs & Stratton 593432

CARBURETOR

$137.99

$

In Stock, Qty 20+

0

127

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 2 left!

0

130

Briggs & Stratton 698774

VALVE, Throttle

$8.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 698776

KIT, Throttle Shaft

$39.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, Qty 8

0

135

Briggs & Stratton 796400

TUBE, Fuel Transfer

$91.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 698781

GASKET, Float Bowl

$9.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 698778

KIT, Choke Shaft

$32.99

$

In Stock, only 1 left!

0

187

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

187B

Briggs & Stratton 791805

LINE, Fuel

$24.99

$

In Stock, only 1 left!

0

187D

Briggs & Stratton 791744

LINE, Fuel

$14.99

$

In Stock, only 2 left!

0

217

Briggs & Stratton 695409

SPRING, Choke Return

$8.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 84001895

FILTER, Fuel

$7.99

$

In Stock, Qty 20+

0

387

Briggs & Stratton 597338

PUMP, Fuel

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 699813

SEAL, Choke/Throttle Shaft

$6.99

$

In Stock, only 1 left!

0

634

Briggs & Stratton 698779

SPRING/SEAL ASSEMBLY

$8.99

$

In Stock, only 1 left!

0

654

Briggs & Stratton 690958

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 3 left!

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, only 3 left!

0

987

Briggs & Stratton 690998

SEAL, Choke/Throttle Shaft

$7.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 695407

SCREW

Note: (Float Bowl) (Float Bowl to Carburetor Body)

$4.49

$

In Stock, Qty 20+

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.49

$

Usually ships in 2-12 days

0

1266

SEAL, O-Ring

Note: (Part information located in Blower Housing and Air Cleaner Group.)

$

$

Not available
