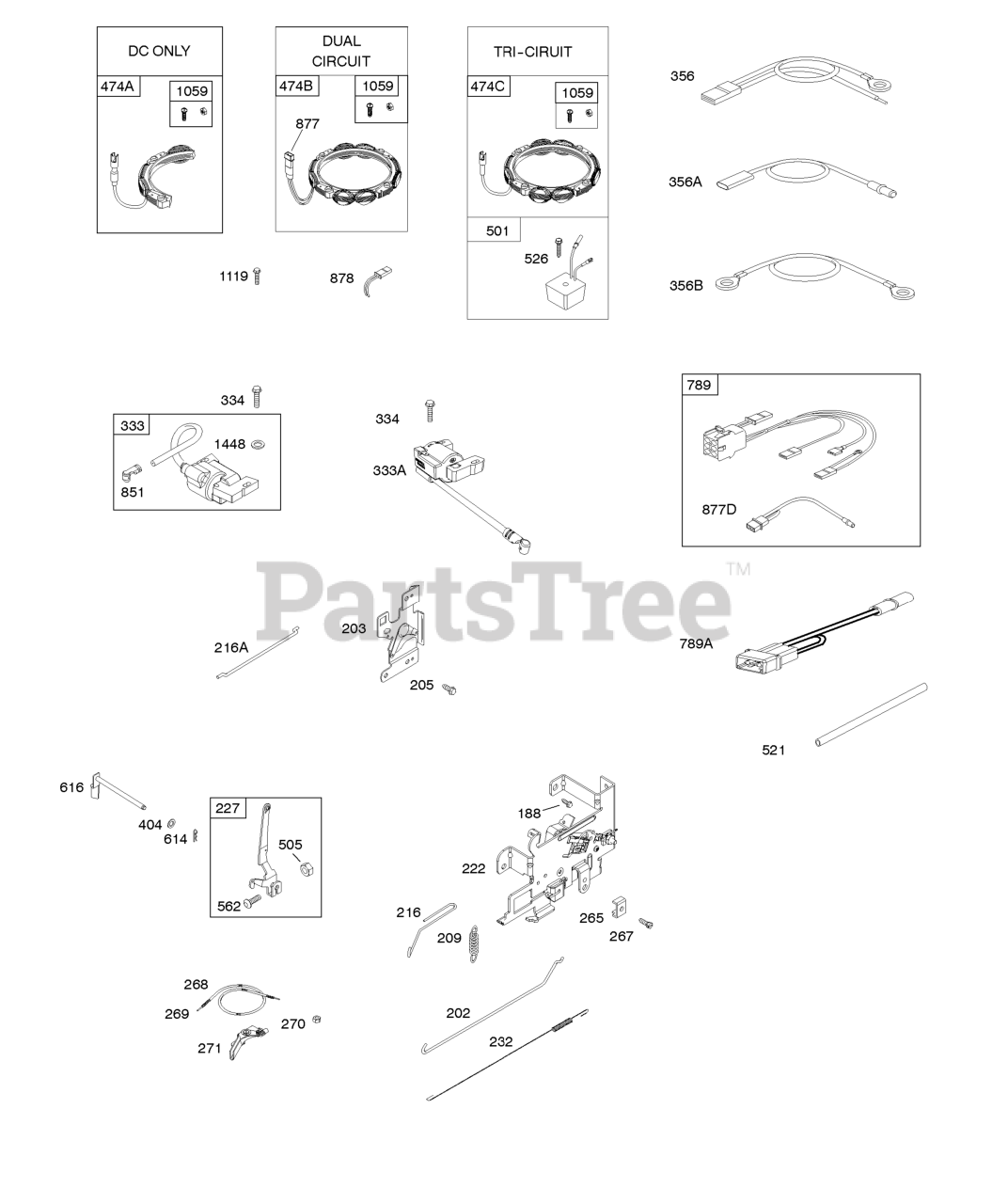

21R502-0002-H1 - Briggs & Stratton Vertical Engine Alternator, Controls, Governor Spring, Ignition Parts Diagram

Vertical Engine

Alternator, Controls, Governor Spring, Ignition Parts Diagram

  • Title

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 9

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$9.49

$

In Stock, Qty 17

0

203

Briggs & Stratton 691381

Crank-Bell

$36.99

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 691693

SCREW

Note: (Bell Crank)

$3.99

$

In Stock, Qty 9

0

209

Briggs & Stratton 792813

SPRING, Governor

$6.99

$

In Stock, only 3 left!

0

216

Briggs & Stratton 691840

LINK, Choke

$8.99

$

In Stock, Qty 20+

0

216A

Briggs & Stratton 691281

Link-Choke

$

$

Not available

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$26.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$11.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 794904

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 799650

Armature-Magneto
(Superseded to 595304)

$45.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

356A

Briggs & Stratton 697397

Wire-Stop

$12.99

$

Usually ships in 2-12 days

0

356B

Briggs & Stratton 697089

WIRE, Stop

$11.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

474A

Briggs & Stratton 696578

Alternator
(Superseded to 592828)

Note: (DC Only)

$124.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 794360

REGULATOR

$64.99

$

In Stock, only 2 left!

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

521

Briggs & Stratton 690581

Shield-Cable

$12.99

$

Usually ships in 2-12 days

0

526

Briggs & Stratton 697088

SCREW

Note: (Regulator)

$4.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 2 left!

0

789

Briggs & Stratton 698329

HARNESS, Wiring

$36.99

$

In Stock, Qty 5

0

789A

Briggs & Stratton 696576

Harness-Wiring

$40.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

Note: (Dual Circuit)

$20.99

$

In Stock, only 1 left!

0

877D

Briggs & Stratton 790544

WIRE/CONNECTOR, Alternator

$43.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 398661

Harness-Alternator

Note: (Dual Circuit)

$34.99

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0

1448

Briggs & Stratton 690260

Washer

Note: (Magneto Armature)

$8.99

$

In Stock, only 2 left!

0
