21R00PC (83096) - Snapper 21" Walk-Behind Mower, 5hp Middle & Lower Handles - Self Propelled Parts Diagram

21" Walk-Behind Mower, 5hp

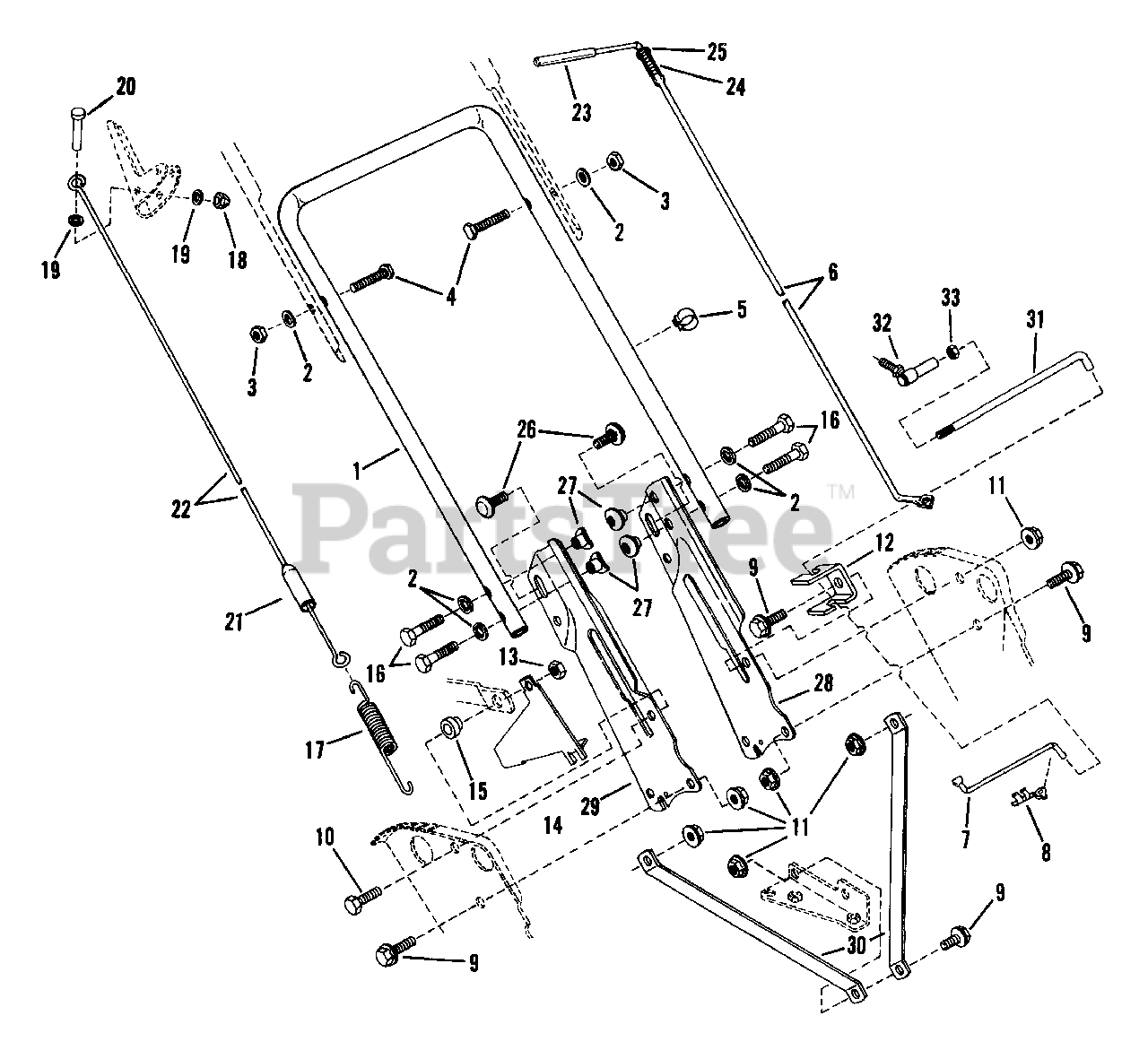

Middle & Lower Handles - Self Propelled Parts Diagram

  • Title

1

Snapper 7039602

HANDLE, Middle

$

$

Not available

2

Snapper 7090053

WASHER, 1/4 Int. Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

3

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7090552

SCREW, 1/4-28 Hex
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7023813

CLIP, Cable
(Superseded to 7023813SM)

Note: Was 14374

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7012317

LEVER, Speed Control

$

$

Not available

7

Snapper 7012255

ROD, Transfer
(Superseded to 7023790YP)

$9.49

$

In Stock, Qty 11

0

8

Snapper 7010937

CLIP, Transfer Rod
(Superseded to 7010937YP)

$7.49

$

In Stock, Qty 5

0

9

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

10

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap
(Superseded to 703301)

$3.99

$

In Stock, only 3 left!

0

11

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

12

Snapper 7032830

ANCHOR, Speed Control
(Superseded to 7032830YP)

Note: Was 31755

$26.99

$

In Stock, only 1 left!

0

13

Snapper 7090222

NUT, 5/16-24 Hex Centerlock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7032408

GUIDE, Lower Belt
(Superseded to 7032408YP)

$26.99

$

Usually ships in 2-12 days

0

15

Snapper 7012114

BUSHING, Differential
(Superseded to 7012114SM)

$4.99

$

In Stock, Qty 9

0

16

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap
(Superseded to 703820)

Note: Was 90548

$3.99

$

In Stock, only 4 left!

0

17

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

Snapper 7023134

KIT, Pull Rod
(Superseded to 7023134YP)

Note: Was 60638 (Includes 18 thru 22)

$18.99

$

In Stock, Qty 14

0

18

Snapper 7014734

PUSH-NUT

$3.49

$

In Stock, Qty 9

0

19

Snapper 7090010

WASHER, #10 Flat
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 16

0

20

Snapper 7014733

PIN, 3/16 x 1 3/4" Clevis
(Superseded to 7014733YP)

$4.49

$

In Stock, only 1 left!

0

21

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

$

$

Not available

22

Snapper 7023134

ROD, Clutch Pull
(Superseded to 7023134YP)

Note: Was 14606

$18.99

$

In Stock, Qty 14

0

23

Snapper 7023801

GRIP
(Superseded to 7023801YP)

Note: Was 11879

$4.49

$

In Stock, Qty 6

0

24

Snapper 7012093

SPRING
(Superseded to 7012093YP)

$4.49

$

In Stock, only 4 left!

0

25

Snapper 7090188

WASHER, 3/8" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

26

Snapper 7090799

BOLT, 5/16-18 x 5/8 Carriage
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 7012322

T-NUT, 1/4-20 Curved Head

$

$

Not available

28

Snapper 7033985

MOUNT, L.H. Handle
(Superseded to 7033985AYP)

Note: Was 39749

$43.99

$

Usually ships in 2-12 days

0

29

Snapper 7033986

MOUNT, R.H. Handle
(Superseded to 7033986AYP)

Note: Was 39750

$36.99

$

In Stock, only 4 left!

0

30

Snapper 7032833

STRAP, Handle
(Superseded to 7032833YP)

Note: Was 37729

$33.99

$

Usually ships in 2-12 days

0

31

Snapper 7015752

LINK, Transfer
(Superseded to 7015752YP)

Note: Used on 88 & Later Models.

$22.99

$

Usually ships in 2-12 days

0

32

Snapper 7015753

JOINT, Ball
(Superseded to 7015753YP)

Note: Used on 88 & Later Models.

$10.99

$

In Stock, only 1 left!

0

33

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: Used on 88 & Later Models.

$3.49

$

Usually ships in 2-12 days

0
