21R00C (83426) - Snapper 21" Walk-Behind Mower, 5hp Upper Handles & Controls - Hand Propelled Parts Diagram

21" Walk-Behind Mower, 5hp

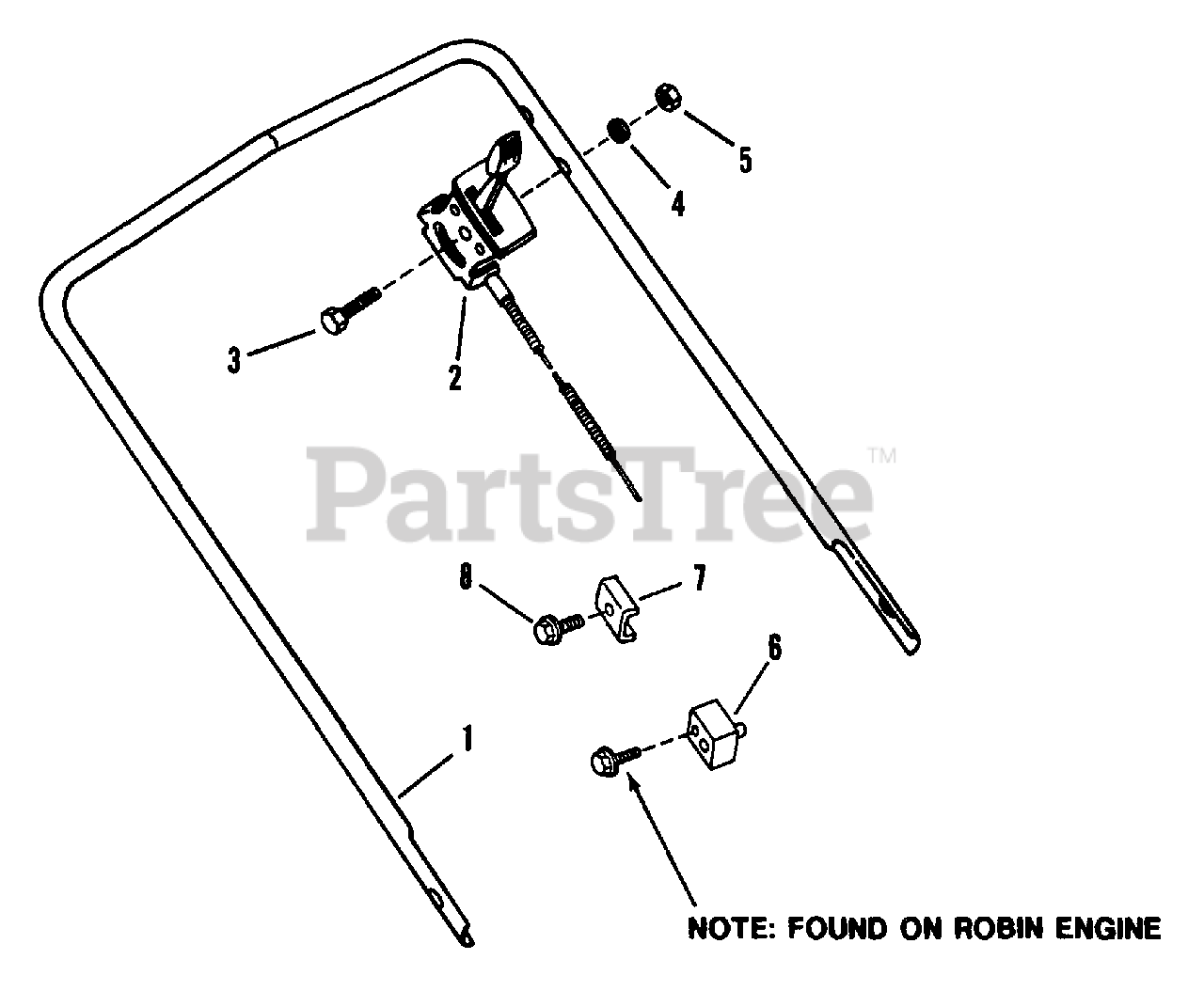

Upper Handles & Controls - Hand Propelled Parts Diagram

  • Title

1

Snapper 7033444

HANDLE, Upper

Note: Was 36031

$

$

Not available

2

Snapper 7018188

THROTTLE, Control

Note: (B & S)('87 Models & Earlier

$

$

Not available

2

Snapper 7018780

THROTTLE, Control
(Superseded to 7018780YP)

Note: (Robin)('87 Models & Earlier)

$

$

Not available

2

Snapper 7018910

THROTTLE, Control
(Superseded to 7018910YP)

Note: (B & S)('88 Models & Later)

$16.99

$

Usually ships in 2-12 days

0

2

Snapper 7018840

THROTTLE, Control

Note: (Robin)('88 Models L Later)

$

$

Not available

3

Snapper 7090111

SCREW, 1/4-28 x 1 3/4" Hex Head Cap

$2.99

$

In Stock, only 3 left!

0

4

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

5

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7023016

SPACER

Note: (5HP Robin Only)

$

$

Currently unavailable

7

Snapper 7023160

CLAMP, Casing
(Superseded to 7023160YP)

Note: (Briggs)

$2.99

$

Usually ships in 2-12 days

0

8

Snapper 7023161

SCREW, #10-18 x 5/8" Self-Tapping

$

$

Currently unavailable
