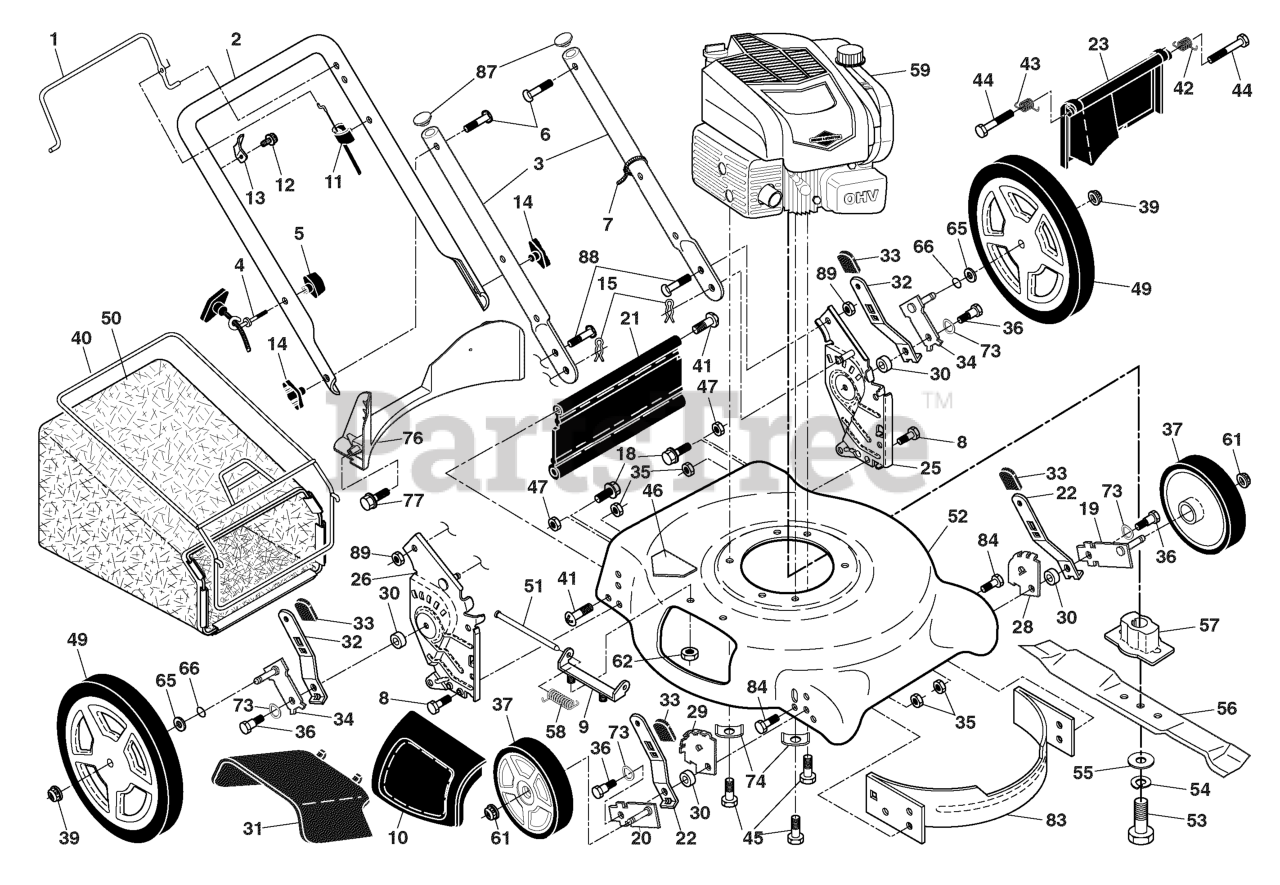

21P68H30 (961370024-00) - Murray 21" Walk-Behind Mower Handles, Deck & Engine Group Parts Diagram

21" Walk-Behind Mower

Handles, Deck & Engine Group Parts Diagram

  • Title

1

Murray 709273

Control Bar

$

$

Not available

2

Murray 709384

Upper Handle

$85.99

$

Usually ships in 2-12 days

0

3

Murray 709389

Bar, Lower Handle

$

$

Not available

4

Murray 581902101

GUIDE, Rope

$

$

Not available

5

Murray 581912601

KNOB, T

$4.99

$

In Stock, only 2 left!

0

6

Murray 709234

Bolt, Carriage 1/4-20 x 1-1/2

$7.49

$

Usually ships in 2-12 days

0

7

Murray 709409

Wire, Tie

$6.99

$

In Stock, only 1 left!

0

8

Murray 709441

Bolt, Hex Head 5/16-18 x 3/4

$4.99

$

Usually ships in 2-12 days

0

9

Murray 709098

Hinge Bracket

$15.99

$

Usually ships in 2-12 days

0

10

Murray 709128

Mulcher Door

$22.99

$

Usually ships in 2-12 days

0

11

Murray 709382

Engine Zone Control Cable

$41.99

$

In Stock, only 2 left!

0

12

Murray 709195

SCREW, Hex Head, Threaded, Rolled, #10-16 x 5/8

$4.49

$

Usually ships in 2-12 days

0

13

Murray 709368

Up-Stop Bracket
(Superseded to 707659)

$9.99

$

In Stock, only 1 left!

0

14

Murray 709219

Knob, Handle

$7.49

$

In Stock, only 2 left!

0

15

Murray 709387

Cotter, Hairpin

$9.99

$

Usually ships in 2-12 days

0

18

Murray 709185

SCREW, Hex Washer Head, 1/4-20 x 3/8

$5.99

$

In Stock, only 1 left!

0

19

Murray 709300

Axle Arm Assembly, Left Front & Right Rear

$

$

Not available

20

Murray 709301

Axle Arm Assembly, Right Front & Left Rear

$16.99

$

Usually ships in 2-12 days

0

21

Murray 709334

Kit, Rear Skirt

$40.99

$

Usually ships in 2-12 days

0

22

Murray 709304

Selector Spring, Front

$12.99

$

Usually ships in 2-12 days

0

23

Murray 708656

Rear Door Assembly

$32.99

$

Usually ships in 2-12 days

0

25

Murray 588912405

HANDLE BRACKET ASSEMBLY, Left Hand

$20.99

$

Usually ships in 3-10 days

0

26

Murray 588912402

HANDLE BRACKET ASSEMBLY, Right Hand

$20.99

$

Usually ships in 3-10 days

0

28

Murray 709316

Wheel Adjusting Bracket, Front, LH

$7.99

$

Usually ships in 2-12 days

0

29

Murray 709317

Wheel Adjusting Bracket, Front, RH

$7.49

$

Usually ships in 2-12 days

0

30

Murray 709305

Spacer

$10.99

$

Usually ships in 2-12 days

0

31

Murray 709129

Discharge Defl ector

$37.99

$

In Stock, only 3 left!

0

32

Murray 708653

Selector Spring, Rear

$8.99

$

Usually ships in 2-12 days

0

33

Murray 709451

Knob, Selector Spring

$9.49

$

Usually ships in 2-12 days

0

34

Murray 588912402

HANDLE BRACKET ASSEMBLY, Right Hand

$20.99

$

Usually ships in 3-10 days

0

35

Murray 709354

NUT, Hex, Flangelock 5/16-18

$8.99

$

Usually ships in 2-12 days

0

36

Murray 709307

BOLT, Shoulder, 5/16-18 x .33

$7.99

$

In Stock, Qty 5

0

37

Murray 588912402

HANDLE BRACKET ASSEMBLY, Right Hand

$20.99

$

Usually ships in 3-10 days

0

39

Murray 409149

Nut, Hex, Flangelock 3/8-16

$4.99

$

In Stock, Qty 20+

0

40

Murray 709326

Frame, Grass Bag

$122.99

$

Usually ships in 2-12 days

0

41

Murray 709275

Screw, Hinge

$8.99

$

Usually ships in 2-12 days

0

42

Murray 709312

Spring, Rear Door, LH

$4.49

$

Usually ships in 2-12 days

0

43

Murray 709313

Spring, Rear Door, RH

$4.49

$

Usually ships in 2-12 days

0

44

Murray 709205

Bolt, Rear Skirt

$4.99

$

Usually ships in 2-12 days

0

45

Murray 709093

Screw, Hex Head, Threaded, Rolled, 3/8-16 x 1-1/5
(Superseded to 709443)

$8.49

$

Usually ships in 2-12 days

0

46

Murray 709203

Decal Deflect WRN. Cutfinger

$8.99

$

Usually ships in 2-12 days

0

47

Murray 705350

Nut, Lock 5/16-18 unc

$5.99

$

Usually ships in 2-12 days

0

49

Murray 708613

Wheel & Tire Assembly, Rear, 8 x 1-1-3/4

$31.99

$

Usually ships in 2-12 days

0

50

Murray 709378

Grass Bag

$173.99

$

Usually ships in 2-12 days

0

51

Murray 709090

Hinge Rod

$13.99

$

Usually ships in 2-12 days

0

52

Murray 709402

Kit, Lawn Mower Housing

$279.99

$

Usually ships in 2-12 days

0

53

Murray 709449

Screw, Machine, Hex Head, 3/8-24 x 1-3/8, Grade 8

$9.99

$

In Stock, only 1 left!

0

54

Murray 705316

Washer, Lock Hvy Hlcl Spr 3/8

$5.49

$

In Stock, only 1 left!

0

55

Murray 709448

WASHER, Hardened

$9.99

$

In Stock, only 4 left!

0

56

Murray 709315

Blade, 21"

$38.99

$

In Stock, only 1 left!

0

57

Murray 709333

Blade Adapter

$21.99

$

Usually ships in 2-12 days

0

58

Murray 709094

Hinge Spring

$8.99

$

In Stock, only 1 left!

0

59

Murray 103M02-0035-H1

ENGINE

Note: (Refer to Note: *)

$

$

Currently unavailable

61

Murray 709321

NUT, Hex, Flangelock 3/8-16

$9.99

$

Usually ships in 2-12 days

0

62

Murray 709432

LOCKNUT, Hex, 1/4-20
(Superseded to 705713)

$5.99

$

Usually ships in 2-12 days

0

65

Murray 709452

WASHER, Flat, 3/8

$6.99

$

Usually ships in 2-12 days

0

66

Murray 709288

O-Ring

$7.49

$

Usually ships in 2-12 days

0

73

Murray 709306

Washer, Curved, Cylindrical

$10.99

$

In Stock, only 1 left!

0

74

Murray 709450

Washer, Special, Engine

$6.99

$

Usually ships in 2-12 days

0

76

Murray 709325

Baffle, Rear

$22.99

$

Usually ships in 2-12 days

0

77

Murray 709159

Screw, Hex Washer Head, #13 x 3/4

$7.99

$

Usually ships in 2-12 days

0

83

Murray 709361

Baffl e, Front

$35.99

$

Usually ships in 2-12 days

0

84

Murray 709147

Screw, Hex Head 5/16-18
(Superseded to 705320)

$10.99

$

In Stock, only 1 left!

0

87

Murray 709379

Plug, Lower Handle Bar
(Superseded to 707666)

$6.49

$

Usually ships in 2-12 days

0

88

Murray 586212501

BOLT, Hex Head

$4.99

$

In Stock, Qty 8

0

89

Murray 709435

Nut, Hex

$9.49

$

Usually ships in 2-12 days

0
