21P62L20X8A (96137001705) - Murray 21" Walk-Behind Mower (2010) Deck Group (96137001705) Parts Diagram

21" Walk-Behind Mower

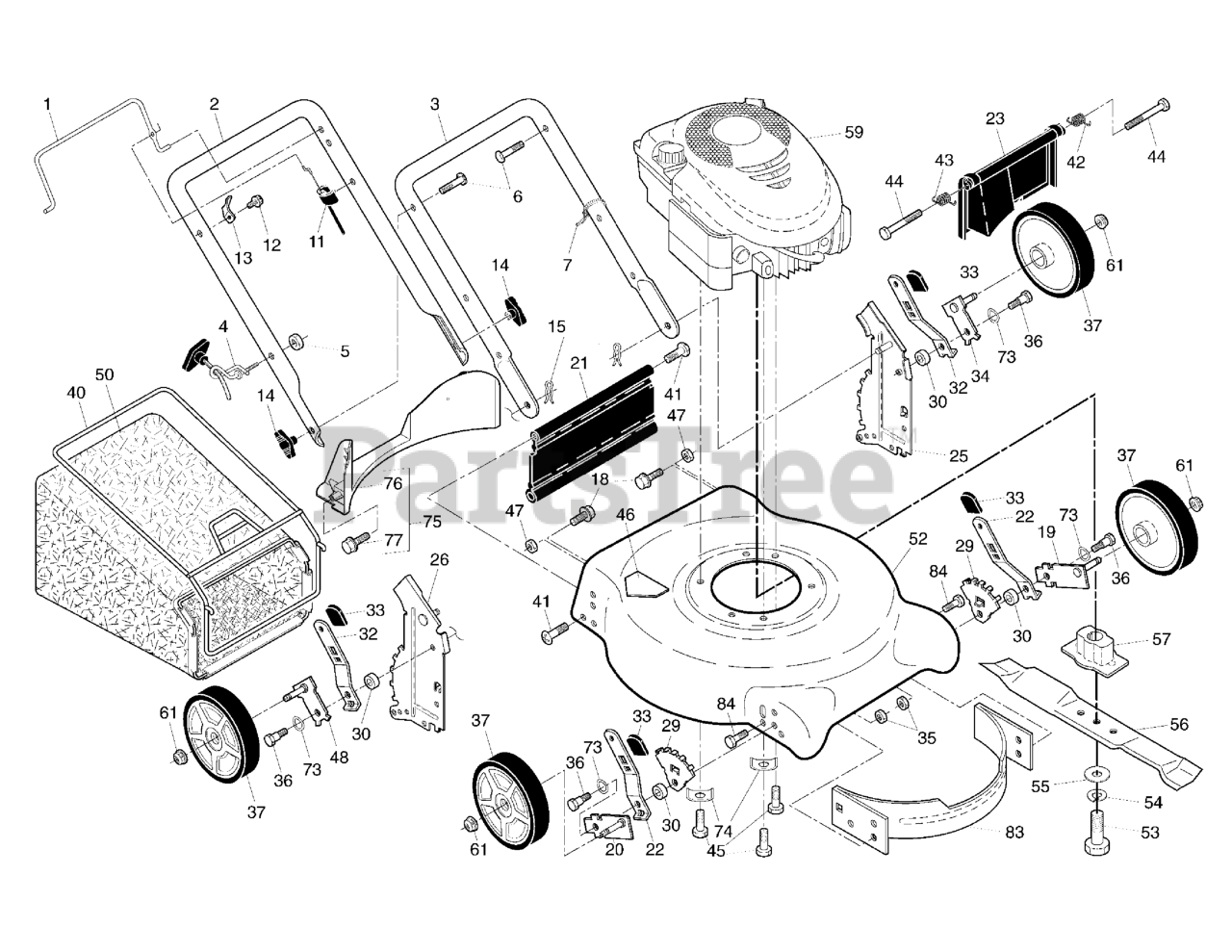

Deck Group (96137001705) Parts Diagram

  • Title

1

Murray 709273

Control Bar

$

$

Not available

2

Murray 709384

Upper Handle

$85.99

$

Usually ships in 2-12 days

0

3

Murray 442254X479

** Lower Handle

Note: (This part is not serviced by Briggs & Stratton)

$

$

Currently unavailable

4

Murray 709279

Rope Guide

$35.99

$

Usually ships in 2-12 days

0

5

Murray 709054

Nut, Hex

$4.99

$

Usually ships in 2-12 days

0

6

Murray 709234

Handle Bolt

$7.49

$

Usually ships in 2-12 days

0

7

Murray 709409

Wire Tie

$6.99

$

In Stock, only 1 left!

0

11

Murray 709382

Engine Zone Control Cable

$41.99

$

In Stock, only 2 left!

0

12

Murray 709195

Hex Washer Head Screw

$4.49

$

Usually ships in 2-12 days

0

13

Murray 709368

Up-Stop Bracket
(Superseded to 707659)

$9.99

$

In Stock, only 1 left!

0

14

Murray 709219

Handle Knob

$7.49

$

In Stock, only 2 left!

0

15

Murray 709387

Hairpin Cotter

$9.99

$

Usually ships in 2-12 days

0

18

Murray 709185

Screw 1/4-20 x 3/8

$5.99

$

In Stock, only 1 left!

0

19

Murray 709300

Axle Arm Assembly, Front, LH

$

$

Not available

20

Murray 709301

Axle Arm Assembly, Front, RH

$16.99

$

Usually ships in 2-12 days

0

21

Murray 709334

Kit, Rear Skirt

$40.99

$

Usually ships in 2-12 days

0

22

Murray 709304

Selector Spring, Front

$12.99

$

Usually ships in 2-12 days

0

23

Murray 709308

Rear Door Assembly

$35.99

$

Usually ships in 2-12 days

0

25

Murray 708664

Handle Bracket Assembly, LH
(Superseded to 708529)

$31.99

$

Usually ships in 2-12 days

0

26

Murray 708665

Handle Bracket Assembly, RH
(Superseded to 708530)

$28.99

$

Usually ships in 2-12 days

0

29

Murray 708661

Wheel Adjusting Bracket, Front

$8.99

$

Usually ships in 2-12 days

0

30

Murray 709305

Spacer

$10.99

$

Usually ships in 2-12 days

0

32

Murray 708653

Selector Spring, Rear

$8.99

$

Usually ships in 2-12 days

0

33

Murray 709451

Selector Knob

$9.49

$

Usually ships in 2-12 days

0

34

Murray 708650

Axle Arm Assembly, Rear
(Superseded to 709789)

$11.99

$

Usually ships in 2-12 days

0

35

Murray 709354

Locknut, Hex

$8.99

$

Usually ships in 2-12 days

0

36

Murray 709307

Shoulder Bolt 5/16-18

$7.99

$

In Stock, Qty 5

0

37

Murray 708613

Wheel & Tire Assembly

$31.99

$

Usually ships in 2-12 days

0

40

Murray 709326

Frame, Grass Bag

$122.99

$

Usually ships in 2-12 days

0

41

Murray 708006

Hinge Screw

$9.49

$

Usually ships in 2-12 days

0

42

Murray 709312

Spring, Rear Door, LH

$4.49

$

Usually ships in 2-12 days

0

43

Murray 709313

Spring, Rear Door, RH

$4.49

$

Usually ships in 2-12 days

0

44

Murray 709205

Bolt, Rear Skirt

$4.99

$

Usually ships in 2-12 days

0

45

Murray 709093

Hex Head Thread Rolling Screw 3/8-16 x 1
(Superseded to 709443)

$8.49

$

Usually ships in 2-12 days

0

46

Murray 708373

Danger Decal
(Superseded to 709792)

$10.99

$

Usually ships in 2-12 days

0

47

Murray 705355

Nut, Hex 5/16-18

$12.99

$

In Stock, only 1 left!

0

50

Murray 709378

Grass Bag

$173.99

$

Usually ships in 2-12 days

0

52

Murray 708460

Housing Assembly (Includes Key Number 46)

$205.99

$

Usually ships in 2-12 days

0

53

Murray 709449

Hex Head Screw 3/8-24 x 1-3/8 Grade 8

$9.99

$

In Stock, only 1 left!

0

54

Murray 705316

Helical Lockwasher

$5.49

$

In Stock, only 1 left!

0

55

Murray 709448

Hardened Washer

$9.99

$

In Stock, only 4 left!

0

56

Murray 709315

21" Blade

$38.99

$

In Stock, only 1 left!

0

57

Murray 709333

Blade Adapter

$21.99

$

Usually ships in 2-12 days

0

59

Murray 122T02-5935-H1

* ENGINE, Briggs & Stratton

Note: ( Engine Model: 122T02-5935-H1 )

$

$

Currently unavailable

61

Murray 709321

Locknut, Hex, Flanged

$9.99

$

Usually ships in 2-12 days

0

73

Murray 709306

Washer, Flat

$10.99

$

In Stock, only 1 left!

0

74

Murray 709450

Washer, Special, Engine

$6.99

$

Usually ships in 2-12 days

0

75

Murray 709327

Kit, Rear Baffl e (Includes 3 Screws)

$71.99

$

Usually ships in 2-12 days

0

76

Murray 709325

Baffle, Rear

$22.99

$

Usually ships in 2-12 days

0

77

Murray 709159

Screw, Rear Baffl e

$7.99

$

Usually ships in 2-12 days

0

83

Murray 709361

Baffl e, Front

$35.99

$

Usually ships in 2-12 days

0

84

Murray 709147

Screw, Hex Head 5/16-18
(Superseded to 705320)

$10.99

$

In Stock, only 1 left!

0

--

Murray 708374

Warning Decal (not shown)

$13.99

$

Usually ships in 2-12 days

0

--

Murray 709266

Operator's Manual, English

$9.49

$

Usually ships in 2-12 days

0

--

Murray 709269

Operator's Manual, Spanish

$9.49

$

Usually ships in 2-12 days

0
