21P62H30X8A (96137001806) - Murray 21" Walk-Behind Mower (2010) Deck Group (96137001806) Parts Diagram

21" Walk-Behind Mower

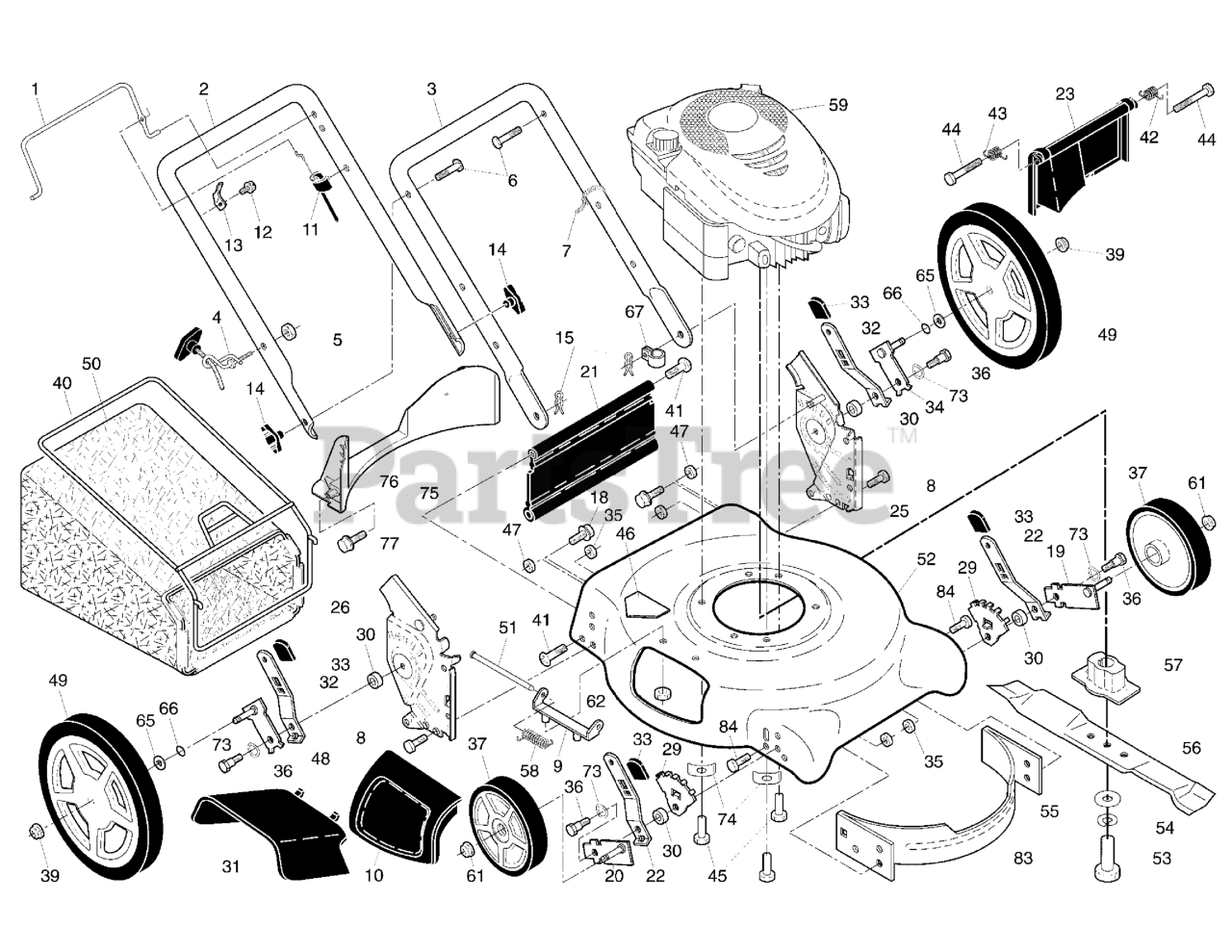

Deck Group (96137001806) Parts Diagram

  • Title

1

Murray 709273

Control Bar

$

$

Not available

2

Murray 709384

Upper Handle

$85.99

$

Usually ships in 2-12 days

0

3

Murray 708680

Lower Handle

$185.99

$

Usually ships in 2-12 days

0

4

Murray 709279

Rope Guide

$35.99

$

Usually ships in 2-12 days

0

5

Murray 709054

Nut, Hex

$4.99

$

Usually ships in 2-12 days

0

6

Murray 709234

Handle Bolt

$7.49

$

Usually ships in 2-12 days

0

7

Murray 709409

Wire Tie

$6.99

$

In Stock, only 1 left!

0

8

Murray 709441

Bolt, Hex Head 5/16-18 x 3/4

$4.99

$

Usually ships in 2-12 days

0

9

Murray 709098

Hinge Bracket

$15.99

$

Usually ships in 2-12 days

0

10

Murray 709128

Mulcher Door

$22.99

$

Usually ships in 2-12 days

0

11

Murray 709382

Engine Zone Control Cable

$41.99

$

In Stock, only 1 left!

0

12

Murray 709195

Hex Washer Head Screw

$4.49

$

Usually ships in 2-12 days

0

13

Murray 709368

Up-Stop Bracket
(Superseded to 707659)

$9.99

$

In Stock, only 2 left!

0

14

Murray 709219

Handle Knob

$7.49

$

In Stock, only 2 left!

0

15

Murray 709387

Hairpin Cotter

$9.99

$

Usually ships in 2-12 days

0

18

Murray 709185

Screw 1/4-20 x 3/8

$5.99

$

In Stock, only 1 left!

0

19

Murray 709300

Axle Arm Assembly, Front, LH

$

$

Not available

20

Murray 709301

Axle Arm Assembly, Front, RH

$16.99

$

Usually ships in 2-12 days

0

21

Murray 709334

Kit, Rear Skirt

$40.99

$

Usually ships in 2-12 days

0

22

Murray 709304

Selector Spring, Front

$12.99

$

Usually ships in 2-12 days

0

23

Murray 709308

Rear Door Assembly

$35.99

$

Usually ships in 2-12 days

0

25

Murray 709390

Handle Bracket Assembly, LH

$35.99

$

Usually ships in 2-12 days

0

26

Murray 410386X428

Handle Bracket Assembly, RH

Note: (This part is not serviced by Briggs & Stratton.)

$8.99

$

Usually ships in 3-10 days

0

29

Murray 708661

Wheel Adjusting Bracket

$8.99

$

Usually ships in 2-12 days

0

30

Murray 709305

Spacer

$10.99

$

Usually ships in 2-12 days

0

31

Murray 709129

Discharge Defl ector

$37.99

$

In Stock, only 4 left!

0

32

Murray 709381

Selector Spring, Rear

$9.49

$

Usually ships in 2-12 days

0

33

Murray 709451

Selector Knob

$9.49

$

Usually ships in 2-12 days

0

34

Murray 709302

Axle Arm Assembly, Rear, LH

$16.99

$

Usually ships in 2-12 days

0

35

Murray 709354

Locknut, Hex 5/16-18

$8.99

$

Usually ships in 2-12 days

0

36

Murray 709307

Shoulder Bolt 5/16-18

$7.99

$

In Stock, Qty 5

0

37

Murray 708613

Wheel & Tire Assembly, Front

$31.99

$

Usually ships in 2-12 days

0

39

Murray 409149

Flanged Locknut, Hex

Note: (This part is not serviced by Briggs & Stratton.)

$4.99

$

In Stock, Qty 20+

0

40

Murray 709326

Frame, Grassbag

$122.99

$

Usually ships in 2-12 days

0

41

Murray 708006

Hinge Screw

$9.49

$

Usually ships in 2-12 days

0

42

Murray 709312

Spring, Rear Door, LH

$4.49

$

Usually ships in 2-12 days

0

43

Murray 709313

Spring, Rear Door, RH

$4.49

$

Usually ships in 2-12 days

0

44

Murray 709205

Bolt, Rear Door

$4.99

$

Usually ships in 2-12 days

0

45

Murray 709093

Screw, Hex Head, Threaded, Rolled, 3/8-16 x 1
(Superseded to 709443)

$8.49

$

Usually ships in 2-12 days

0

46

Murray 708373

Danger Decal
(Superseded to 709792)

$10.99

$

Usually ships in 2-12 days

0

47

Murray 709445

Nut, Hex
(Superseded to 709354)

$8.99

$

Usually ships in 2-12 days

0

48

Murray 709303

Axle Arm Assembly, Rear, RH

$13.99

$

Usually ships in 2-12 days

0

49

Murray 709395

Wheel & Tire Assembly, Rear

$63.99

$

In Stock, only 1 left!

0

50

Murray 709378

Grassbag

$173.99

$

Usually ships in 2-12 days

0

51

Murray 709090

Hinge Rod

$13.99

$

Usually ships in 2-12 days

0

52

Murray 442053

Kit, Lawn Mower Housing

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Currently unavailable

53

Murray 709449

Screw, Hex Head, 3/8-24 x 1-3/8, G8

$9.99

$

In Stock, only 1 left!

0

54

Murray 705316

Helical Lockwasher

Note: (Includes Ref. No. 46)

$5.49

$

In Stock, only 1 left!

0

55

Murray 709448

Hardened Washer

$9.99

$

In Stock, only 4 left!

0

56

Murray 709315

21" Blade

$38.99

$

In Stock, only 1 left!

0

57

Murray 709333

Blade Adapter

$21.99

$

Usually ships in 2-12 days

0

58

Murray 709094

Hinge Spring

$8.99

$

In Stock, only 1 left!

0

59

Murray 122T02-5935-H1

* Engine, Briggs & Stratton

Note: ( Engine Model: 122T02-5935-H1 )

$

$

Currently unavailable

61

Murray 709321

Nut, Hex

$9.99

$

Usually ships in 2-12 days

0

62

Murray 709432

Locknut, Hex 1/4-20
(Superseded to 705713)

$5.99

$

Usually ships in 2-12 days

0

65

Murray 709452

Washer, Flat

$6.99

$

Usually ships in 2-12 days

0

66

Murray 709288

O-Ring

$7.49

$

Usually ships in 2-12 days

0

67

Murray 709289

Clip, Cable

$7.49

$

Usually ships in 2-12 days

0

73

Murray 709306

Washer, Curved

$10.99

$

In Stock, only 1 left!

0

74

Murray 709450

Washer, Special, Engine

$6.99

$

Usually ships in 2-12 days

0

75

Murray 709327

Kit, Rear Baffl e

$71.99

$

Usually ships in 2-12 days

0

76

Murray 709325

Baffle, Rear

$22.99

$

Usually ships in 2-12 days

0

77

Murray 709159

Screw, Rear Baffl e

$7.99

$

Usually ships in 2-12 days

0

83

Murray 709361

Baffle, Front

$35.99

$

Usually ships in 2-12 days

0

84

Murray 709147

Screw, Front Baffle
(Superseded to 705320)

$10.99

$

In Stock, only 1 left!

0

--

Murray 708374

Warning Decal (not shown)

$13.99

$

Usually ships in 2-12 days

0

--

Murray 709266

Operator's Manual, English

$9.49

$

Usually ships in 2-12 days

0

--

Murray 709269

Operator's Manual, Spanish

$9.49

$

Usually ships in 2-12 days

0
