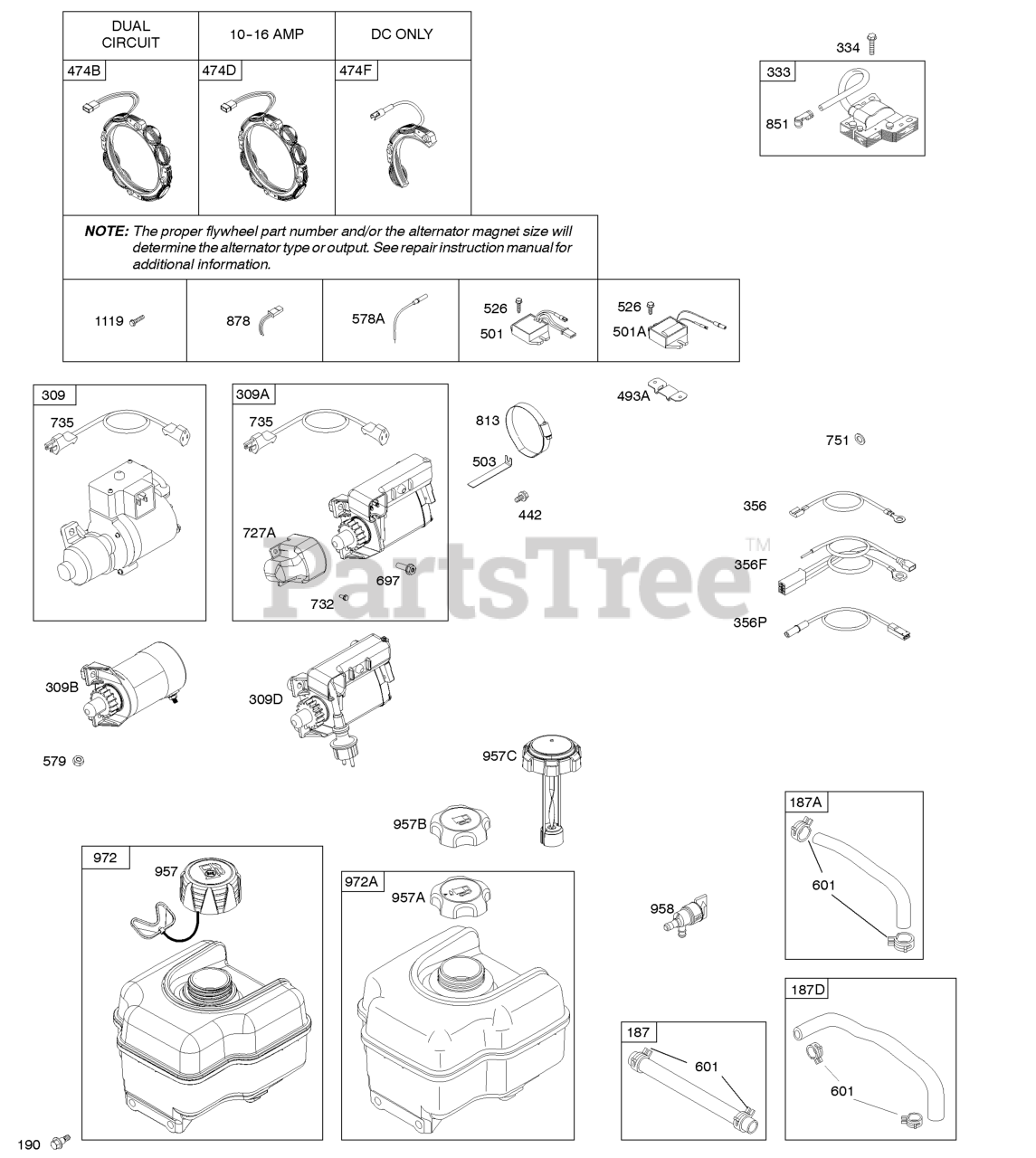

21P237-0119-E1 - Briggs & Stratton Horizontal Engine Alternator, Electric Starter, Fuel Supply, Ignition Parts Diagram

Horizontal Engine

Alternator, Electric Starter, Fuel Supply, Ignition Parts Diagram

  • Title

187

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut to Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 791869

Line-Fuel

$

$

Not available

187D

Briggs & Stratton 791879

Line-Fuel

$17.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 699220

Screw
(Superseded to 597133)

Note: (Fuel Tank)

$4.99

$

In Stock, Qty 11

0

309B

Briggs & Stratton 698162

Motor-Starter

$248.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 699477

SCREW

Note: (Magneto Armature)

$3.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 695630

WIRE, Stop

$7.99

$

Usually ships in 2-12 days

0

356F

Briggs & Stratton 793206

Wire-Stop

$8.49

$

Usually ships in 2-12 days

0

356P

Briggs & Stratton 795849

Wire-Stop

$11.99

$

In Stock, only 1 left!

0

442

Briggs & Stratton 790282

Screw

Note: (Starter Strap)

$3.99

$

Usually ships in 2-12 days

0

474D

Briggs & Stratton 695466

Alternator

Note: (10-16 Amp Regulated)

$119.99

$

Usually ships in 2-12 days

0

493A

Briggs & Stratton 691177

BRACKET, Mounting

$24.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 845907

REGULATOR

$61.99

$

In Stock, Qty 20+

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

526

Briggs & Stratton 690297

Screw

Note: (Regulator)

$3.49

$

In Stock, Qty 12

0

578A

Briggs & Stratton 792576

Wire Assembly

$8.49

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

697

Briggs & Stratton 795012

Screw

Note: (Drive Cap)

$5.49

$

In Stock, only 3 left!

0

727A

Briggs & Stratton 697465

COVER, Starter Drive

$7.99

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 699200

SCREW

Note: (Starter Drive Cover)

$3.99

$

Usually ships in 2-12 days

0

735

Briggs & Stratton 795901

Cord-Starter

$45.99

$

In Stock, only 1 left!

0

751

Briggs & Stratton 794839

Washer

Note: (Stop Wire)

$5.49

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 690635

CLAMP

$24.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

878

Briggs & Stratton 398661

Harness-Alternator

$34.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 799719

CAP, Fuel Tank

Note: (Plastic)

$40.99

$

In Stock, only 3 left!

0

957A

Briggs & Stratton 792647

Cap-Fuel Tank
(Superseded to 795027)

Note: (Plastic) (Fresh Start)

$10.99

$

In Stock, Qty 20+

0

957C

Briggs & Stratton 698109

Cap-Fuel Tank

Note: (Plastic)

$

$

Not available

957B

Briggs & Stratton 795027

Cap-Fuel Tank

Note: (Plastic)

$10.99

$

In Stock, Qty 20+

0

958

Briggs & Stratton 698180

Valve-Fuel Shut Off

Note: (Plastic)

$11.99

$

In Stock, Qty 20+

0

972

Briggs & Stratton 799863

Tank-Fuel

Note: (Plastic)

$89.99

$

In Stock, Qty 10

0

972A

Tank-Fuel

Note: (Plastic) (No Longer Available)(For Replacement, Order Reference 972)

$

$

Not available

1119

Briggs & Stratton 699772

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0
