21D-655A766 - Troy-Bilt Pro-Line CRT Rear-Tine Tiller (2019) Drive Parts Diagram

Pro-Line CRT Rear-Tine Tiller

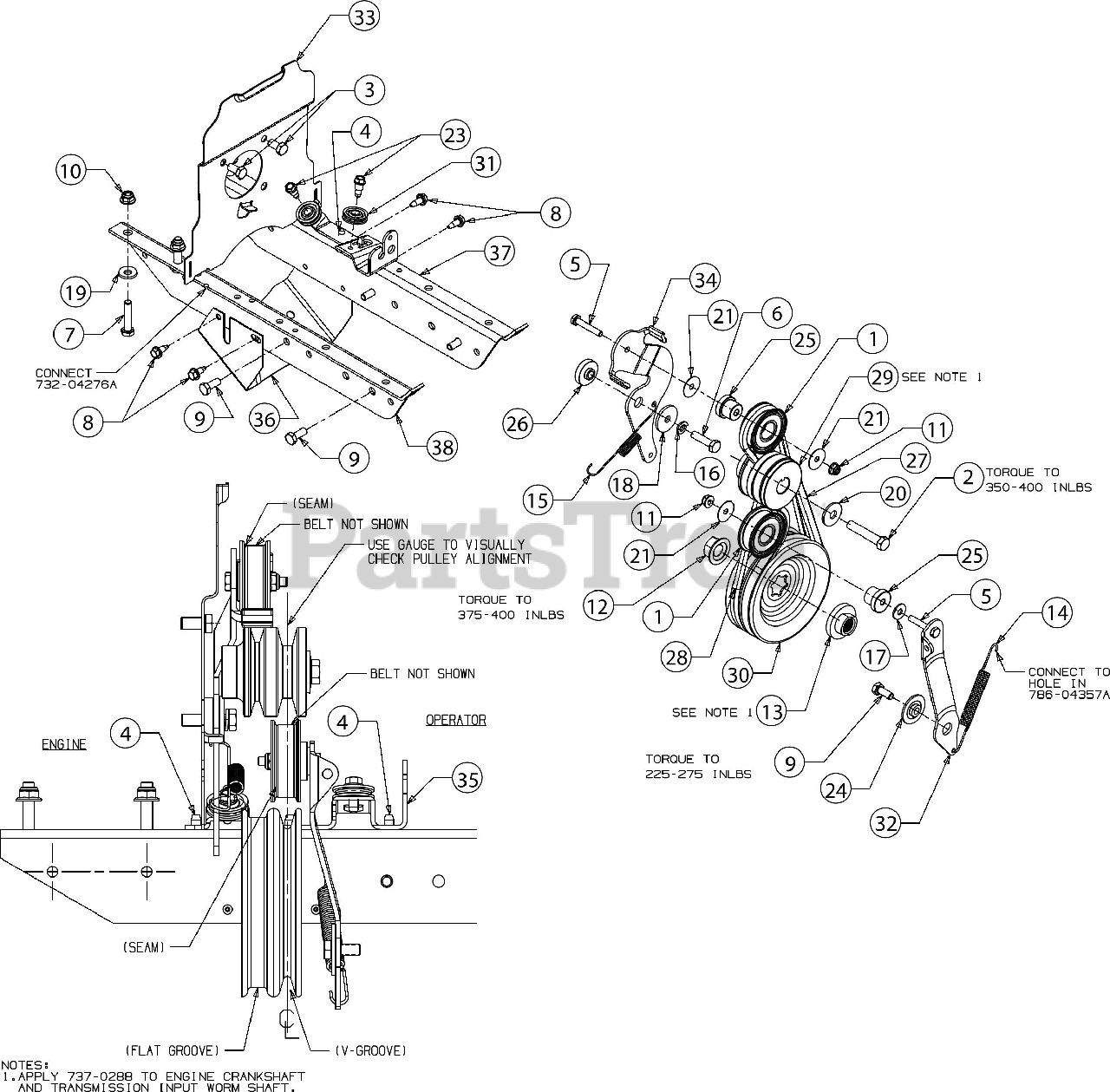

Drive Parts Diagram

  • Title
1

Troy-Bilt 684-04168

IDLER PULLEY ASSEMBLY

$38.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 790-00230

BEARING SLEEVE

Note: Not Shown

$7.49

$

Usually ships in 3-6 days

0

1

Troy-Bilt 941-0919B

BALL BEARING

$21.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0151

HEX SCREW 3/8-24 X2.00

$7.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 710-0170

HEX SCREW 5/16-24 x .62

$6.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0606

SCREW 1/4-20 x 1.50 GR.5

$5.49

$

In Stock, Qty 10

0

6

Troy-Bilt 710-0672

SCREW 5/16-24 x 1.25 GR5

$4.49

$

In Stock, Qty 18

0

7

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0896

SCREW 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-1880

SCREW 5/16-18 x .750

$4.99

$

In Stock, Qty 11

0

10

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-0700

FLANGE NUT W/HUB

$10.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 718-04407

PULLEY HUB

$12.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 732-04085

RETURN SPRING

$14.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 732-04276A

EXTENSION SPRING

$9.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 936-0119

LOCK WASHER 5/16

$4.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 736-0173

FLAT WASHER .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-0343

WASHER-5/16 x 1.25X 1.27

$4.49

$

In Stock, Qty 7

0

19

Troy-Bilt 736-04193

BELLVILLE WASHER .827 x .331 x .098

$6.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 936-0452

BELL WASHER
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

21

Troy-Bilt 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 9

0

22

GREASE (NOT SERVICEABLE)

$

$

Not available

23

Troy-Bilt 738-04425

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 748-04087A

PIVOT IDLER SPACER

$6.49

$

In Stock, Qty 9

0

25

Troy-Bilt 750-04571

SHOULDER SPACER

$6.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 750-04907

PIVOT IDLER SPACER

$6.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 954-04090

V-BELT FWD DRIVE 4L x 25.375

$20.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 954-04091

V-BELT REV DRIVE 3L x 29.125

$18.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 756-04198A

ENGINE PULLEY

$55.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 756-04355

TRANSMISSION PULLEY

$55.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 756-0625

CABLE GUIDE ROLLER

$9.49

$

In Stock, Qty 14

0

32

Troy-Bilt 786-04312

FORWARD IDLER BRACKET

$13.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 786-04343

REVERSE IDLER BRACKET

Note: (Choose Color When Ordering)

Variations

Troy-Bilt 786-04343-0638

BRACKET-IDLER REVE - MTD/TROY-BILT RED (0638)

$19.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04343-0721

BRACKET-IDLER REVE - SEARS RED (0721)

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04343-4021

PLATE-BELT CVR MTG - CUB YELLOW 2 (4021)

$16.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04343-4044

BRACKET-IDLER REVE - CRAFTSMAN RED (4044)

$18.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 786-04346

REVERSE IDLER BRACKET

$10.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 786-04357A

CABLE BRACKET ROLLER

Note: (Choose Color When Ordering)

Variations

Troy-Bilt 786-04357A-0638

BRACKET-CABLE ROLLER - MTD/TROY-BILT RED (0638)

$11.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04357A-4021

BRACKET-CABLE ROLLER - CUB YELLOW 2 (4021)

$9.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04357A-4044

BRACKET-CABLE ROLLER - CRAFTSMAN RED (4044)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 786-04371

PULLEY SHIELD

Note: (Choose Color When Ordering)

Variations

Troy-Bilt 786-04371-0638

SHIELD-PULLEY - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04371-4021

SHIELD-PULLEY - CUB YELLOW 2 (4021)

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04371-0721

SHIELD-PULLEY - SEARS RED (0721)

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04371-4044

SHIELD-PULLEY - CRAFTSMAN RED (4044)

$18.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 786-04418B

FRAME-MOUNT (RH)
(Superseded to 986-04418B)

Note: (Choose Color When Ordering)

Variations

Troy-Bilt 786-04418B-0638

FRAME-MOUNT RH - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04418B-4021

FRAME-MOUNT RH - CUB YELLOW 2 (4021)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 786-04419B

FRAME-MOUNT (LH)

Note: (Choose Color When Ordering)

Variations

Troy-Bilt 786-04419B-0638

FRAME-MOUNT LH - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04419B-4021

FRAME-MOUNT LH - CUB YELLOW 2 (4021)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0
