21D-655A766 - Troy-Bilt Pro-Line CRT Rear-Tine Tiller (2013) Drive Assembly Parts Diagram

Pro-Line CRT Rear-Tine Tiller

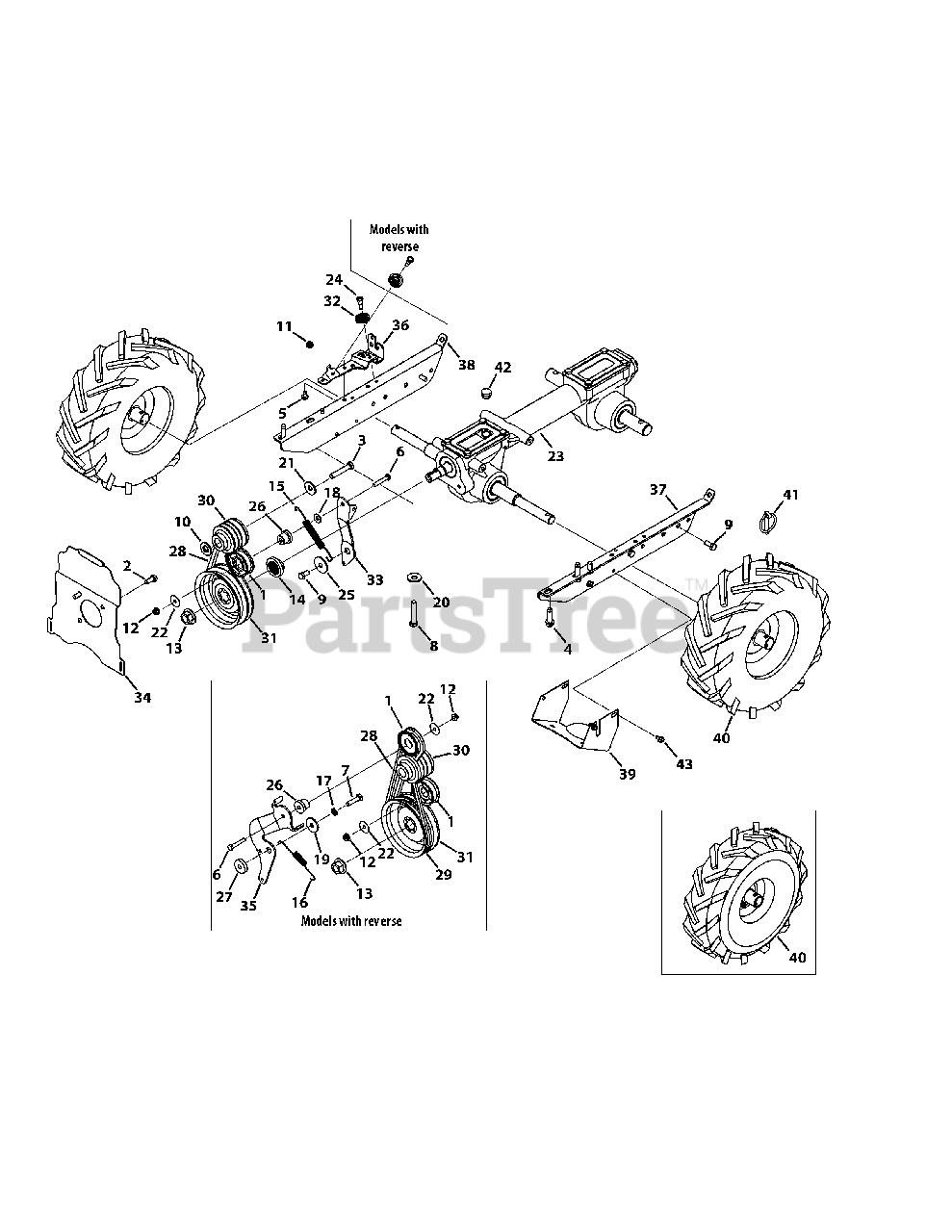

Drive Assembly Parts Diagram

  • Title
1

Troy-Bilt 684-04168

Idler Pulley Assembly, 1917 OD

$38.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 710-0170

Hex Head Screw, 5/16-24 x 625

$6.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-0151

Hex Head Screw, 3/8-24 x 200

$7.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 710-0502A

Screw, 3/8-16 x 1250

$6.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 710-0599

Screw, 1/4-20 x 0500

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0606

Hex Head Screw, 1/4-20 x 150

$5.49

$

In Stock, Qty 10

0

7

Troy-Bilt 710-0672

Hex Head Screw, 5/16-24 x 125

$4.49

$

In Stock, Qty 18

0

8

Troy-Bilt 710-0805

Hex Head Screw, 5/16-18 x 150, B&S
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-1880

Hex Head Screw, 5/16-18 x 75, Patch

$4.99

$

In Stock, Qty 11

0

10

Troy-Bilt 736-0315

Washer, Flat, 760 x 150 x 120

$6.99

$

In Stock, Qty 6

0

11

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18, B&S

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-0700

Flange Nut, 9/16-18

$10.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 718-04407

Pulley Hub, 5/8 SPLINE

$12.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 732-04085

Extension Spring, 480 OD x 500 LG

$14.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 732-04276A

Extension Spring, LT5 PTO

$9.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 936-0119

Washer, Lock, 5/16

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-0173

Washer, Flat, 28 x 74 x 063

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0343

Washer, Flat, 330 x 125 x 120

$4.49

$

In Stock, Qty 7

0

20

Troy-Bilt 736-04193

Washer, 396 x 1140 x 095, B&S

$6.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 936-0452

Washer, Bell, 396 x 1140 x 095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

22

Troy-Bilt 736-3092

Washer, Flat, 265 x 10 x 030

$3.99

$

In Stock, Qty 9

0

23

Troy-Bilt 753-06042A

Transmission Assembly

$995.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 738-04425

Screw, Shoulder, 1/4-28 x 342 x 335

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 748-04087A

Forward Idler Pivot Spacer

$6.49

$

In Stock, Qty 9

0

26

Troy-Bilt 750-04571

Spacer, Shoulder, 260 x 785 x 538

$6.99

$

In Stock, only 3 left!

0

27

Troy-Bilt 750-04907

Reverse Idler Pivot Spacer

$6.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 954-04090

V Belt, 4L x 25375 LG

$20.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 954-04091

V Belt, 3L x 29125 LG

$18.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 756-04198A

Engine Pulley, 3L & 4L, Honda

$55.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 756-04355

Transmission Pulley

$55.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

33

Troy-Bilt 786-04312

Forward Idler Bracket

$13.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 786-04343-0638

Cover Mounting Plate

$19.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 786-04346

Reverse Idler Bracket

$10.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 786-04357-0638

Pulley Mounting Bracket
(Superseded to 786-04357A-0638)

$11.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 786-04419B-0638

LH Mount Frame
(Superseded to 986-04419B-0638)

$20.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 786-04418B-0638

RH Mount Frame
(Superseded to 986-04418B-0638)

$20.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 786-04371

Pulley Shield

Variations

Troy-Bilt 786-04371-0638

SHIELD-PULLEY - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04371-4021

SHIELD-PULLEY - CUB YELLOW 2 (4021)

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04371-0721

SHIELD-PULLEY - SEARS RED (0721)

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04371-4044

SHIELD-PULLEY - CRAFTSMAN RED (4044)

$18.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 934-04232

Wheel, 13 x 5 x 6

$172.99

$

In Stock, only 3 left!

0

41

Troy-Bilt 714-0143A

Klik Pin, 25 DIA x 156

$6.49

$

In Stock, Qty 7

0

42

$5.49

$

In Stock, Qty 11

0

43

Troy-Bilt 710-0896

Self Tapping Screw, 1/4-14 x 625

$4.49

$

In Stock, Qty 20+

0
