21D-64M8766 - Troy-Bilt Bronco CRT Tiller (2019) Handle Parts Diagram

Bronco CRT Tiller

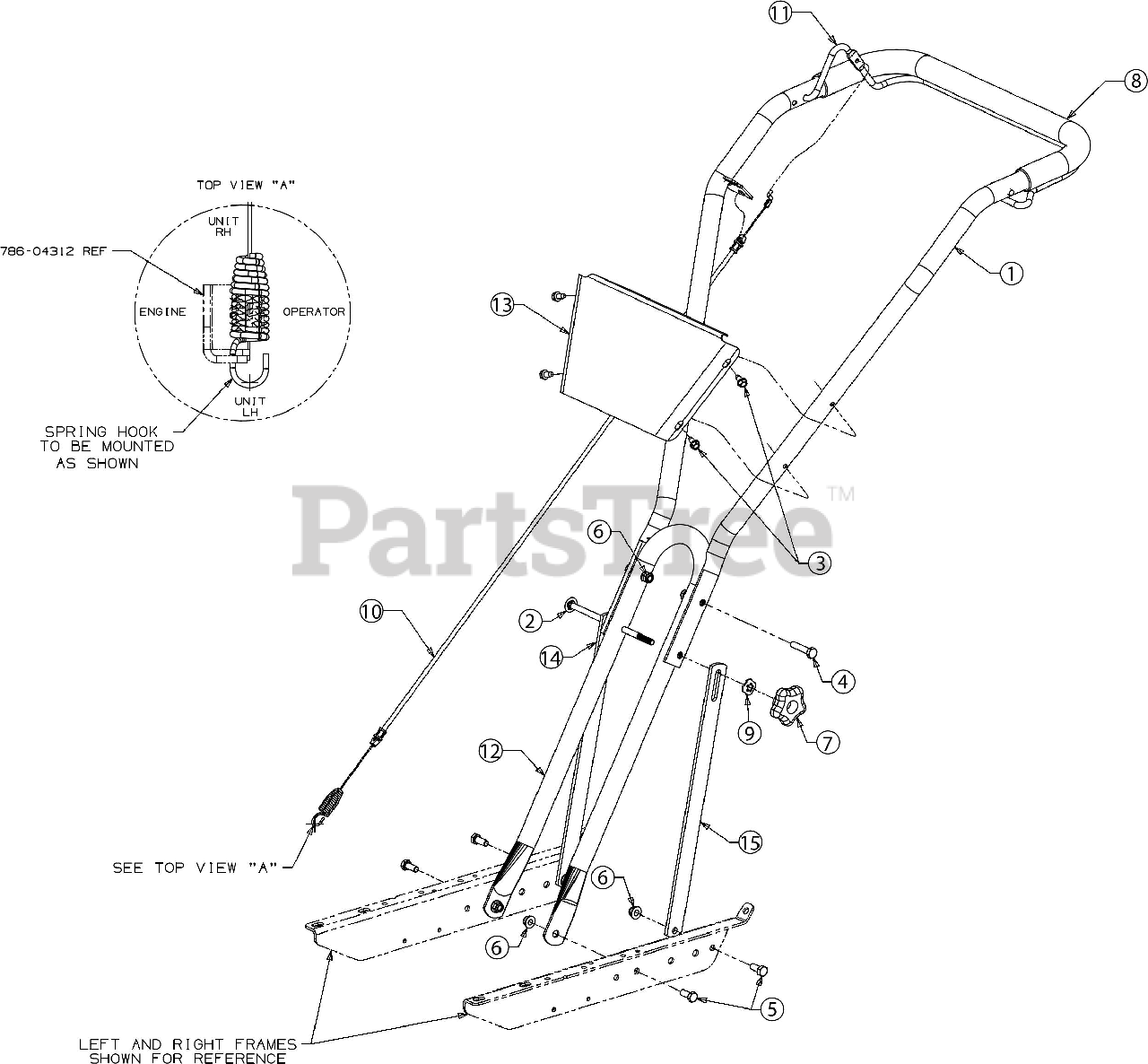

Handle Parts Diagram

  • Title

1

Troy-Bilt 649-04097-0638

UPPER HANDLE ASSEMBLY
(Superseded to 649-04097A-0638)

$107.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-05211

SCREW 5/16-18 x 6.75

$6.49

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 720-04072A

STAR KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 720-05023

HANDLE GRIP

$29.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 936-0170

SPECIAL WASHER
(Superseded to 736-0170)

$

$

Not available

10

Troy-Bilt 946-04413A

FORWARD CABLE

$35.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 747-04789A-0637

CLUTCH BAIL

$29.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 749-04742-0638

LOWER HANDLE

$55.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 786-04200-0638

HANDLE PANEL

$28.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 786-04433-0638

LOWER HANDLE

$8.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 786-04434-0638

SUPPORT BRACKET

$8.49

$

Usually ships in 3-6 days

0
