21D-64M8711 - Troy-Bilt Bronco CRT Tiller (2018) Transmission Parts Diagram

Bronco CRT Tiller

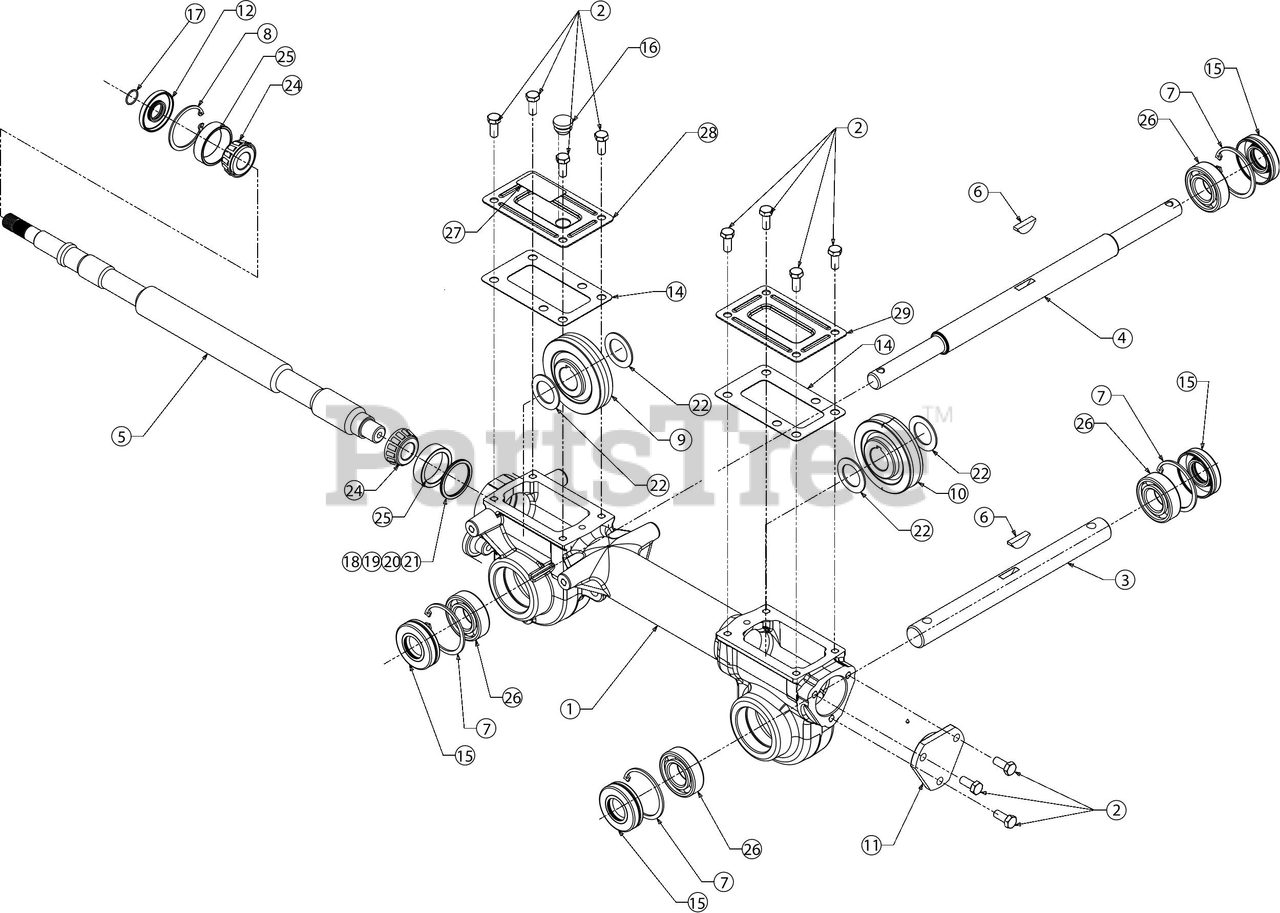

Transmission Parts Diagram

  • Title
1

Troy-Bilt 919-04202B

TRANSMISSOIN HOUSING

$267.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 911-04844

TILLER SHAFT

$84.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 911-04854

WHEEL SHAFT

$71.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 711-05035

DRIVE SHAFT

$98.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 714-04059

KEY-HI PRO .25 x 1

$6.99

$

In Stock, Qty 8

0

7

Troy-Bilt 716-0204

RETAINING RING

$6.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 716-04102

RETAINING RING

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 917-04380

WORM GEAR (RH) 61T

$157.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 917-04381

WORM GEAR (LH) 30T

$145.99

$

In Stock, only 3 left!

0

11

Troy-Bilt 918-04435

BEARING COVER

$22.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 921-04030

OIL SEAL .750 SHF x 1.783

$12.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 921-04229

GEAR HOUSING GASKET

$6.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 721-04232

OIL SEAL 1.00 SHF x 2.00 BORE

$16.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 721-04271

RUBBER OIL PLUG

$5.49

$

In Stock, Qty 11

0

17

Troy-Bilt 732-0614

WIRE RING

$6.49

$

In Stock, only 2 left!

0

18

Troy-Bilt 736-04305

FLAT WASHER 1.500X1.750X.062

$3.99

$

In Stock, Qty 13

0

19

Troy-Bilt 736-04306

FLAT WASHER 1.500X1.750X.005

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-04307

FLAT WASHER 1.500X1.750X.030

$4.49

$

In Stock, only 1 left!

0

21

Troy-Bilt 736-04308

FLAT WASHER 1.500X1.750X0.010

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 736-0745

WASHER 1.010X1.560X.060

$12.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 941-04298

BEARING CONE

$16.99

$

In Stock, Qty 18

0

25

Troy-Bilt 941-04299

BEARING CUP

$6.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 741-3114

BALL BEARING

$26.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 786-04366

TRANSMISSION COVER

$21.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 786-04392

TRANSMISSION COVER
(Superseded to 786-04392-0637)

$19.99

$

Usually ships in 3-6 days

0

Troy-Bilt 918-04934

TRANSMISSION ASSEMBLY

Note: (Not Shown)

$949.99

$

Usually ships in 3-6 days

0
