21D-64M7766 - Troy-Bilt Bronco Tiller (2013) Handle, Tine & Shield Assembly Parts Diagram

Bronco Tiller

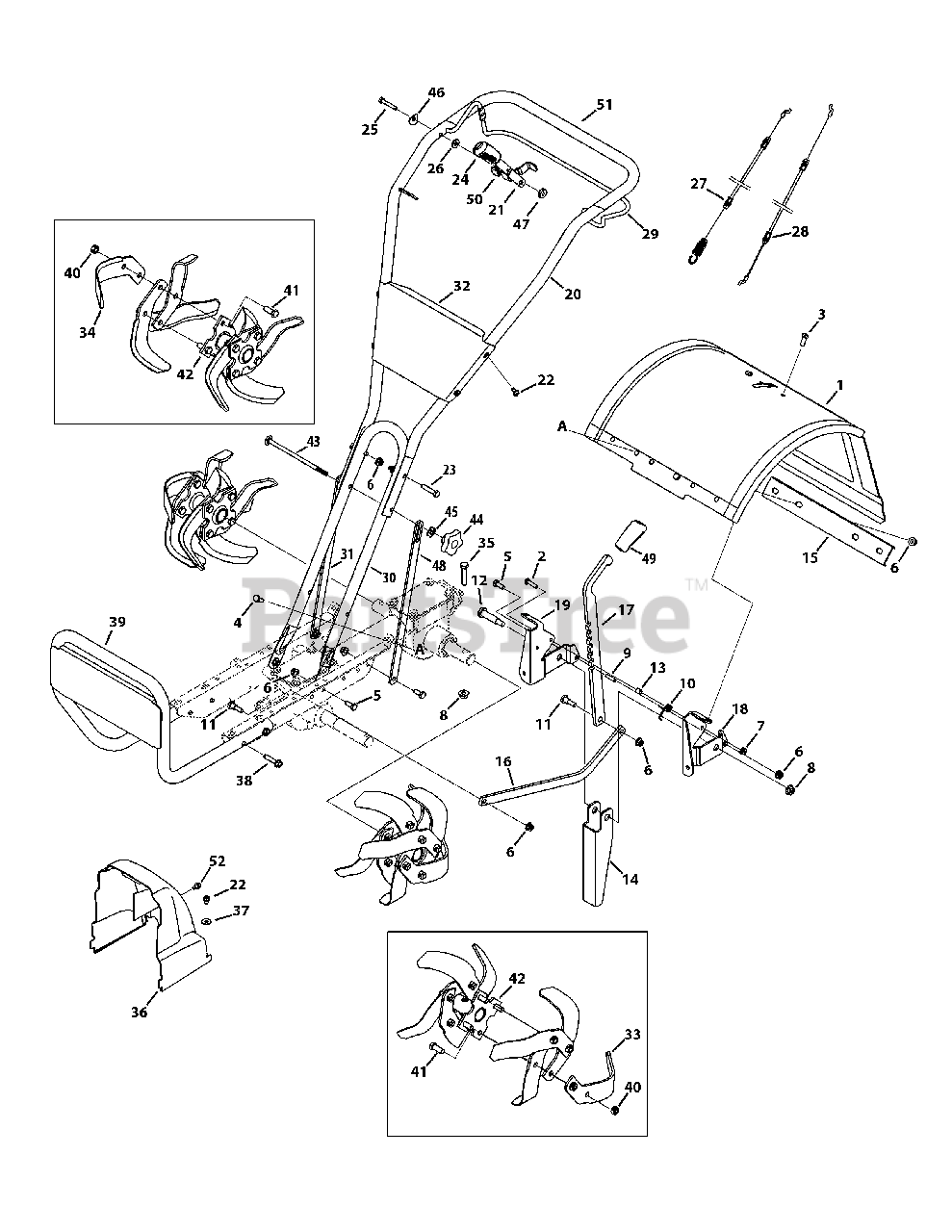

Handle, Tine & Shield Assembly Parts Diagram

  • Title
1

Troy-Bilt 686-04076A-0638

Tine Shield Assembly

$89.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 710-0597

Hex Head Screw, 1/4-20 x 100

$3.99

$

In Stock, Qty 14

0

3

Troy-Bilt 710-0604A

Screw, 5/16-18 x 0625

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1238

Hex Head Washer, 5/16-18 x 875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-3008

Hex Head Screw, 5/16-18 x 75

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 715-0108

Spring Pin, 1/4 DIA x 100 LG

$4.99

$

In Stock, Qty 15

0

10

Troy-Bilt 732-04320

Torsion Spring

$4.49

$

In Stock, Qty 11

0

11

Troy-Bilt 738-04320

Screw, Shoulder, 5/16-18 x 405 x 435

$5.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 938-0533

Screw, Shoulder, $r 498 x 1635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 750-05349

Spacer, Split, 350 x 268 x 375

$3.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 786-04092-0638

Stop Reverse Arm

$27.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 786-04098-0638

Support Channel Bracket

$32.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 786-04104-0638

Depth Drag Bar

$36.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 786-04292A-0638

Depth Adjuster Bar

$66.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 786-04363-0638

LH Tail Bracket

$24.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 786-04364-0638

RH Tail Bracket

$24.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 649-04097-0638

Upper Handle Assembly
(Superseded to 649-04097A-0638)

$107.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt n/a

Reverse Handle Assembly

Note: Not used on this model

$

$

Currently unavailable

22

Troy-Bilt 710-0599

Screw, 1/4-20 x 0500

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-0805

Hex Head Screw, 5/16-18 x 150
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt n/a

Reverse Handle Grip

Note: Not used on this model

$

$

Currently unavailable

25

Troy-Bilt n/a

Hex Head Screw, 1/4-20 x 162

Note: Not used on this model

$

$

Currently unavailable

26

Troy-Bilt n/a

Flat Washer, 265 x 938 x 120

Note: Not used on this model

$

$

Currently unavailable

27

Troy-Bilt 946-04413

Forward Cable
(Superseded to 946-04413A)

$35.99

$

In Stock, only 2 left!

0

28

Troy-Bilt n/a

Reverse Cable

Note: Not used on this model

$

$

Currently unavailable

29

Troy-Bilt 747-04789-0637

Clutch Bail
(Superseded to 747-04789A-0637)

$29.99

$

Usually ships in 3-6 days

0

30

$55.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 786-04433-0638

Support Handle Bracket

$8.99

$

Usually ships in 3-6 days

0

32

$28.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 742-04226-0637

RH Bolo Tine

Note: (RH tine used on left side of tiller in this application)

$16.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 742-04227-0637

LH Bolo Tine

Note: (LH tine used on right side of tiller in this application)

$16.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 710-0347

Hex Head Screw, 3/8-16 x 175

$5.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 731-06170

Belt Cover
(Superseded to 731-11121)

$35.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 736-0173

Washer, Flat, 28 x 74 x 063

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt n/a

Screw, 5/16-18 x 150

Note: Not used on this model

$

$

Currently unavailable

39

Troy-Bilt n/a

Bumper

Note: Not used on this model

$

$

Currently unavailable

40

Troy-Bilt 912-3000

Nut, Hexlock, 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

41

Troy-Bilt 710-0514

Hex Head Screw, 3/8-16 x 100

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 686-04066-0638

Tine Holder Assembly

$58.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 710-05211

Carriage Bolt, 5/16-18 x 675

$6.49

$

In Stock, only 2 left!

0

44

Troy-Bilt 720-04072A

Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 936-0170

Washer, 326 x 875 x 145
(Superseded to 736-0170)

$

$

Not available

46

Troy-Bilt n/a

Washer, Saddle, 320 x 93 x 060

Note: Not used on this model

$

$

Currently unavailable

47

Troy-Bilt n/a

Spacer, 375 x 165

Note: Not used on this model

$

$

Currently unavailable

48

Troy-Bilt 786-04434-0638

Support Handle Bracket

$8.49

$

Usually ships in 3-6 days

0

49

Troy-Bilt 720-04163

Handle Grip

$9.49

$

Usually ships in 3-6 days

0

50

Troy-Bilt 720-04173

Reverse Handle Grip
(Superseded to 920-04173)

$4.49

$

In Stock, only 3 left!

0

51

Troy-Bilt 720-05023

Handle Grip

$29.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 710-0896

Self Tapping Screw, 1/4-14 x 625

$4.49

$

In Stock, Qty 20+

0
