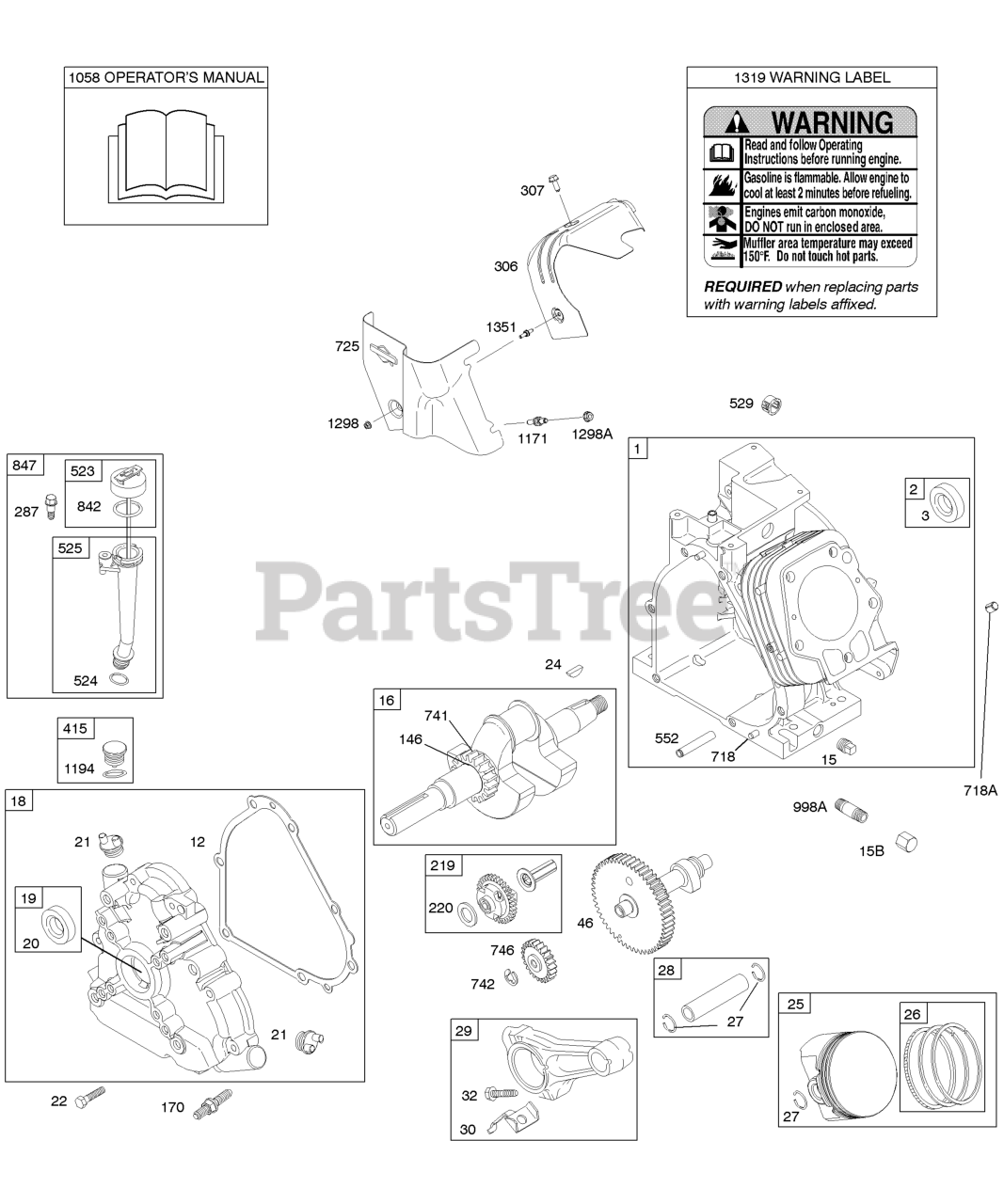

21C114-0543-E1 - Briggs & Stratton Horizontal Engine Camshaft, Crankcase Cover, Crankshaft, Cylinder, Lubrication, Operator's Manual, Piston/Rings/Connecting Rod, Warning Label Parts Diagram

Horizontal Engine

Camshaft, Crankcase Cover, Crankshaft, Cylinder, Lubrication, Operator's Manual, Piston/Rings/Connecting Rod, Warning Label Parts Diagram

  • Title

1

Briggs & Stratton 793617

Cylinder Assembly
(Superseded to 794850)

$328.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 698340

Kit-Bushing/Seal

Note: (Magneto Side)

$22.99

$

In Stock, Qty 5

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 694953

Gasket-Crankcase

$9.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 691686

PLUG, Oil Drain

$5.49

$

In Stock, only 2 left!

0

15B

Briggs & Stratton 695757

Plug-Oil Drain

$6.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 794716

Crankshaft

$272.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 791965

Cover-Crankcase

$199.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 698340

Kit-Bushing/Seal

Note: (PTO Side)

$22.99

$

In Stock, Qty 5

0

20

Briggs & Stratton 391086S

SEAL, Oil

Note: (PTO Side)

$6.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 281658S

Cap-Oil Fill

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 695174

Screw

Note: (Crankcase Cover/Sump)

$

$

Not available

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 793794

Piston Assembly

Note: (Standard) Used After Code Date 06102900

$119.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 793797

Piston Assembly

Note: (.020 Oversize) Used After Code Date 06102900

$121.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 697695

Piston Assembly

Note: (.020 Oversize) Used Before Code Date 06103000

$127.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 793318

Piston Assembly

Note: (Standard) Used Before Code Date 06103000

$111.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 793319

Ring Set

Note: (Standard) Used After Code Date 06061800

$49.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 793324

Ring Set

Note: (.020 Oversize) Used After Code Date 06061800

$64.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 697692

Ring Set

Note: (Standard) Used Before Code Date 06061900

$55.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 697698

Ring Set

Note: (.020 Oversize) Used Before Code Date 06061900

$59.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690975

LOCK, Piston Pin

$3.99

$

In Stock, Qty 10

0

28

Briggs & Stratton 696581

Pin-Piston

$17.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 694691

ROD, Connecting

$60.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 694692

DIPPER, Connecting Rod

$6.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 690976

SCREW

Note: (Connecting Rod)

$4.49

$

In Stock, Qty 19

0

46

Briggs & Stratton 790958

Camshaft
(Superseded to 795697)

$

$

Not available

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

170

Briggs & Stratton 695296

Stud

Note: (Crankcase Cover/Sump)

$9.49

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 693578

GEAR, Governor

$26.99

$

In Stock, only 2 left!

0

220

Briggs & Stratton 691724

Washer

Note: (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

287

Briggs & Stratton 691693

SCREW

Note: (Dipstick Tube)

$3.99

$

In Stock, Qty 9

0

306

Briggs & Stratton 697240

Shield-Cylinder

$22.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691660

Screw

Note: (Cylinder Shield)

$3.99

$

In Stock, Qty 8

0

415

Briggs & Stratton 691363

Plug

$10.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 790477

Dipstick

$17.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 691876

Seal-O Ring

$5.49

$

In Stock, Qty 11

0

525

Briggs & Stratton 792041

Tube-Dipstick

$13.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 791822

GROMMET

$7.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 694674

BUSHING, Governor Crank

$9.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

Note: (Cylinder)

$6.99

$

In Stock, only 1 left!

0

718A

Briggs & Stratton 695178

PIN, Locating

Note: (Head)

$6.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 696756

Shield-Heat

$28.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 691288

GEAR, Timing

$21.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 692564

RETAINER, E Ring

$4.49

$

In Stock, only 2 left!

0

746

Briggs & Stratton 694679

GEAR, Idler

$18.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 790476

Dipstick/Tube Assembly

$24.99

$

Usually ships in 2-12 days

0

998A

Briggs & Stratton 696683

Pipe-Oil

$

$

Not available

1058

Briggs & Stratton 277104TRI

Operator's Manual
(Superseded to 80006750USCN)

$11.99

$

Usually ships in 2-12 days

0

1171

Briggs & Stratton 696754

Stud

Note: (Rocker Cover)

$5.99

$

Usually ships in 2-12 days

0

1194

Briggs & Stratton 691876

Seal-O Ring

Note: (Plug)

$5.49

$

In Stock, Qty 11

0

1298

Briggs & Stratton 790026

Nut

Note: (Shield-Heat)

$3.49

$

Usually ships in 2-12 days

0

1298A

Briggs & Stratton 696757

Nut

Note: (Shield-Heat)

$3.99

$

In Stock, only 2 left!

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1351

Briggs & Stratton 790017

Stud

Note: (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0
