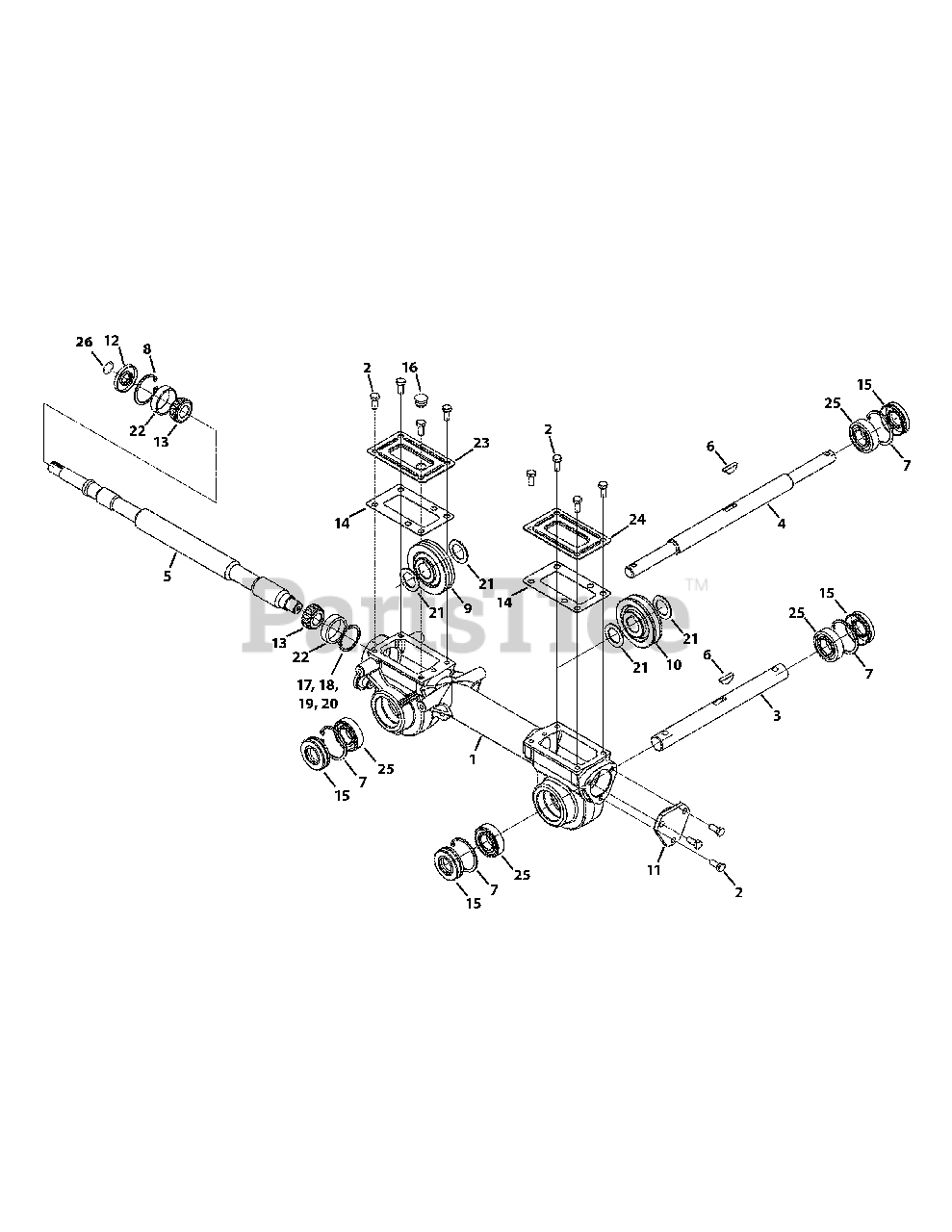

21C-65M1011 - Troy-Bilt Super Bronco CRT Rear-Tine Tiller (2009) Transmission Parts Diagram

Super Bronco CRT Rear-Tine Tiller

Transmission Parts Diagram

  • Title
1

Troy-Bilt 919-04202

Transmission Housing
(Superseded to 919-04202B)

$267.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-3008

Hex Head Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 911-04844

Tiller Shaft

$84.99

$

In Stock, only 2 left!

0

$71.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 911-04882

CRT Drive Shaft 02-23-09 & Before

Note: Used on 618-04735/753-06042 Transmission

$

$

Not available

5

Troy-Bilt 711-05035

CRT Drive Shaft 02-23-09 & After

Note: Used on 918-04816 Transmission

$98.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 714-04059

Key, .25 x 1.062

$6.99

$

In Stock, Qty 8

0

7

Troy-Bilt 716-0204

Retainer Key

$6.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 716-04102

Retainer Ring

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 917-04380

RH Gear Worm, 61T

$157.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 917-04381

LH Gear Worm, 30T

$145.99

$

In Stock, only 3 left!

0

11

Troy-Bilt 918-04435

Bearing Cover

$22.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 921-04030

Oil Seal, .750 SHF x 1.783 BORE

$12.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 941-04298

Cone Bearing

$16.99

$

In Stock, Qty 19

0

14

Troy-Bilt 921-04229

Gear Housing Gasket

$6.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 721-04232

Oil Seal, 1.00 SHF x 2.00 BORE

$16.99

$

In Stock, Qty 11

0

16

Troy-Bilt 721-04271

Rubber Oil Plug

$5.49

$

In Stock, Qty 11

0

17

Troy-Bilt 736-04305

Washer, Flat, 1.50 x 1.75 x .062

$3.99

$

In Stock, Qty 16

0

18

Troy-Bilt 736-04306

Washer, Flat, 1.50 x 1.75 x .005

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-04307

Washer, Flat, 1.50 x 1.75 x .03

$4.49

$

In Stock, only 3 left!

0

20

Troy-Bilt 736-04308

Washer, Flat, 1.50 x 1.75 x .010

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-0745

Washer, Flat, 1.010 x 1.56 x .060

$12.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 941-04299

Cup Bearing

$6.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 786-04366

Tiller Transmission Cover

$21.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 786-04392

Tiller Transmission Cover
(Superseded to 786-04392-0637)

$19.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 741-3114

Ball Bearing, 1 x 52 x 15 x 6205-1

$26.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 732-0614

Wire Ring 02-23-09 & After

Note: Only used on 918-04816 Transmission

$6.49

$

In Stock, only 2 left!

0
