21C-65M1011 - Troy-Bilt Super Bronco CRT Rear-Tine Tiller (2008) Handle, Tine Shields & Tines Parts Diagram

Super Bronco CRT Rear-Tine Tiller

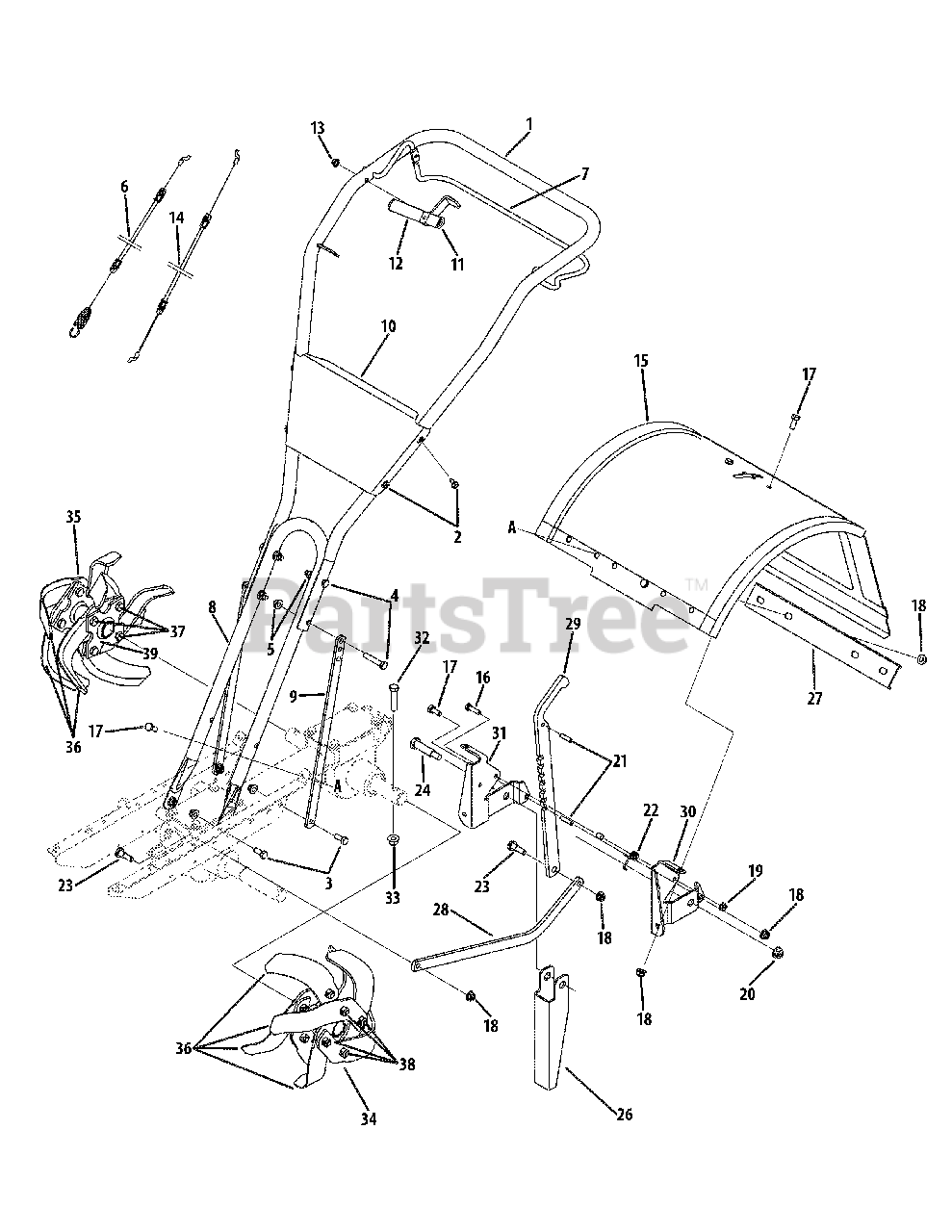

Handle, Tine Shields & Tines Parts Diagram

  • Title

1

Troy-Bilt 649-04066

Upper Handle Assembly
(Superseded to 649-04066-0638)

Variations

Troy-Bilt 649-04066-0638

Upper Handle Assembly, Red - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

2

Troy-Bilt 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-3180

Hex Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 746-04413

Forward Cable
(Superseded to 946-04413A)

$35.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 747-04789

Clutch Bail
(Superseded to 747-04789A-0637)

Variations

Troy-Bilt 747-04789-0637

Clutch Bail - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 749-04208

Lower Handle Assembly

Variations

Troy-Bilt 749-04208-0638

Lower Tiller Handle, Red - MTD/TROY-BILT RED (0638)

$55.99

$

Usually ships in 3-6 days

0

$

$

9

Troy-Bilt 786-04188

Handle Support Bracket
(Superseded to 786-04188-0638)

Variations

Troy-Bilt 786-04188-0638

Handle Support Bracket - MTD/TROY-BILT RED (0638)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 786-04200

Handle Panel

Variations

Troy-Bilt 786-04200-0638

Panel Handle, Red - MTD/TROY-BILT RED (0638)

$28.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 686-04098

Reverse Handle Assembly

Variations

Troy-Bilt 686-04098-0638

Handle Assembly, Reverse - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 686-04098-0721

HANDLE ASSY-REVERSE - SEARS RED (0721)

$

$

Not available

Troy-Bilt 686-04098-4044

HANDLE ASSY-REVERSE - CRAFTSMAN RED (4044)

$

$

Not available

$

$

12

Troy-Bilt 720-0270A

Reverse Handle Grip

$8.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 726-0135

Speed Nut, .3125

$6.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 746-04414

Reverse Cable
(Superseded to 946-04414A)

$38.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 686-04077

Tine Shield, 17"
(Superseded to 686-04077B-0638)

Note: Super Bronco

Variations

Troy-Bilt 686-04077-0638

Tine Shield Assembly, Red - MTD/TROY-BILT RED (0638)

$195.99

$

In Stock, only 1 left!

0

$195.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 686-04076

Tine Shield, 15"
(Superseded to 686-04076A-0638)

Note: Bronco

Variations

Troy-Bilt 686-04076-0638

Tine Shield Assembly, Red - MTD/TROY-BILT RED (0638)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

16

Troy-Bilt 710-0597

Hex Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 14

0

17

Troy-Bilt 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-04065

Flange Lock Nut, 3/8 -16

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 715-0108

Spring Pin, 1/4 x 1.00

$4.99

$

In Stock, Qty 15

0

22

Troy-Bilt 732-04320

Torsion Spring

$4.49

$

In Stock, Qty 11

0

23

Troy-Bilt 738-04320

Shoulder Screw, 5/16-18 x .405 x .435

$5.49

$

In Stock, only 2 left!

0

24

Troy-Bilt 738-0533

Shoulder Screw, .498 x 1.635

$7.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 750-04556

Split Spacer, .350 x .268 x .375

$6.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 786-04092

Reverse Stop Arm

Variations

Troy-Bilt 786-04092-0638

Stop Arm, Rev - MTD/TROY-BILT RED (0638)

$27.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04092-0721

ARM:REV:STOP - SEARS RED (0721)

$25.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04092-4021

ARM:REV:STOP - CUB YELLOW 2 (4021)

$22.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04092-4044

ARM:REV:STOP - CRAFTSMAN RED (4044)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 786-04098

Support Bracket

Variations

Troy-Bilt 786-04098-0638

BRACKET:SUPT - MTD/TROY-BILT RED (0638)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04098-4021

BRACKET:SUPT - CUB YELLOW 2 (4021)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 786-04104

Depth Drag Bar

Variations

Troy-Bilt 786-04104-0638

Depth Drag Bar, MTD Red - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 786-04104-0721

BAR:DEPTH DRAG - SEARS RED (0721)

$33.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04104-4021

BAR:DEPTH DRAG - CUB YELLOW 2 (4021)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04104-4044

BAR:DEPTH DRAG - CRAFTSMAN RED (4044)

$33.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 786-04292

Adjustable Depth Bar
(Superseded to 786-04292A-0638)

Variations

Troy-Bilt 786-04292-0638

BAR-DEPTH ADJUST - MTD/TROY-BILT RED (0638)

$66.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 786-04363

Tail Bracket, Left

Variations

Troy-Bilt 786-04363-0638

Tail Bracket, LH - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, only 1 left!

0

Troy-Bilt 786-04363-0721

BRACKET-TAIL LH - SEARS RED (0721)

$23.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04363-4021

BRACKET-TAIL LH - CUB YELLOW 2 (4021)

$23.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04363-4044

BRACKET-TAIL LH - CRAFTSMAN RED (4044)

$23.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 786-04364

Tail Bracket, Right

Variations

Troy-Bilt 786-04364-0638

BRACKET-TAIL RH - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, only 1 left!

0

Troy-Bilt 786-04364-0721

BRACKET-TAIL RH - SEARS RED (0721)

$23.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04364-4021

BRACKET-TAIL RH - CUB YELLOW 2 (4021)

$23.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04364-4044

BRACKET-TAIL RH - CRAFTSMAN RED (4044)

$23.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 712-04065

Flange Lock Nut, 3/8 -16

$3.99

$

In Stock, Qty 20+

0

34

N/A

Tine Assembly, Left 10 x 14

Note: Bronco

$

$

Not available

34

N/A

Tine Assembly, Left 10 x 16

Note: Super Bronco

$

$

Not available

35

N/A

Tine Assembly, Right 10 x 14

Note: Bronco

$

$

Not available

35

N/A

Tine Assembly, Right 10 x 16

Note: Super Bronco

$

$

Not available

36

Troy-Bilt 742-04226

Tine - RH

Variations

Troy-Bilt 742-04226-0637

Bolo Tine, RH 10" Powder Black - POWDER BLACK (0637)

$16.99

$

In Stock, Qty 20+

0

Troy-Bilt 742-04226-0638

Bolo Tine, RH 10" - MTD/TROY-BILT RED (0638)

$16.99

$

In Stock, Qty 20+

0

$16.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 742-04227

Tine - LH

Variations

Troy-Bilt 742-04227-0637

Bolo Tine, LH 10" Powder Black - POWDER BLACK (0637)

$16.99

$

In Stock, Qty 20+

0

Troy-Bilt 742-04227-0638

Bolo Tine, LH 10" - MTD/TROY-BILT RED (0638)

$16.99

$

In Stock, Qty 5

0

$16.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 710-0514

Hex Screw, 3/8 -16 x 1

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 712-3000

Hex Lock Nut, 3/8 -16

$4.49

$

In Stock, Qty 9

0

39

Troy-Bilt 686-04065

Tine Holder
(Superseded to 686-05008-0637)

Note: Super Bronco

Variations

Troy-Bilt 686-04065-0637

Tine Holder Assembly, Black - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 686-04066

Tine Holder

Note: Bronco

Variations

Troy-Bilt 686-04066-0638

Tine Holder Assembly, Red - MTD/TROY-BILT RED (0638)

$58.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0
