21C-65M1011 - Troy-Bilt Super Bronco CRT Rear-Tine Tiller (2008) Engine Assembly Parts Diagram

Super Bronco CRT Rear-Tine Tiller

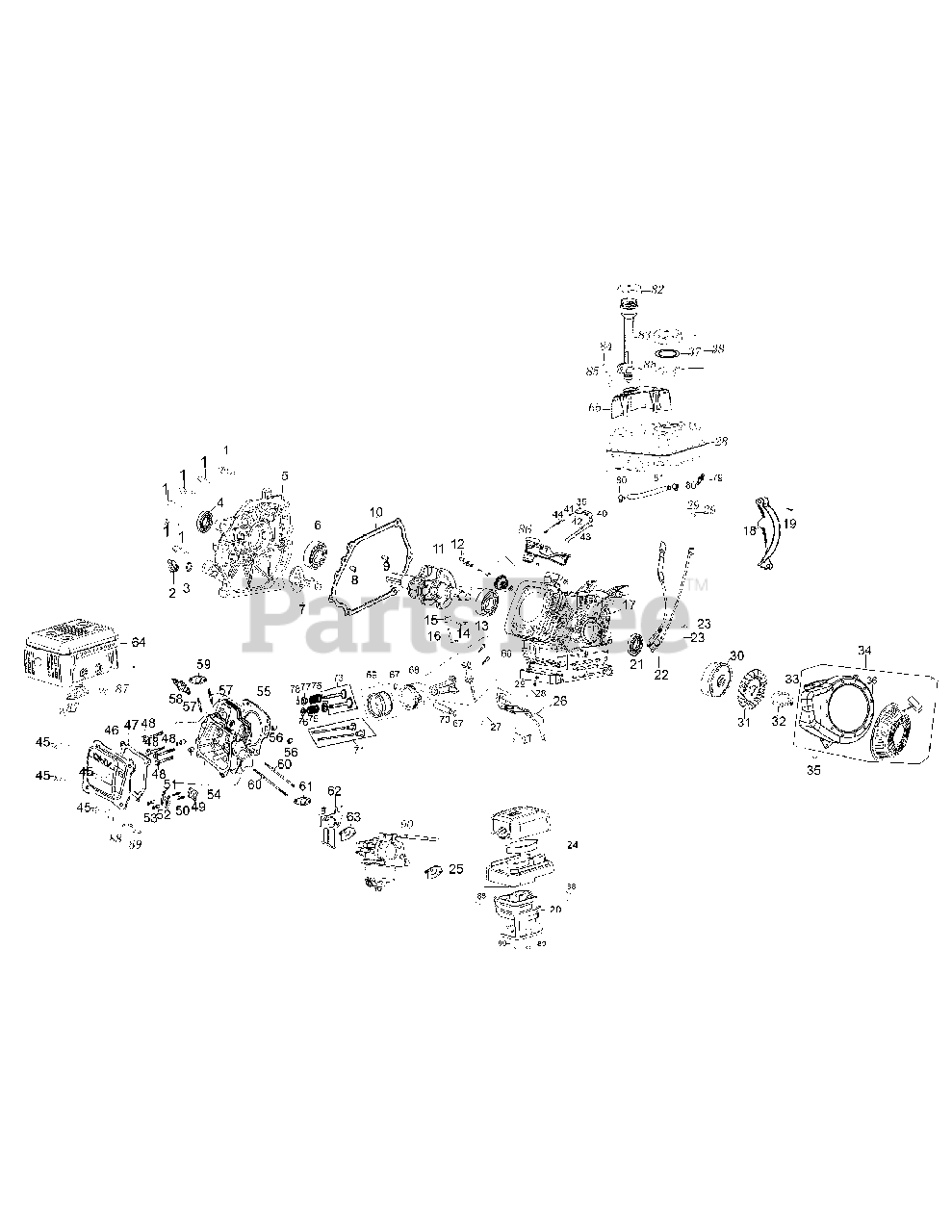

Engine Assembly Parts Diagram

  • Title

1

Bolt

Note: Furnish Short Block 751-10798

$

$

Not available

2

Oil Filler Plug

Note: Furnish Short Block 751-10798

$

$

Not available

3

O-Ring

Note: Furnish Short Block 751-10798

$

$

Not available

4

Oil Seal

Note: Furnish Short Block 751-10798

$

$

Not available

5

Left Crankcase Cover

Note: Furnish Short Block 751-10798

$

$

Not available

6

Radial Ball Bearing

Note: Furnish Short Block 751-10798

$

$

Not available

7

Camshaft Assembly

Note: Furnish Short Block 751-10798

$

$

Not available

8

Dowel Pin

Note: Furnish Short Block 751-10798

$

$

Not available

9

Dowel Pin

Note: Furnish Short Block 751-10798

$

$

Not available

10

Case Cover Packing

Note: Furnish Short Block 751-10798

$

$

Not available

11

Crankshaft Complete

Note: Furnish Short Block 751-10798

$

$

Not available

12

Governor Kit

Note: Furnish Short Block 751-10798

$

$

Not available

13

Radial Ball Bearing

Note: Furnish Short Block 751-10798

$

$

Not available

14

Lock Pin

Note: Furnish Short Block 751-10798

$

$

Not available

15

O-Ring

Note: Furnish Short Block 751-10798

$

$

Not available

16

Governor Arm

Note: Furnish Short Block 751-10798

$

$

Not available

17

Crankase Complete

Note: Furnish Short Block 751-10798

$

$

Not available

20

Troy-Bilt 951-10806

Air Filter Heating Pipe Base

$22.99

$

In Stock, Qty 7

0

21

Oil Seal

Note: Furnish Short Block 751-10798

$

$

Not available

22

Troy-Bilt 951-10792

Ignition Complete

$96.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 951-10818

Air Filter Housing

$38.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 951-10794

Air Filter

$14.99

$

In Stock, Qty 20+

0

25

Carburetor Packing

Note: Furnish Short Block 751-10798

$

$

Not available

28

Troy-Bilt 951-10796

Fuel Tank
(Superseded to 951-12159)

$139.99

$

In Stock, only 2 left!

0

28

Bolt

Note: Furnish Short Block 751-10798

$

$

Not available

29

Nut

Note: Furnish Short Block 751-10798

$

$

Not available

34

Troy-Bilt 951-10790

Recoil Starter Assembly

$82.99

$

In Stock, Qty 7

0

38

Troy-Bilt 951-10649

Fuel Filler Cap Complete
(Superseded to 951-12533)

$23.99

$

In Stock, only 2 left!

0

44

Troy-Bilt 951-10654

Governor Spring

$8.49

$

In Stock, Qty 20+

0

47

Head Cover Gasket

Note: Furnish Short Block 751-10798

$

$

Not available

51

Rocker Arm

Note: Furnish Cylinder Head 751-10799

$

$

Not available

52

Valve Adjusting Nut

Note: Furnish Cylinder Head 751-10799

$

$

Not available

53

Pivot Locking Nut

Note: Furnish Cylinder Head 751-10799

$

$

Not available

54

Cylinder Head Complete

Note: Furnish Cylinder Head 751-10799

$

$

Not available

55

Cylinder Head Gasket

Note: Furnish Short Block 751-10798

$

$

Not available

56

Dowel Pin

Note: Furnish Cylinder Head 751-10799

$

$

Not available

57

Troy-Bilt 751-10786

Stud 8 × 34

$

$

Currently unavailable

58

Troy-Bilt 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

59

Muffler Gasket

Note: Furnish Cylinder Head 751-10799

$

$

Not available

61

Carburetor Insulator Packing

Note: Furnish Short Block 751-10798

$

$

Not available

62

Carburetor Insulator

Note: Furnish Short Block 751-10798

$

$

Not available

64

Troy-Bilt 951-10793

Muffler
(Superseded to 751P18511)

$52.99

$

In Stock, only 4 left!

0

65

Troy-Bilt 951-10662

Dipstick Decoration Cover

$

$

Not available

66

Connecting Rod Assembly

Note: Furnish Short Block 751-10798

$

$

Not available

67

Piston Pin Clip

Note: Furnish Short Block 751-10798

$

$

Not available

68

Piston

Note: Furnish Short Block 751-10798

$

$

Not available

69

Piston First Ring Set

Note: Furnish Short Block 751-10798

$

$

Not available

70

Piston Pin

Note: Furnish Short Block 751-10798

$

$

Not available

71

Troy-Bilt 751-10789

Push Rod Kit

$

$

Currently unavailable

71

Valve Lifter

Note: Furnish Push Rod Kit 751-10789

$

$

Not available

71

Push Rod

Note: Furnish Push Rod Kit 751-10789

$

$

Not available

73

Troy-Bilt 751-10788

Valve Kit

$

$

Currently unavailable

73

Inlet Valve

Note: Furnish Valve Kit 751-10788

$

$

Not available

73

Exhaust Valve

Note: Furnish Valve Kit 751-10788

$

$

Not available

79

Troy-Bilt 951-10651

Fuel Tank Nipple

$15.99

$

In Stock, Qty 16

0

82

Troy-Bilt 951-10655

Dipstick
(Superseded to 631-05020AP)

$34.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 951-10656

Engine/Dipstick Cover
(Superseded to 631-05020AP)

$34.99

$

Usually ships in 3-6 days

0

85

Troy-Bilt 710-04931

Bolt - M6 X 28 Zinc Coating

$6.99

$

Usually ships in 3-6 days

0

90

Troy-Bilt 951-10797

Carburetor
(Superseded to 951-12785)

$124.99

$

In Stock, only 2 left!

0

Troy-Bilt 951-10799

Cylinder Head

$176.99

$

Usually ships in 3-6 days

0

Troy-Bilt 952Z170-T0A

Engine - Complete
(Superseded to 952Z170-AUC)

$747.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-10798

Short Block
(Superseded to 951-10798A)

$345.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-10307

Flywheel Key
(Superseded to 751P10307A)

Note: (Not Shown)

$2.49

$

In Stock, Qty 10

0

Troy-Bilt 951-10800

Carb. Kit Major
(Superseded to 951-12783)

Note: (Not Shown)

$58.99

$

In Stock, only 2 left!

0

Troy-Bilt 951-10801

Gasket Kit - External
(Superseded to 951-10801A)

Note: (Not Shown)

$29.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-10802

Gasket Kit - Complete
(Superseded to 951-10802A)

Note: (Not Shown)

$53.99

$

Usually ships in 3-6 days

0
