21C-655A766 - Troy-Bilt Pro-Line CRT Rear-Tine Tiller (2009) Handle, Shields, and Tines Parts Diagram

Pro-Line CRT Rear-Tine Tiller

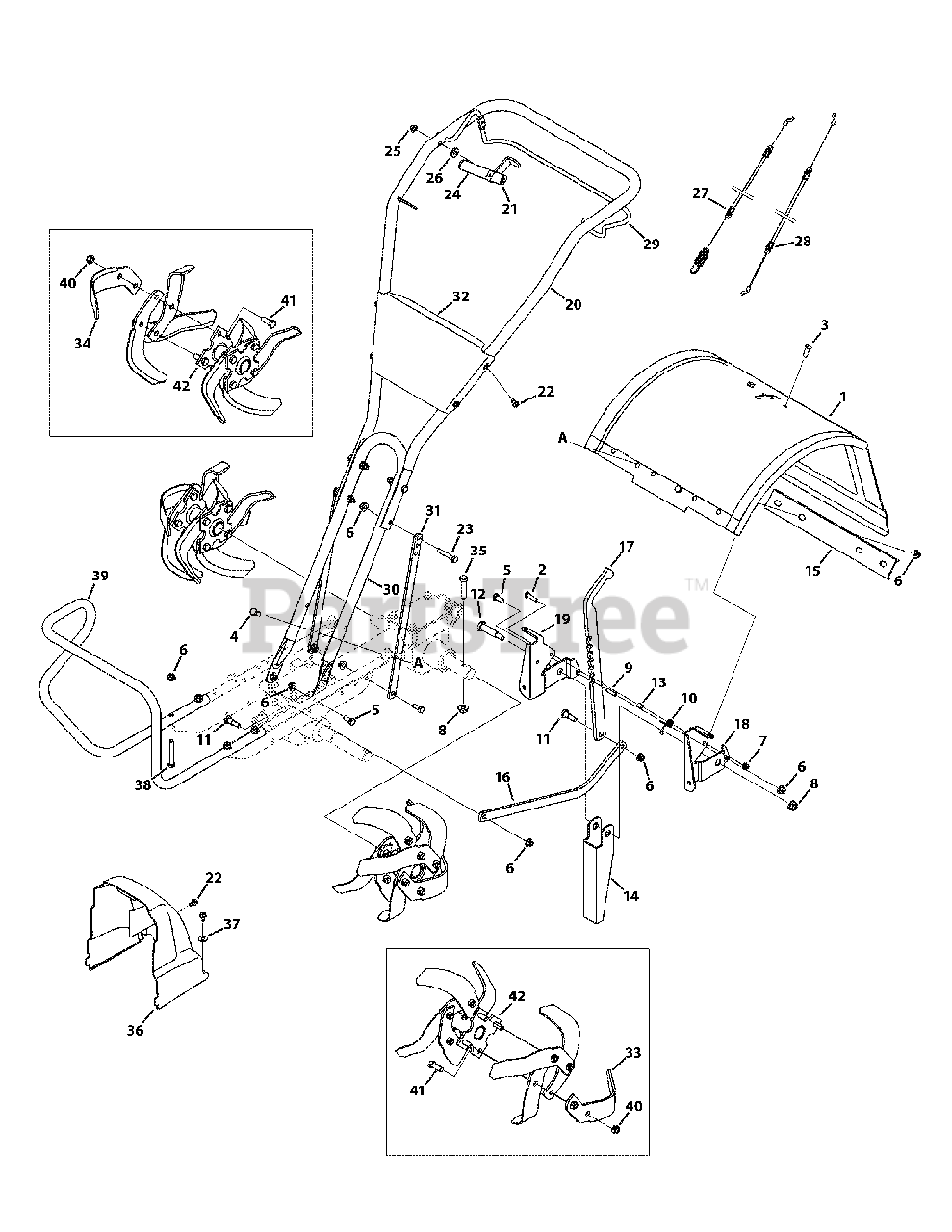

Handle, Shields, and Tines Parts Diagram

  • Title

1

Troy-Bilt 686-04077-0638

Tine Shield Assembly
(Superseded to 686-04077B-0638)

Note: (650 Series)

$195.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 686-04076-0638

Tine Shield Assembly
(Superseded to 686-04076A-0638)

Note: (640 Series)

$89.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 710-0597

Hex Head Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 14

0

3

Troy-Bilt 710-0604A

Screw, 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1238

Hex Head Washer, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-3008

Hex Head Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 715-0108

Spring Pin, 1/4 DIA x 1.00 LG

$4.99

$

In Stock, Qty 15

0

10

Troy-Bilt 732-04320

Torsion Spring

$4.49

$

In Stock, Qty 11

0

11

Troy-Bilt 738-04320

Screw, Shoulder, 5/16-18 x .405 x .435

$5.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 938-0533

Screw, Shoulder, .498 x 1.635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 750-04556

Spacer, Split, .350 x .268 x .375

$6.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 786-04092-0638

Stop Reverse Arm

$27.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 786-04098-0638

Support Channel Bracket

$32.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 786-04104-0638

Depth Drag Bar

$36.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 786-04292-0638

Depth Adjuster Bar
(Superseded to 786-04292A-0638)

$66.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 786-04363-0638

LH Tail Bracket

$24.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 786-04364-0638

RH Tail Bracket

$24.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 649-04066-0638

Upper Handle Assembly

$

$

Not available

21

Troy-Bilt 686-04098-0638

Reverse Handle Assembly

Note: (650 Series)

$

$

Not available

22

Troy-Bilt 710-0599

Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-0805

Hex Head Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 720-0270A

Reverse Handle Grip

Note: (650 Series)

$8.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 726-0135

Speed Nut, Cap, .3125 DIA.

Note: (650 Series)

$6.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 936-3008

Flat Washer, .344 x .750 x .120

Note: (650 Series)

$6.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 746-04413

Forward Cable
(Superseded to 946-04413A)

$35.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 746-04414

Reverse Cable
(Superseded to 946-04414A)

Note: (650 Series)

$38.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 747-04789-0637

Clutch Bail
(Superseded to 747-04789A-0637)

$29.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 749-04208-0638

Lower Handle
(Superseded to 749-04742-0638)

$55.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 786-04188-0638

Support Handle Bracket

$17.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 786-04200-0638

Handle Panel

$28.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 742-04226-0637

RH Bolo Tine

Note: (RH tine used on left side of tiller in this application)

$16.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 742-04227-0637

LH Bolo Tine

Note: (LH tine used on right side of tiller in this application)

$16.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 710-0347

Hex Head Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 731-06170

Belt Cover
(Superseded to 731-11121)

$35.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 710-0395

Hex Head Screw, 5/16-18 x 2.25

Note: (650 Series)

$4.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 749-04193-0637

Bumper

Note: (650 Series)

$54.99

$

In Stock, Qty 6

0

40

Troy-Bilt 912-3000

Nut, Hexlock, 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

41

Troy-Bilt 710-0514

Hex Head Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 686-04065-0637

Tine Holder Assembly
(Superseded to 686-05008-0637)

Note: (650 Series)

$41.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 686-04066-0638

Tine Holder Assembly

$58.99

$

Usually ships in 3-6 days

0
