21C-655A766 - Troy-Bilt Pro-Line CRT Rear-Tine Tiller (2008) Transmission Assembly Parts Diagram

Pro-Line CRT Rear-Tine Tiller

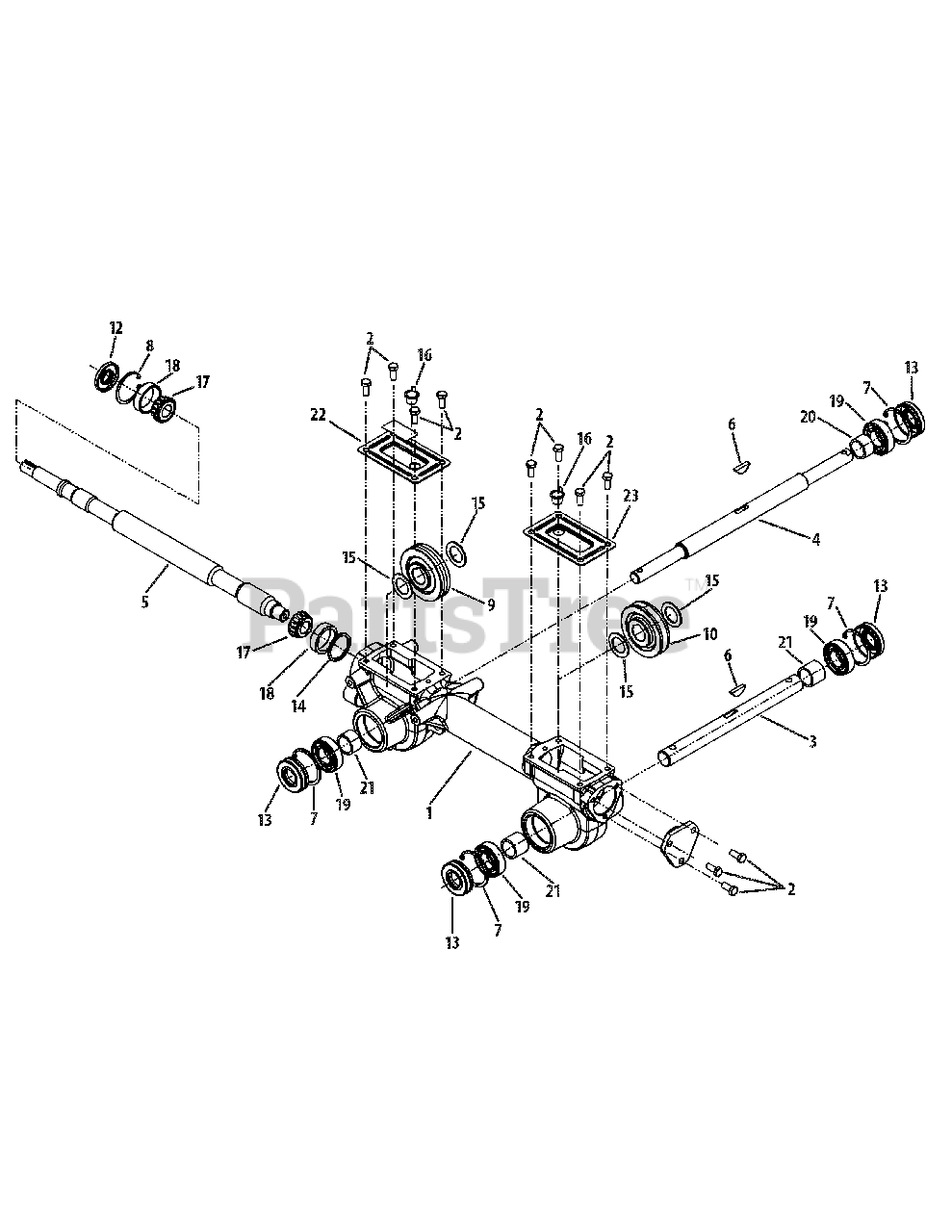

Transmission Assembly Parts Diagram

  • Title
1

Troy-Bilt 619-04190

Transmission Housing
(Superseded to 753-05894B)

$885.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 711-04844

Shaft
(Superseded to 911-04844)

$84.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 711-04854

Wheel Shaft
(Superseded to 911-04854)

$71.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 711-04882

Drive Shaft
(Superseded to 911-04882)

$

$

Not available

6

Troy-Bilt 714-04059

Hi-Pro Key, .25 x 1.062

$6.99

$

In Stock, Qty 8

0

7

Troy-Bilt 716-0204

Retaining Ring

$6.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 716-04102

Retaining Ring

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 717-04380

Worm Gear, 61T
(Superseded to 917-04380)

$157.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 717-04381

Worm Gear, 30T
(Superseded to 917-04381)

$145.99

$

In Stock, only 3 left!

0

11

Troy-Bilt 718-04435

Bearing Cover
(Superseded to 918-04435)

$22.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 721-04030

Oil Seal, .750 x 1.783
(Superseded to 921-04030)

$12.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 721-04232

Oil Seal, 1.00 x 2.00

$16.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-04305

Flat Washer, 1.50 x 1.75 x .062

$3.99

$

In Stock, Qty 13

0

14

Troy-Bilt 736-04306

Flat Washer, 1.50 x 1.75 x .005

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-04307

Flat Washer, 1.50 x 1.75 x .03

$4.49

$

In Stock, only 3 left!

0

14

Troy-Bilt 736-04308

Flat Washer, 1.50 x 1.75 x .010

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-0745

Flat Washer, 1.010 x 1.56 x .060

$12.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 737-04214

Plastic Plug

$

$

Not available

17

Troy-Bilt 741-04298

Cone Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

18

Troy-Bilt 741-04299

Cup Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 741-3114

Ball Bearing

$26.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 750-04943

Spacer, 1.00 x 1.25 x .73

$

$

Not available

21

Troy-Bilt 750-04944

Spacer, 1.00 x 1.25 x .98

$7.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 786-04366

Transmission Cover

$21.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 786-04359

Transmission Cover Front

$24.99

$

Usually ships in 3-6 days
