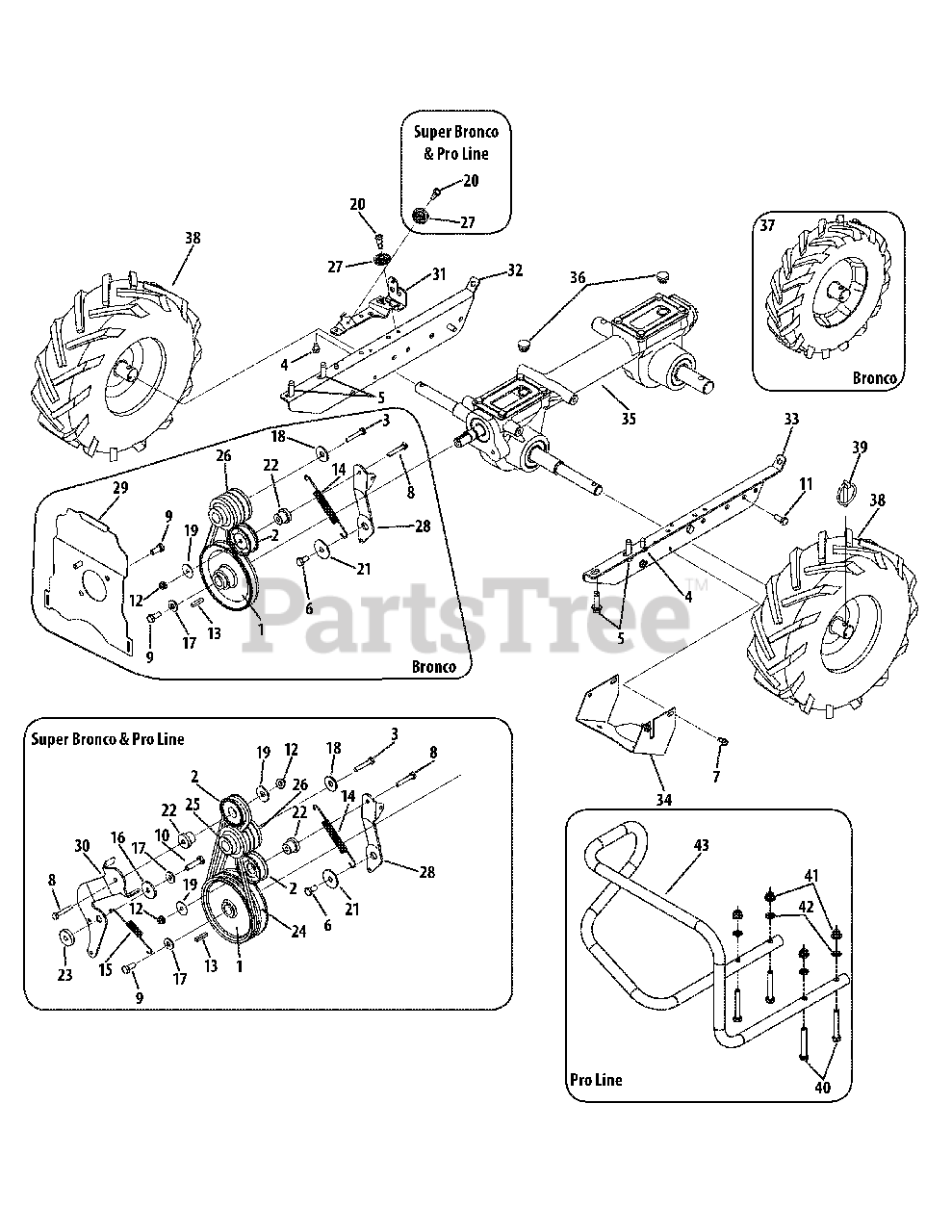

21C-655A766 - Troy-Bilt Pro-Line CRT Rear-Tine Tiller (2008) Drive System Parts Diagram

Pro-Line CRT Rear-Tine Tiller

Drive System Parts Diagram

  • Title

1

Troy-Bilt 656-04023A

Engine Pulley

Note: Bronco

$79.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 656-04005A

Engine Pulley

Note: Super Bronco & Pro-Line

$

$

Not available

2

Troy-Bilt 684-04168

Idler Pulley Assembly

$38.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-0151

Hex Screw,3/8 -24 x 2

$7.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0502A

Screw, 3/8 -16 x 1.250

Note: Bronco & Super Bronco

$6.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 710-0538

Hex Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 9

0

7

Troy-Bilt 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0606

Hex Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

9

Troy-Bilt 710-0627

Hex Screw,5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0672

Hex Screw, 5/16-24 x 1.250

$4.49

$

In Stock, Qty 18

0

11

Troy-Bilt 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 714-0105

Key, 3/16 x 1.00
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 732-04085

Extension Spring, .480 x 5.00

$14.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 732-04276A

Extension Spring

$9.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 736-0343

Flat Washer, .330 x 1.25 x .120

$4.49

$

In Stock, Qty 7

0

17

Troy-Bilt 736-04193

Belleville Washer, .827 x .331 x .098

$6.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-0452

Belleville Washer, .396 x 1.140 x .095

$4.99

$

In Stock, Qty 5

0

19

Troy-Bilt 736-3092

Flat Washer, .265 x 1.0 x .030

$3.99

$

In Stock, Qty 9

0

20

Troy-Bilt 738-0924A

Shoulder Screw, 1/4-28 x .340 x .335

$6.99

$

In Stock, Qty 5

0

21

Troy-Bilt 748-04087A

Pivot Spacer

$6.49

$

In Stock, Qty 9

0

22

Troy-Bilt 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 3 left!

0

23

Troy-Bilt 750-04907

Pivot Spacer

$6.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 754-04090

Forward Drive Belt, 4 x 25.375
(Superseded to 954-04090)

$20.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 754-04091

Reverse Drive Belt, 3 x 29.125
(Superseded to 954-04091)

$18.99

$

In Stock, only 4 left!

0

26

Troy-Bilt 756-04334

Engine Pulley

$

$

Not available

27

Troy-Bilt 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

28

Troy-Bilt 786-04312

Forward Idler Bracket

$13.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 786-04343

Motor Cover Plate

Variations

Troy-Bilt 786-04343-0638

BRACKET-IDLER REVE - MTD/TROY-BILT RED (0638)

$19.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04343-0721

BRACKET-IDLER REVE - SEARS RED (0721)

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04343-4021

PLATE-BELT CVR MTG - CUB YELLOW 2 (4021)

$16.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04343-4044

BRACKET-IDLER REVE - CRAFTSMAN RED (4044)

$18.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 786-04346

Reverse Idler Bracket

$10.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 786-04357

Bracket
(Superseded to 786-04357A)

Variations

Troy-Bilt 786-04357-0638

BRACKET-PULLEY MOU - MTD/TROY-BILT RED (0638)

$11.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04357-0721

BRACKET-PULLEY MOU - SEARS RED (0721)

$8.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04357-4021

BRACKET-PULLEY MOUNTING - CUB YELLOW 2 (4021)

$9.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04357-4044

BRACKET-PULLEY MOU - CRAFTSMAN RED (4044)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 786-04367

Frame, Left

Variations

Troy-Bilt 786-04367-0638

FRAME-MOUNT LH - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

33

Troy-Bilt 786-04368

Frame, Right

Variations

Troy-Bilt 786-04368-0638

FRAME-MOUNT RH - MTD/TROY-BILT RED (0638)

$21.99

$

Usually ships in 3-6 days

0

$

$

34

Troy-Bilt 786-04371

Pulley Shield

Variations

Troy-Bilt 786-04371-0638

SHIELD-PULLEY - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04371-4021

SHIELD-PULLEY - CUB YELLOW 2 (4021)

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04371-0721

SHIELD-PULLEY - SEARS RED (0721)

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-04371-4044

SHIELD-PULLEY - CRAFTSMAN RED (4044)

$18.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 618-04597

Transmission Assembly
(Superseded to 753-06042A)

$995.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 721-04235

Rubber Oil Plug

$4.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 934-04453

Wheel, 11 x 4-4
(Superseded to 634-04453)

Note: Bronco

$105.99

$

In Stock, Qty 9

0

38

Troy-Bilt 634-04232

Wheel, 13 x 5 x 6
(Superseded to 934-04232)

Note: Super Bronco & Pro-Line

$172.99

$

In Stock, only 3 left!

0

38

N/A

Rim Assembly

Note: Not Shown

$

$

Not available

38

Troy-Bilt 734-04163

Tire, 13.0 x 5.0 x 6.0
(Superseded to 734-04163A)

Note: Not Shown

Variations

Troy-Bilt 734-04163-0901

Tiller Ag Tire - Carlisle (0901)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 734-0255

Air Valve
(Superseded to 934-0255)

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 714-0143

Klik Pin
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 7

0

40

Troy-Bilt 710-0395

Hex Screw, 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 726-0201

Speed Nut, .3125

$6.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 749-04193

Bumper
(Superseded to 749-04193-0637)

Variations

Troy-Bilt 749-04193-0637

Bumper, Tiller Black - POWDER BLACK (0637)

$54.99

$

In Stock, Qty 6

0

$54.99

$

In Stock, Qty 6

0
