21C-654D266 - Troy-Bilt Super Bronco CRT Rear-Tine Tiller (2010) Drive System Parts Diagram

Super Bronco CRT Rear-Tine Tiller

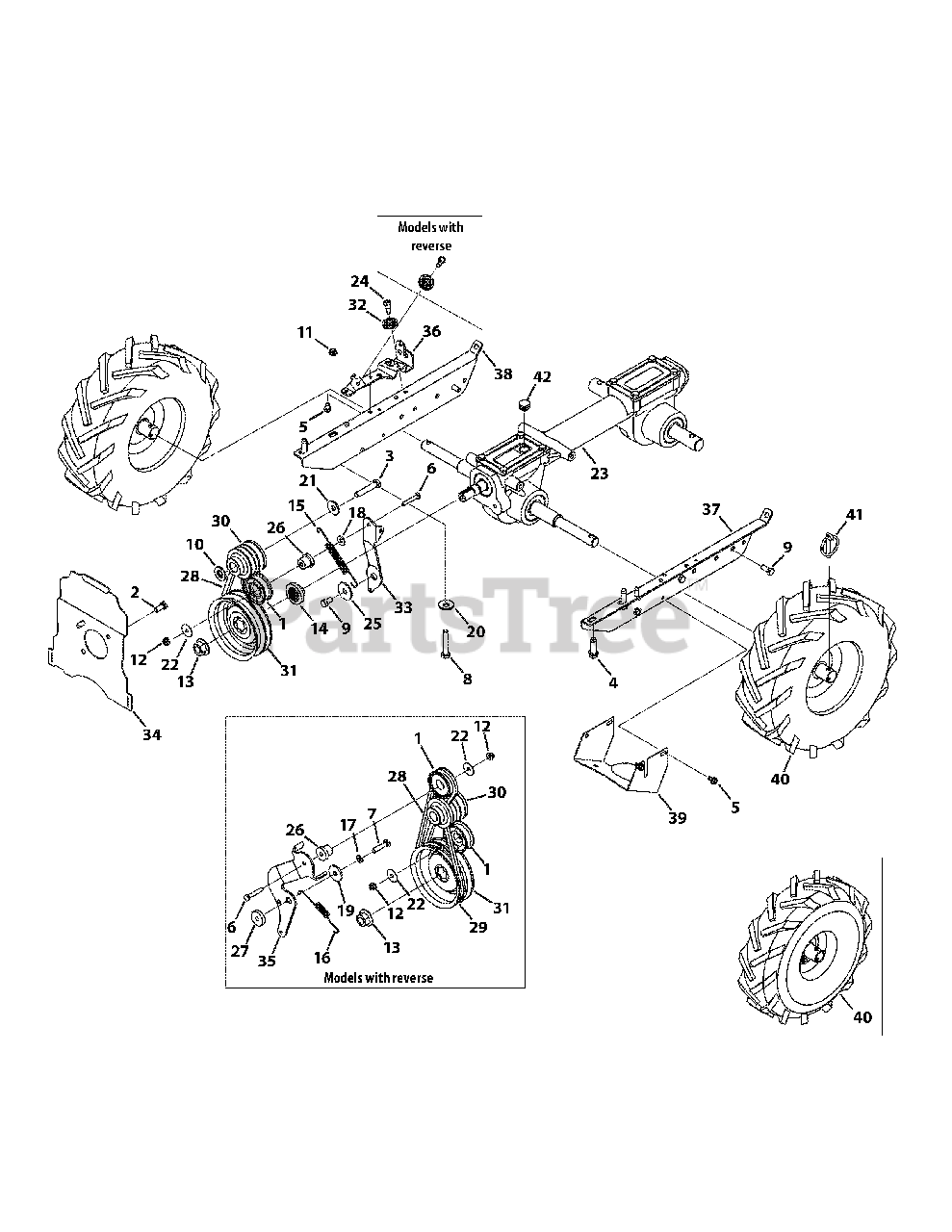

Drive System Parts Diagram

  • Title
1

Troy-Bilt 684-04168

Idler Pulley Assembly, 1.917 OD

$38.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 710-0170

Hex Head Screw, 5/16-24 x .625

$6.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-0331

Hex Head Screw, 3/8-24 x 2.25, B&S

$6.99

$

In Stock, Qty 7

0

3

Troy-Bilt 710-0151

Hex Head Screw, 3/8-24 x 2.00, Honda

$7.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 710-0599

Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0606

Hex Head Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

7

Troy-Bilt 710-0672

Hex Head Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 18

0

8

Troy-Bilt 710-0805

Hex Head Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-1880

Hex Head Screw, 5/16-18 x .75, Patch

$4.99

$

In Stock, Qty 11

0

10

Troy-Bilt 736-0315

Washer, Flat, .760 x 1.50 x .120

$6.99

$

In Stock, Qty 6

0

11

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-0700

Flange Nut, 9/16-18

$10.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 718-04407

Pulley Hub, 5/8 SPLINE

$12.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 732-04085

Extension Spring, .480 OD x 5.00 LG

$14.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 732-04276A

Extension Spring, LT5 PTO

$9.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 936-0119

Washer, Lock, 5/16

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0343

Washer, Flat, .330 x 1.25 x .120

$4.49

$

In Stock, Qty 7

0

20

Troy-Bilt 736-04193

Washer, Belleville, .396 x 1.140 x .095

$6.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 936-0452

Washer, Bell, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

22

Troy-Bilt 736-3092

Washer, Flat, .265 x 1.0 x .030

$3.99

$

In Stock, Qty 9

0

23

Troy-Bilt 918-04816

Transmission Assembly
(Superseded to 918-04934)

$949.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-06042

Service Transmission Kit
(Superseded to 753-06042A)

Note: (Incl. Ref No. 13, 14, 23 & 31

$995.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 738-04425

Screw, Shoulder, 1/4-28 x .342 x .335

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 748-04087A

Forward Idler Pivot Spacer

$6.49

$

In Stock, Qty 9

0

26

Troy-Bilt 750-04571

Spacer, Shoulder, .260 x .785 x .538

$6.99

$

In Stock, only 3 left!

0

27

Troy-Bilt 750-04907

Reverse Idler Pivot Spacer

$6.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 1916657

V Belt, 4L x 25.375 LG
(Superseded to 954-04090)

$20.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 1916658

V Belt, 3L x 29.125 LG
(Superseded to 954-04091)

Note: Models with reverse

$18.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 756-04198A

Engine Pulley, 3L & 4L & Honda

$55.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 756-04355

Transmission Pulley

$55.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

33

Troy-Bilt 786-04312

Forward Idler Bracket

$13.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 786-04343-0638

Cover Mounting Plate

$19.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 786-04346

Reverse Idler Bracket

$10.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 786-04357-0638

Pulley Mounting Bracket
(Superseded to 786-04357A-0638)

$11.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 786-04419-0638

LH Mount Frame
(Superseded to 986-04419B-0638)

$20.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 786-04418-0638

RH Mount Frame
(Superseded to 986-04418B-0638)

$20.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 786-04371-0638

Pulley Shield

$20.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 934-04232

Wheel, 13 x 5 x 6

Note: 650 Model Series

$172.99

$

In Stock, only 3 left!

0

40

Troy-Bilt 934-04453

Wheel Assembly, 11 x 4-4
(Superseded to 634-04453)

Note: 640 Model Series

$105.99

$

In Stock, Qty 9

0

41

Troy-Bilt 714-0143A

Klik Pin, .25 DIA x 1.56

$6.49

$

In Stock, Qty 7

0

42

$5.49

$

In Stock, Qty 11

0
