21BA413H700 - Yard Machines Tiller (2006) Gear Case Assembly Parts Diagram

Tiller

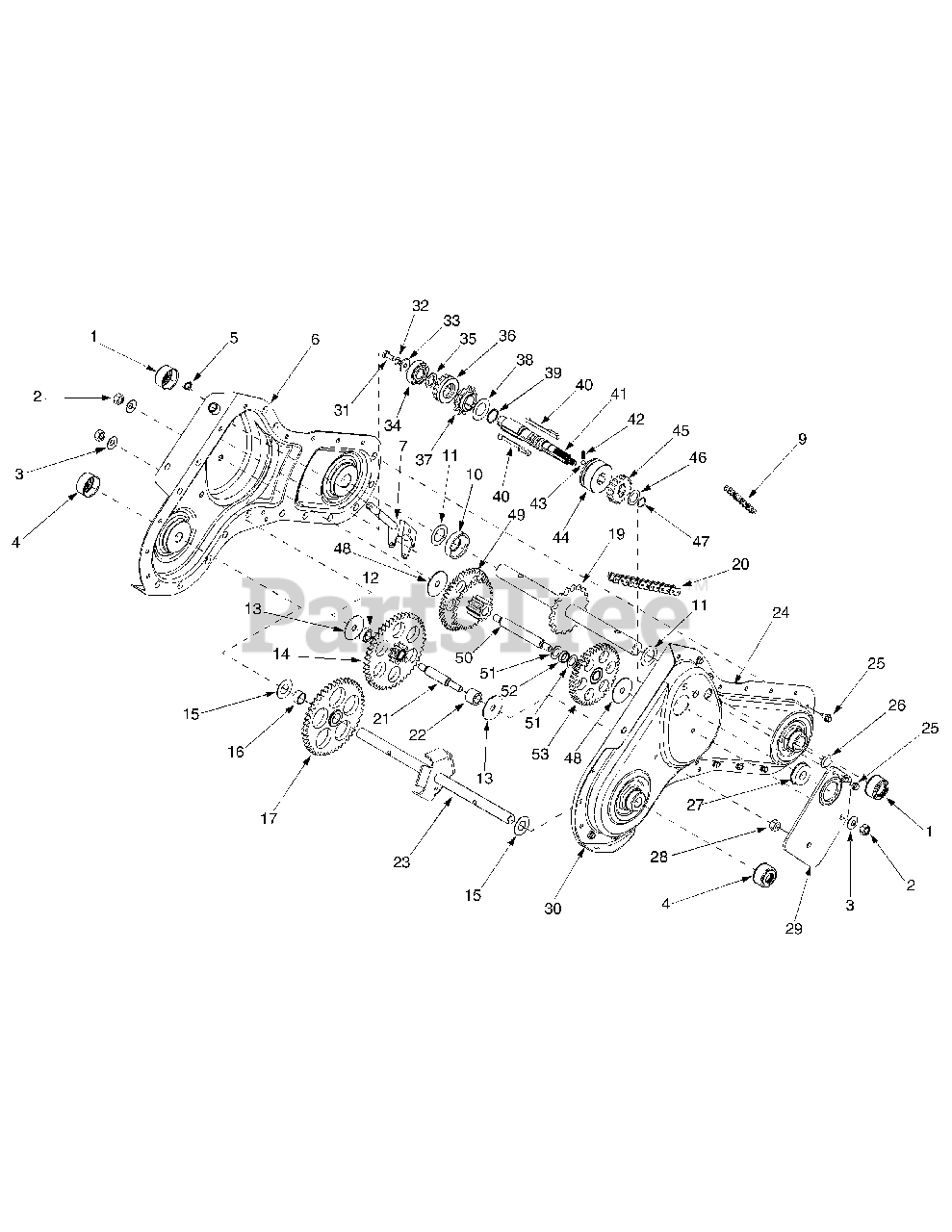

Gear Case Assembly Parts Diagram

  • Title

1

MTD 721-0378

Shaft Seal 1.0 Dia
(Superseded to 921-0378)

$18.99

$

In Stock, only 2 left!

0

2

MTD 712-0378

Hex Nut 7/16-20

$6.99

$

Usually ships in 3-6 days

0

3

MTD 736-0407

Bell Washer.45 ID x 1.0 OD

$3.99

$

In Stock, Qty 12

0

4

MTD 721-0379

Shaft Seal.75 Dia

$18.99

$

In Stock, only 2 left!

0

5

MTD 716-0865

Snap Ring.50 Dia

$4.49

$

In Stock, Qty 20+

0

6

MTD 686-0038

Gear Case Assembly - RH Half

Variations

MTD 686-0038-0637

CASE ASM-GEAR HALF - POWDER BLACK (0637)

$

$

Not available

MTD 686-0038-0638

CASE ASM-GEAR HALF - MTD/TROY-BILT RED (0638)

$

$

Not available

$214.99

$

In Stock, only 1 left!

0

7

MTD 618-0245B

Shift Assembly

$129.99

$

In Stock, only 3 left!

0

9

MTD 713-0233

Chain - #41 1/2" Pitch x 30 Links

$41.99

$

Usually ships in 3-6 days

0

10

MTD 750-0570

Space 1.0 ID x 2.0 OD
(Superseded to 950-0570)

$10.99

$

In Stock, only 4 left!

0

11

MTD 736-0163

Thrust Washer 1.03 ID x 1.62 OD

$4.49

$

In Stock, Qty 20+

0

12

MTD 750-0936

Spacer.635 ID x 1.0 OD
(Superseded to 950-0936)

$6.99

$

Usually ships in 3-6 days

0

13

MTD 736-0518

Thrust Washer.445 ID x 1.92 OD

$10.99

$

Usually ships in 3-6 days

0

14

MTD 617-0004

Idler Gear Assembly
(Superseded to 917-0004)

$165.99

$

Usually ships in 3-6 days

0

15

MTD 736-0351

Flat Washer.760 ID x 1.50 OD

$4.49

$

In Stock, Qty 20+

0

16

MTD 750-0938

Spacer.735 ID x.886 OD
(Superseded to 950-0938)

$

$

Not available

17

MTD 717-1458

Spur Gear 46T

$171.99

$

Usually ships in 3-6 days

0

19

MTD 611-0021

Tine Shaft Assembly 18T
(Superseded to 611-0021A)

$154.99

$

In Stock, only 1 left!

0

20

MTD 713-0226

Chain - #50 5/8" Pitch x 52 Links
(Superseded to 913-0226)

$102.99

$

Usually ships in 3-6 days

0

21

MTD 738-0885

Jack Shaft 5/8 Dia. X. 2.06 Lg

$

$

Not available

22

MTD 750-0935

Spacer.635 ID x 1.0 OD

$7.99

$

Usually ships in 3-6 days

0

23

MTD 611-0058

Wheel Shaft Assembly
(Superseded to 753-05577)

$

$

Not available

24

MTD 686-0039

Gear Case Assembly - LH Half
(Superseded to 986-0039-0637)

Variations

MTD 686-0039-0637

Half Gear Case Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 710-0896

Hex Washer Screw 1/4-14 x.625

$4.49

$

In Stock, Qty 20+

0

26

MTD 726-0331

Plug

$

$

Not available

27

MTD 741-0563

Ball Bearing w/Snap Ring
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

28

MTD 712-3067

Hex Patch L-Nut 7/16-20

$6.49

$

Usually ships in 3-6 days

0

29

MTD 786-0086

Reinforcement Bracket
(Superseded to 786-0086-0637)

Variations

MTD 786-0086-0637

PLATE REINFORCEMEN - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

30

MTD 721-0295

Chain Case Gasket
(Superseded to 721P0295)

$

$

Not available

31

MTD 710-0751

Hex Cap Screw 1/4-20 x.625

$3.99

$

In Stock, Qty 20+

0

32

MTD 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

33

MTD 736-0512

Flat Washer.281 ID x.875 OD

$4.49

$

Usually ships in 3-6 days

0

34

MTD 741-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

35

MTD 736-0541

Flat Washer
(Superseded to 936-0541)

$

$

Not available

36

MTD 717-1451A

Spur Gear 16T

$29.99

$

Usually ships in 3-6 days

0

37

MTD 713-0435

Sprocket 11T #41 Chain

$21.99

$

In Stock, only 2 left!

0

38

MTD 736-0265

Flat Washer.88 ID x 1.50 OD

$

$

Not available

39

MTD 716-0235

Retainer Ring
(Superseded to 916-0235)

$10.99

$

Usually ships in 3-6 days

0

40

MTD 718-0237

Clutch Key
(Superseded to 918-0237)

$

$

Not available

41

MTD 711-1087

Drive Shaft

$209.99

$

Usually ships in 3-6 days

0

42

MTD 732-0863

Compression Spring
(Superseded to 932-0863)

$4.49

$

In Stock, only 2 left!

0

43

MTD 741-0862

Detent Ball

$4.49

$

In Stock, Qty 20+

0

44

MTD 718-0234

Clutch Collar

$51.99

$

In Stock, only 2 left!

0

45

MTD 717-1409

Spur Gear 17T

$21.99

$

In Stock, only 1 left!

0

46

MTD 736-0442

Flat Washer.69 ID x 1.06 OD
(Superseded to 736-05031)

$3.49

$

Usually ships in 3-6 days

0

47

MTD 732-0614

Wire Ring

$6.49

$

In Stock, only 2 left!

0

48

MTD 736-0518

Thrust Washer.445 ID x 1.9 OD

$10.99

$

Usually ships in 3-6 days

0

49

MTD 611-0016

Intermediate Gear Assembly
(Superseded to 986-04073)

$

$

Not available

50

MTD 738-0884

Jack Shaft

$

$

Not available

51

MTD 736-0336

Flat Washer.625 ID x 1.0 OD
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

52

MTD 750-0931

Spacer.635 ID x.86 OD

$

$

Not available

53

MTD 617-0003

Tine Drive Assembly
(Superseded to 917-0003)

$

$

Not available
