21B972-0117-E1 - Briggs & Stratton Vertical Engine Carburetor Parts Diagram

Vertical Engine

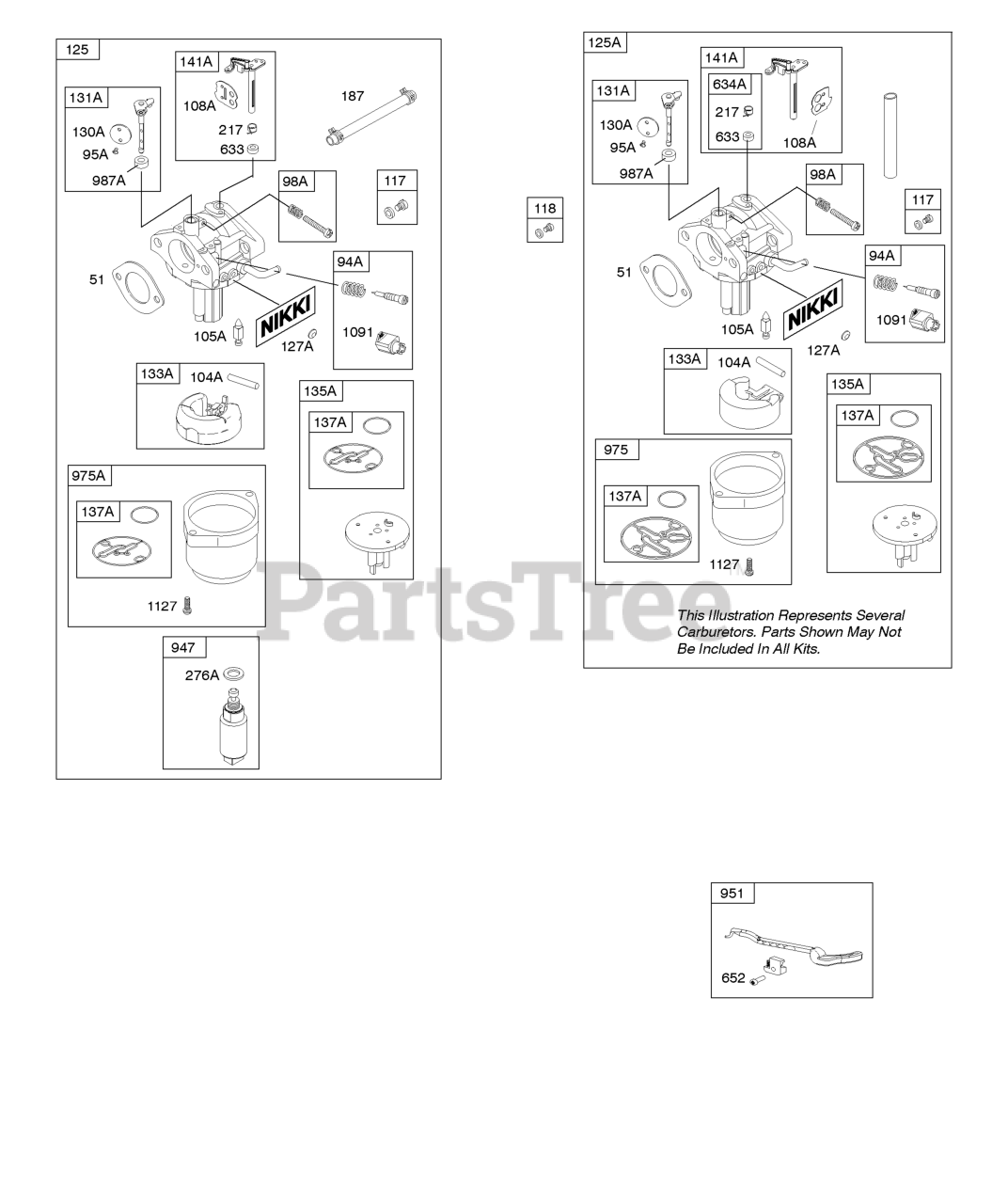

Carburetor Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

94A

Briggs & Stratton 793610

KIT, Idle Mixture

Note: (Nikki)

$20.99

$

In Stock, only 2 left!

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve) (Nikki)

$5.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 695408

KIT, Idle Speed

Note: (Nikki)

$13.99

$

In Stock, only 1 left!

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

Note: (Nikki)

$7.49

$

In Stock, only 2 left!

0

105A

Briggs & Stratton 696136

VALVE, Float Needle

Note: (Nikki)

$15.99

$

In Stock, Qty 20+

0

108A

Briggs & Stratton 698773

VALVE, Choke

Note: (Nikki)

$8.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 591936

JET, Main

Note: (Standard) Used After Code Date 08121400

$17.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 699897

Jet-Main

Note: (Standard) (Nikki) Used Before Code Date 07011500

$17.99

$

In Stock, only 1 left!

0

117

Briggs & Stratton 794352

Jet-Main

Note: (Standard) Used After Code Date 07011400 Used Before Code Date 08121500

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 791405

JET, Main

Note: (High Altitude) Used After Code Date 07011400 Used Before Code Date 08121500

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 698788

JET, Main

Note: (High Altitude) Used After Code Date 08121400

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 699898

Jet-Main

Note: (High Altitude) (Nikki) Used Before Code Date 07011500

$19.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 590400

Carburetor

Note: Used After Code Date 08121400 Used Before Code Date 13092400

$137.99

$

In Stock, Qty 10

0

127A

Briggs & Stratton 690727

PLUG, Welch

Note: (Nikki)

$4.49

$

In Stock, only 2 left!

0

130A

Briggs & Stratton 698774

VALVE, Throttle

Note: (Nikki)

$8.49

$

Usually ships in 2-12 days

0

131A

Briggs & Stratton 698776

KIT, Throttle Shaft

Note: (Nikki)

$39.99

$

In Stock, only 1 left!

0

133A

Briggs & Stratton 694914

FLOAT, Carburetor

Note: (Nikki)

$28.99

$

In Stock, Qty 8

0

135A

Briggs & Stratton 792022

Tube-Fuel Transfer

Note: (Nikki)(Pump Feed)

$49.99

$

In Stock, only 1 left!

0

135A

Briggs & Stratton 698780

Tube-Fuel Transfer

Note: (Nikki)(Gravity Feed)

$95.99

$

In Stock, only 3 left!

0

137A

Briggs & Stratton 698781

GASKET, Float Bowl

Note: (Nikki)

$9.99

$

In Stock, Qty 20+

0

141A

Briggs & Stratton 698778

KIT, Choke Shaft

Note: (Nikki)

$32.99

$

In Stock, only 1 left!

0

187

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$24.99

$

In Stock, only 1 left!

0

217

Briggs & Stratton 695409

SPRING, Choke Return

$8.99

$

In Stock, only 1 left!

0

276A

Briggs & Stratton 695410

WASHER, Sealing

Note: (Nikki)

$6.99

$

In Stock, Qty 15

0

633

Briggs & Stratton 699813

SEAL, Choke/Throttle Shaft

Note: (Nikki)

$6.99

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 698779

Spring/Seal Assembly

Note: (Nikki)

$8.99

$

In Stock, only 1 left!

0

652

Briggs & Stratton 793380

SCREW

Note: (Support Bracket)

$3.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 699915

Solenoid-Fuel
(Superseded to 596038)

$79.99

$

In Stock, Qty 20+

0

951

Briggs & Stratton 793386

KIT, Choke Shaft

Note: Used Before Code Date 08121500

$13.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 698783

BOWL, Float

Note: (Nikki Without Solenoid)

$30.99

$

Usually ships in 2-12 days

0

975A

Briggs & Stratton 699502

BOWL, Float

Note: (Includes Solenoid)

$45.99

$

Usually ships in 2-12 days

0

987A

Briggs & Stratton 698777

Seal-Throttle Shaft
(Superseded to 690998)

$7.99

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl to Carburetor Body)

$4.49

$

In Stock, Qty 20+

0
