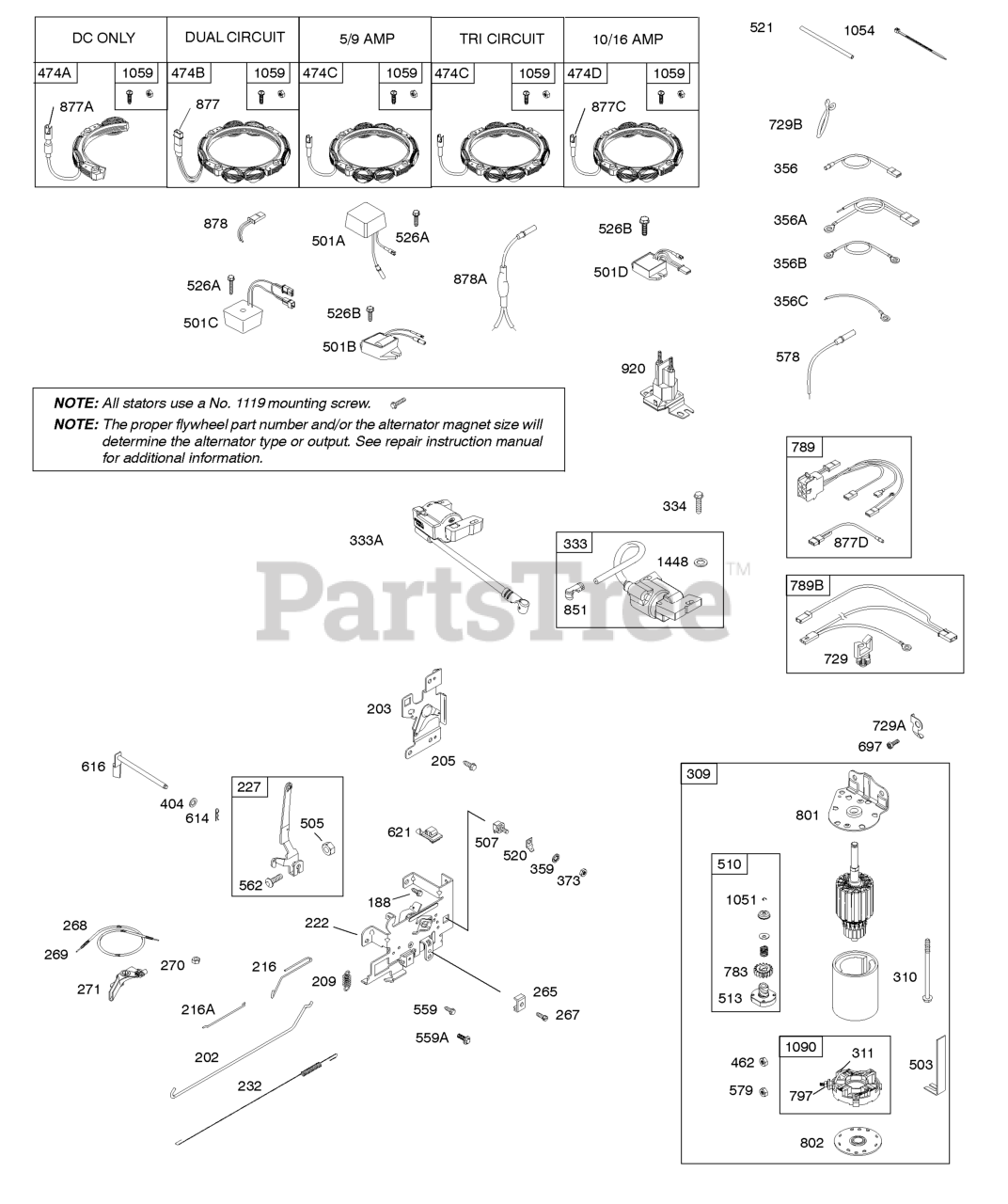

21B972-0117-E1 - Briggs & Stratton Vertical Engine Alternator, Controls, Electric Starter, Governor Spring, Ignition Parts Diagram

Vertical Engine

Alternator, Controls, Electric Starter, Governor Spring, Ignition Parts Diagram

  • Title

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 12

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$9.49

$

In Stock, Qty 17

0

203

Briggs & Stratton 691381

Crank-Bell

$36.99

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 691693

SCREW

Note: (Bell Crank)

$3.99

$

In Stock, Qty 12

0

209

Briggs & Stratton 792602

SPRING, Governor

$3.49

$

In Stock, only 2 left!

0

216

Briggs & Stratton 691840

LINK, Choke

$8.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$26.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$11.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 794904

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 693551

Motor-Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

333

Briggs & Stratton 799650

Armature-Magneto
(Superseded to 595304)

$45.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 697397

Wire-Stop

$12.99

$

Usually ships in 2-12 days

0

356A

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

356B

Briggs & Stratton 697089

WIRE, Stop

$11.99

$

Usually ships in 2-12 days

0

356C

Briggs & Stratton 399222

Wire-Stop

$4.99

$

Usually ships in 2-12 days

0

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

462

Briggs & Stratton 691261

WASHER

Note: (Starter Cable)

$3.99

$

In Stock, only 3 left!

0

474A

Briggs & Stratton 696578

Alternator
(Superseded to 592828)

Note: (DC Only)

$124.99

$

Usually ships in 2-12 days

0

474B

Briggs & Stratton 592831

ALTERNATOR

Note: (Dual Circuit)

$101.99

$

In Stock, Qty 8

0

474D

Briggs & Stratton 696458

Alternator
(Superseded to 592830)

Note: (10-16 Amp Regulated)

$101.99

$

In Stock, Qty 20+

0

474C

Briggs & Stratton 592829

ALTERNATOR

Note: (Tri Circuit Or 5/9 Amp. Regulated)

$102.99

$

Usually ships in 2-12 days

0

501A

Briggs & Stratton 794360

REGULATOR

Note: (5/9 Amp. Regulated)

$64.99

$

In Stock, only 2 left!

0

501D

Briggs & Stratton 845907

REGULATOR

Note: (10-16 Amp Regulated)

$61.99

$

In Stock, Qty 20+

0

501B

Briggs & Stratton 698315

REGULATOR

Note: 9 Amp Battery-Less

$95.99

$

Usually ships in 2-12 days

0

501C

Briggs & Stratton 790292

Regulator

Note: (Dual Circuit)

$65.99

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 3 left!

0

510

Briggs & Stratton 693699

DRIVE, Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 20+

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 3 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 2 left!

0

521

Briggs & Stratton 690581

Shield-Cable

$12.99

$

Usually ships in 2-12 days

0

526A

Briggs & Stratton 697088

SCREW

Note: (Regulator) (5/9 Amp. Regulated)

$4.99

$

Usually ships in 2-12 days

0

526B

Briggs & Stratton 697348

SCREW

Note: (Regulator) 9 Amp Battery-Less

$3.99

$

Usually ships in 2-12 days

0

559

Briggs & Stratton 697561

Screw

Note: (Remote Choke Stop) (Length .375 Inches)

$3.99

$

In Stock, only 1 left!

0

559A

Briggs & Stratton 693675

Screw

Note: (Remote Choke Stop) (Length .419 Inches)

$3.99

$

In Stock, only 1 left!

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

578

Briggs & Stratton 692306

WIRE ASSEMBLY

$17.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 2 left!

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

697

Briggs & Stratton 791680

SCREW

Note: (Starter Motor) (Drive Cap)

$3.99

$

In Stock, Qty 6

0

729

Briggs & Stratton 691335

Clip-Wire

Note: (Wire Retainer)

$4.99

$

Usually ships in 2-12 days

0

729A

Briggs & Stratton 691224

CLIP, Wire

Note: (Starter Motor)

$4.99

$

Usually ships in 2-12 days

0

729B

Briggs & Stratton 694123

Clip-Wire

Note: (Wire Retainer)

$4.49

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

$26.99

$

In Stock, only 1 left!

0

789

Briggs & Stratton 698329

HARNESS, Wiring

$36.99

$

In Stock, Qty 5

0

789B

Briggs & Stratton 692037

HARNESS, Wiring

$35.99

$

In Stock, only 1 left!

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

CAP, Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

Note: (Dual Circuit)

$20.99

$

In Stock, only 1 left!

0

877A

Briggs & Stratton 393814

Wire/Connector-Alternator

Note: (DC Only)

$18.99

$

In Stock, only 2 left!

0

877D

Briggs & Stratton 790544

WIRE/CONNECTOR, Alternator

$43.99

$

Usually ships in 2-12 days

0

877C

Briggs & Stratton 399916

Wire/Connector-Alternator

Note: (10-16 Amp Regulated)

$12.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 398661

Harness-Alternator

$34.99

$

Usually ships in 2-12 days

0

878A

Briggs & Stratton 691955

Harness-Alternator

$69.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 20+

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0

1448

Briggs & Stratton 690260

Washer

Note: (Magneto Armature)

$8.99

$

In Stock, only 2 left!
