21B-643B066 - Troy-Bilt Super Bronco CRT Rear-Tine Tiller (2007) Transmission Parts Diagram

Super Bronco CRT Rear-Tine Tiller

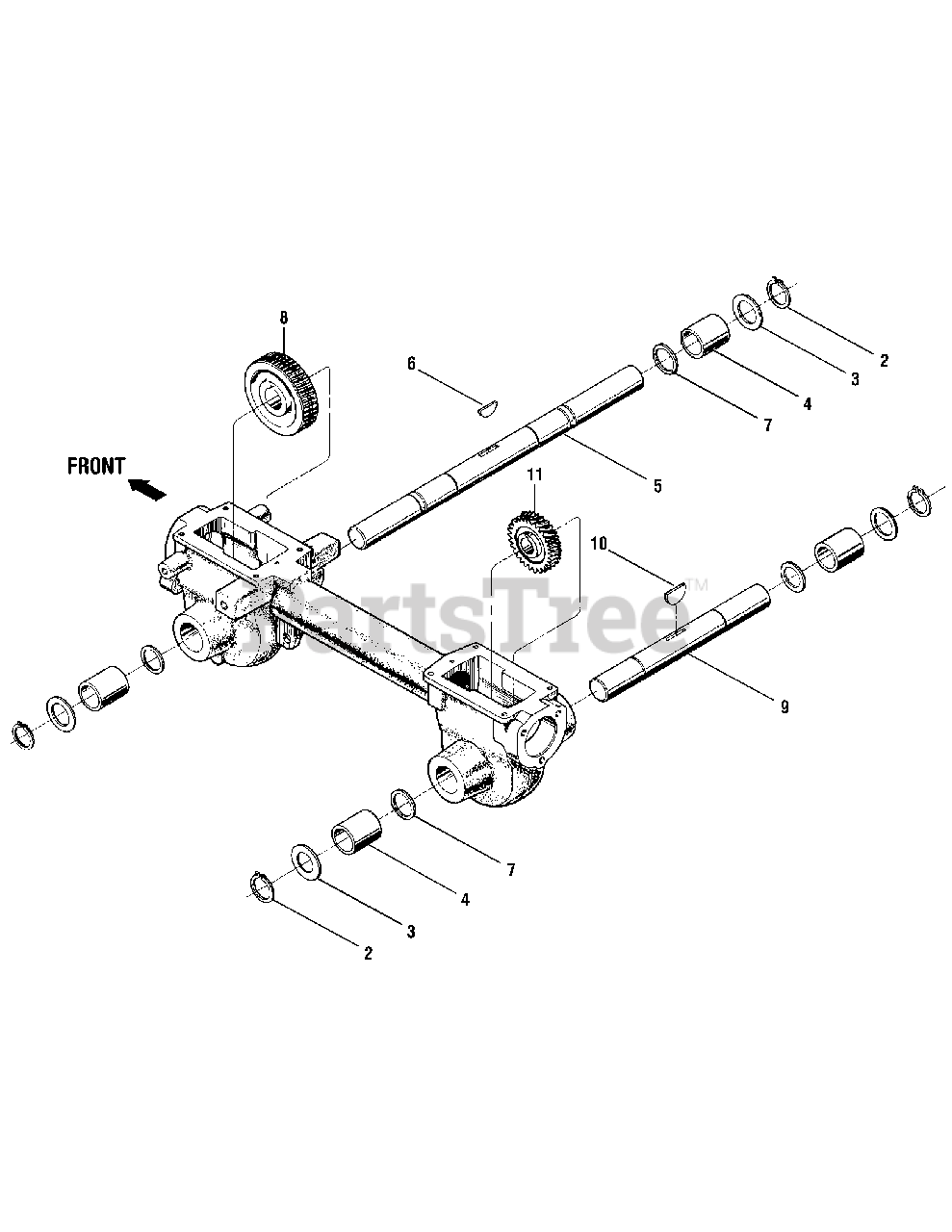

Transmission Parts Diagram

  • Title
2

Troy-Bilt 1909950

Retainer, Snap Ring
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-1166-1

Shim, 0.062" thick
(Superseded to 736-04309)

Note: Use as required to obtain between .005" and .030" allowable end-play

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-1166-2

Shim, 0.030" thick
(Superseded to 736-04260)

Note: Use as required to obtain between .005" and .030" allowable end-play

$6.99

$

In Stock, only 2 left!

0

3

Troy-Bilt GW-1166-3

Shim, 0.015" thick
(Superseded to 736-04259)

Note: Use as required to obtain between .005" and .030" allowable end-play

$6.99

$

In Stock, Qty 5

0

3

Troy-Bilt GW-1166-4

Shim, 0.010" thick
(Superseded to 736-04258)

Note: Use as required to obtain between .005" and .030" allowable end-play

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-1166-5

Shim, 0.005" thick
(Superseded to 736-04257)

Note: Use as required to obtain between .005" and .030" allowable end-play

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt GW-1086

Bronze Bushing
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 8

0

5

Troy-Bilt 711-04512

Wheel Shaft
(Superseded to 911-04512)

Note: Bronco Model

$

$

Not available

5

Troy-Bilt 711-04092

Wheel Shaft
(Superseded to 753-05578)

Note: Super Bronco Model

$406.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 711-04486

Wheel Shaft
(Superseded to 911-04486)

Note: Pro-Line Model

$71.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt GW-9305

Key, Hi-Pro, 1/4 x 1
(Superseded to 714-04059)

$6.99

$

In Stock, Qty 8

0

7

Troy-Bilt GW-1132-2

Spacer
(Superseded to 736-04310)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 717-04380

Worm Gear, Wheel Shaft
(Superseded to 917-04380)

$157.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 711-04078

Tiller Shaft
(Superseded to 911-04078)

$141.99

$

In Stock, only 2 left!

0

10

Troy-Bilt GW-1104

Woodruff Key

$9.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 717-04381

Worm Gear, Tiller Shaft
(Superseded to 917-04381)

$145.99

$

In Stock, only 3 left!

0
