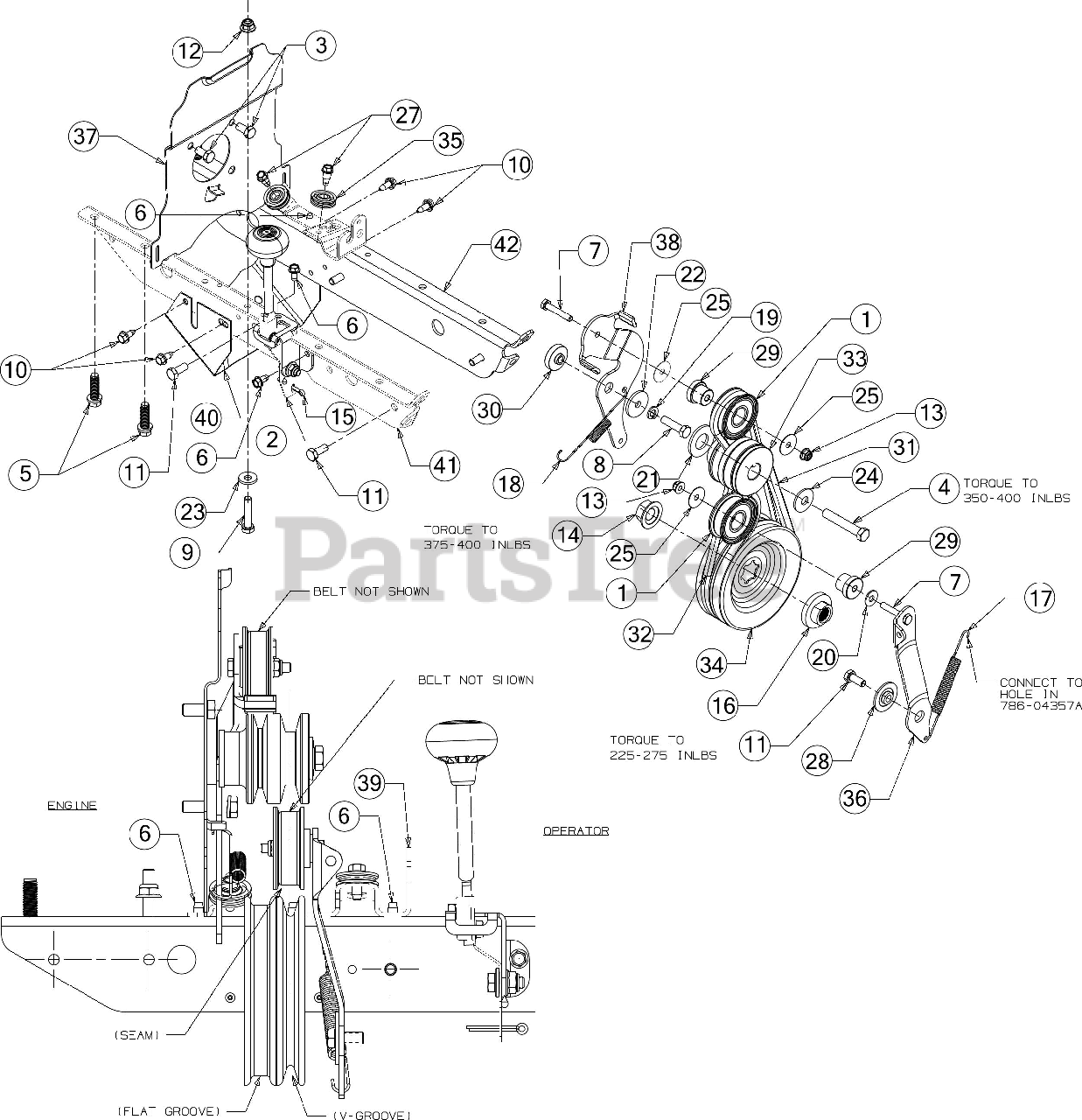

21B-34M8711 - Troy-Bilt Colt Front-Tine Tiller (2016) Transmission Drive Assembly Parts Diagram

Colt Front-Tine Tiller

Transmission Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 684-04168

IDLER PULLEY ASSEMBLY

$38.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 790-00230

BEARING SLEEVE

$7.49

$

Usually ships in 3-6 days

0

1

Troy-Bilt 941-0919B

BALL BEARING

$21.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 720-04028

SHIFT KNOB

$10.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 747-05224

SHIFT ROD

$10.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 786-04412

WHEEL DRIVE PIVOT BRACKET

$84.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-1880

SCREW 5/16-18 X .750

$4.99

$

In Stock, Qty 11

0

2

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 748-04232

PIVOT BRACKET SPACER

$5.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 786-04413-0637

WHEEL DRIVE MOUNT BRACKET

$48.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0170

HEX SCREW 5/16-24 X .62

$6.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 710-0331

HEX SCREW 3/8-24 X 2.25 GR5

$6.99

$

In Stock, Qty 7

0

5

Troy-Bilt 710-0502A

SCREW 3/8-16 X 1.250

$6.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0606

SCREW 1/4-20 X 1.50 GR.5

$5.49

$

In Stock, Qty 9

0

8

Troy-Bilt 710-0672

SCREW 5/16-24 X 1.25 GR5

$4.49

$

In Stock, Qty 18

0

9

Troy-Bilt 710-0805A

SCREW 5/16-18 X 1.5 LG

$4.49

$

In Stock, only 3 left!

0

10

Troy-Bilt 710-0896

SCREW 1/4-14 X .625

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-1880

SCREW 5/16-18 X .750

$4.99

$

In Stock, Qty 11

0

12

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-0700

FLANGE NUT W/HUB

$10.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 718-04407

PULLEY HUB

$12.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 732-04085

RETURN SPRING

$14.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 732-04276A

EXTENSION SPRING

$9.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 936-0119

LOCK WASHER 5/16

$4.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-0173

FLAT WASHER .28 ID X .74 OD X .063

$4.49

$

In Stock, only 4 left!

0

21

Troy-Bilt 736-0315

FLAT WASHER

$6.99

$

In Stock, Qty 6

0

22

Troy-Bilt 736-0343

WASHER-5/16 X 1.25X 1.27

$4.49

$

In Stock, Qty 7

0

23

Troy-Bilt 736-04193

BELLVILLE WASHER .827 X .331 X .098

$6.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 936-0452

BELL WASHER
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 7

0

25

Troy-Bilt 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 9

0

27

Troy-Bilt 738-04425

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 748-04087A

PIVOT IDLER SPACER

$6.49

$

In Stock, Qty 9

0

29

Troy-Bilt 750-04571

SHOULDER SPACER

$6.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 750-04907

PIVOT IDLER SPACER

$6.49

$

Usually ships in 3-6 days

0

31

Troy-Bilt 954-04090

V-BELT FWD DRIVE 4L X 25.375

$20.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 954-04091

V-BELT REV DRIVE 3L X 29.125

$18.99

$

In Stock, Qty 5

0

33

Troy-Bilt 756-04198A

ENGINE PULLEY

$55.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 756-04355

TRANSMISSION PULLEY

$55.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 756-0625

CABLE GUIDE ROLLER

$9.49

$

In Stock, Qty 16

0

36

Troy-Bilt 786-04312

FORWARD IDLER BRACKET

$13.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 786-04343-0638

REVERSE IDLER BRACKET

$19.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 786-04346

REVERSE IDLER BRACKET

$10.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 786-04357A-0638

CABLE BRACKET ROLLER

$11.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 786-04371-0638

PULLEY SHIELD

$20.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 786-04415D-0638

FRAME (LH)

$28.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 786-04416B-0638

FRAME (RH) 400/460/480/VTT

$29.99

$

Usually ships in 3-6 days

0
