21B-34M8711 - Troy-Bilt Colt Front-Tine Tiller (2016) Transmission Assembly Parts Diagram

Colt Front-Tine Tiller

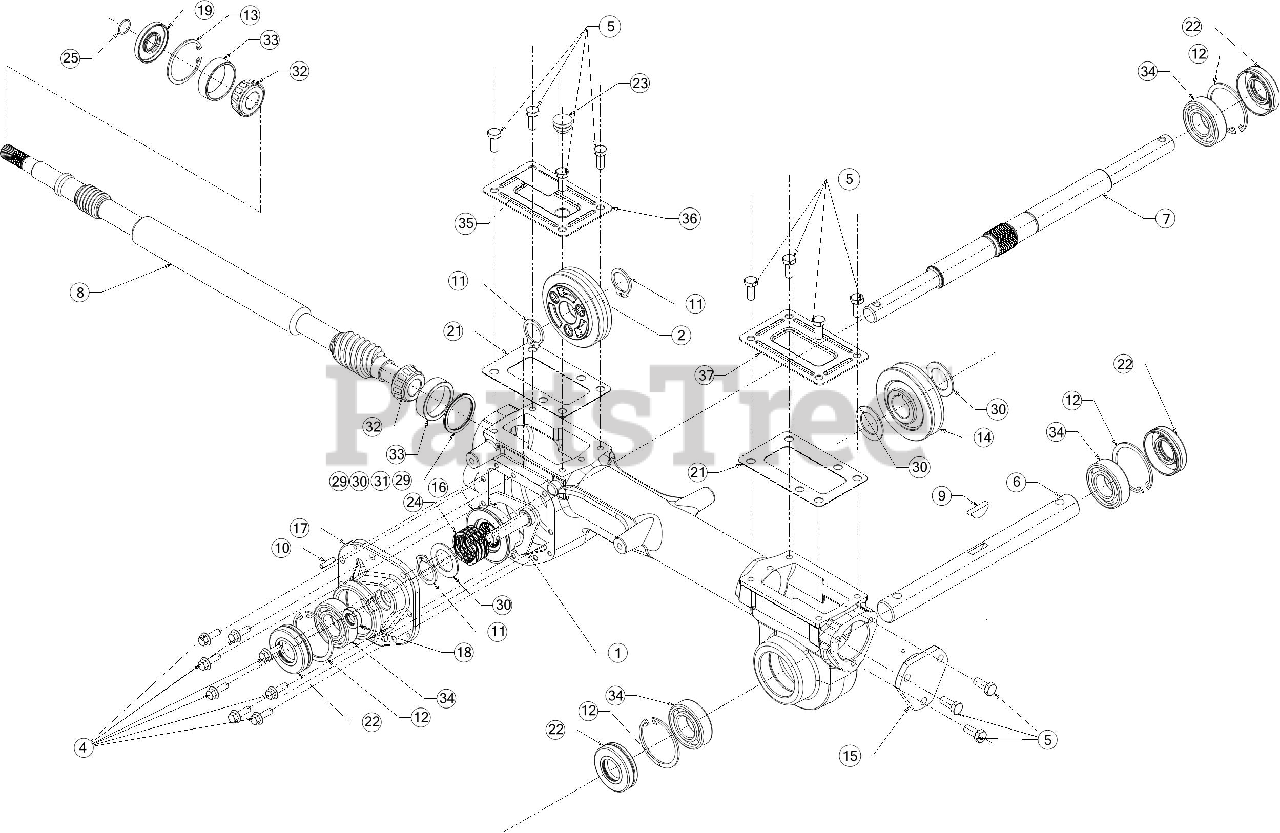

Transmission Assembly Parts Diagram

  • Title
1

MTD 611-04130

WHEEL DRIVE SHAFT YOKE ASSEMBLY

$56.99

$

Usually ships in 3-6 days

0

2

MTD 617-04080P

WORM GEAR ASSEMBLY

$197.99

$

Usually ships in 3-6 days

0

2

MTD 710-04985

SCREW 5/16-18X.625

$4.99

$

Usually ships in 3-6 days

0

3

MTD 919-04242A

TILLER TRANSMISSION HOUSING

$317.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-04666

SCREW 1/4-20 X .75 GR5

$6.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 710-3008

SCREW 5/16-18 X .75 GR5

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 911-04844

TILLER SHAFT

$84.99

$

In Stock, only 2 left!

0

7

MTD 911-05123

WHEEL AXLE SHAFT

$98.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 911-05189

WORM DRIVE SHAFT

$129.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 714-04059

KEY-HI PRO .25 X 1

$6.99

$

In Stock, Qty 8

0

10

Troy-Bilt 915-0221

DOWEL PIN

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 716-0127

RETAINING RING

$12.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 716-0204

RETAINING RING

$6.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 716-04102

RETAINING RING

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 917-04383

WORM GEAR 30 T

$153.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 918-04435

BEARING COVER

$22.99

$

Usually ships in 3-6 days

0

16

MTD 718-04541

DISCONNECT COLLAR

$19.99

$

Usually ships in 3-6 days

0

17

MTD 919-04493A

TILLER HOUSING COVER

$51.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 721-0393

OIL SEAL .5000 X .8750 X .2500

$12.99

$

In Stock, Qty 6

0

19

Troy-Bilt 921-04030

OIL SEAL .750 SHF X 1.783

$12.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 921-04229

GEAR HOUSING GASKET

$6.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 721-04232

OIL SEAL 1.00 SHF X 2.00 BORE

$16.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 721-04271

RUBBER OIL PLUG

$5.49

$

In Stock, Qty 11

0

24

MTD 732-04603

WHEEL DRIVE SPRING

$11.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 732-0614

WIRE RING

$6.49

$

In Stock, only 2 left!

0

26

Troy-Bilt 736-04305

FLAT WASHER 1.500X1.750X.062

Note: (Not Shown)

$3.99

$

In Stock, Qty 16

0

27

Troy-Bilt 736-04306

FLAT WASHER 1.500X1.750X.005

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 736-04307

FLAT WASHER 1.500X1.750X.030

Note: (Not Shown)

$4.49

$

In Stock, only 3 left!

0

29

Troy-Bilt 736-04308

FLAT WASHER 1.500X1.750X0.010

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 736-0745

WASHER 1.010X1.560X.060

$12.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 941-04298

BEARING CONE

$16.99

$

In Stock, Qty 19

0

33

Troy-Bilt 941-04299

BEARING CUP

$6.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 741-3114

BALL BEARING

$26.99

$

In Stock, Qty 20+

0

35

N/A

LABEL

Note: (Not Serviceable)

$

$

Not available

36

Troy-Bilt 786-04366

TRANSMISSION COVER

$21.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 786-04392

TRANSMISSION COVER
(Superseded to 786-04392-0637)

$19.99

$

Usually ships in 3-6 days

0
