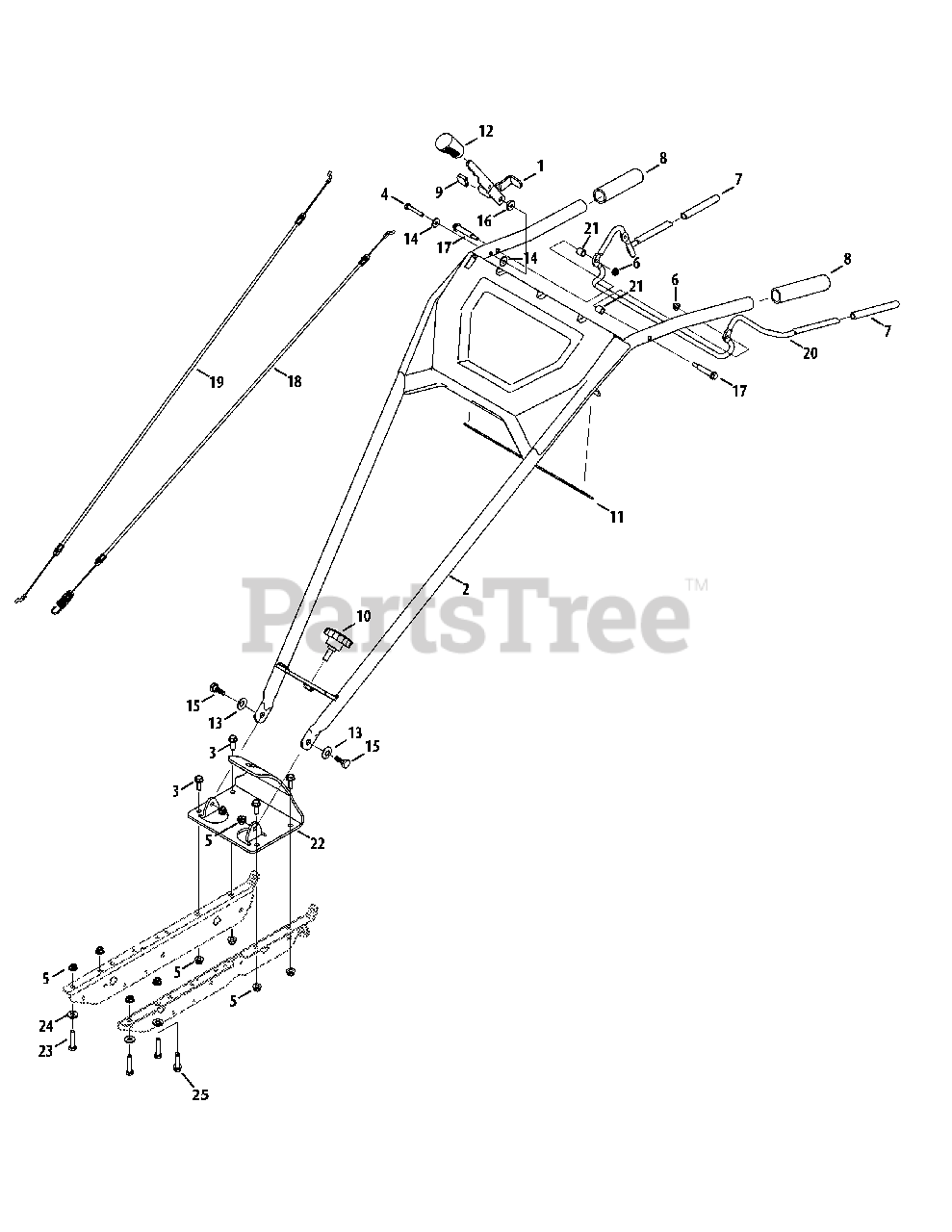

21AE692K766 - Troy-Bilt Pony Rear-Tine Tiller (2015) Handle Assembly Parts Diagram

Pony Rear-Tine Tiller

Handle Assembly Parts Diagram

  • Title
1

Troy-Bilt 686-04135-0638

Reverse Handle Assembly

$25.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 686-05007

Handle Panel Assembly
(Superseded to 686-05007A)

Variations

Troy-Bilt 686-05007-0638

HANDLE ASM-TILLER - MTD/TROY-BILT RED (0638)

$190.99

$

Usually ships in 3-6 days

0

$153.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-1238

Hex Head Washer, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-3288

Hex Head Screw, 1/4-20 x 1.62

$6.99

$

In Stock, Qty 12

0

5

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 720-0269

Clutch Grip

$4.99

$

In Stock, only 1 left!

0

$11.99

$

In Stock, Qty 11

0

9

Troy-Bilt 920-04173

Reverse Handle Grip

$4.49

$

In Stock, only 3 left!

0

10

Troy-Bilt 720-05076

Star Knob, 3/8-16

$18.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 721-04687

Foam Tape, 1.25 x 13.53 x .10

$12.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 731-04735

Reverse Handle Grip

$20.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 736-0407

Bell Washer, .45 x 1.00 x .062

$3.99

$

In Stock, Qty 12

0

14

Troy-Bilt 936-0176

Washer, Flat, .250 x .750 x .119
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 938-0296

Shoulder Screw, .437 x .268 x 5/16-18
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 738-0440

Spacer, .375 x .165

$5.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 738-05077

Shoulder Screw, 1/4-20 .375 x 1.62

$5.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 946-04413A

Forward Cable

$35.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 946-04414A

Reverse Cable

$38.99

$

In Stock, only 3 left!

0

20

$38.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 750-06198

Spacer, .383 x .500 x .535

$6.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 786-05015-0638

Height Adjustment Mounting Plate

$44.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 710-0805A

Hex Head Screw, 5/16-18 x 1.50

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-04193

Washer, .396 x 1.140 x .095

$6.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 710-0502A

Screw, 3/8-16 x 1.250 (B&S)

$6.99

$

In Stock, only 2 left!

0
