21AE686N063 - Troy-Bilt Rear-Tine Tiller (2003) Forward Interlock System Parts Diagram

Rear-Tine Tiller

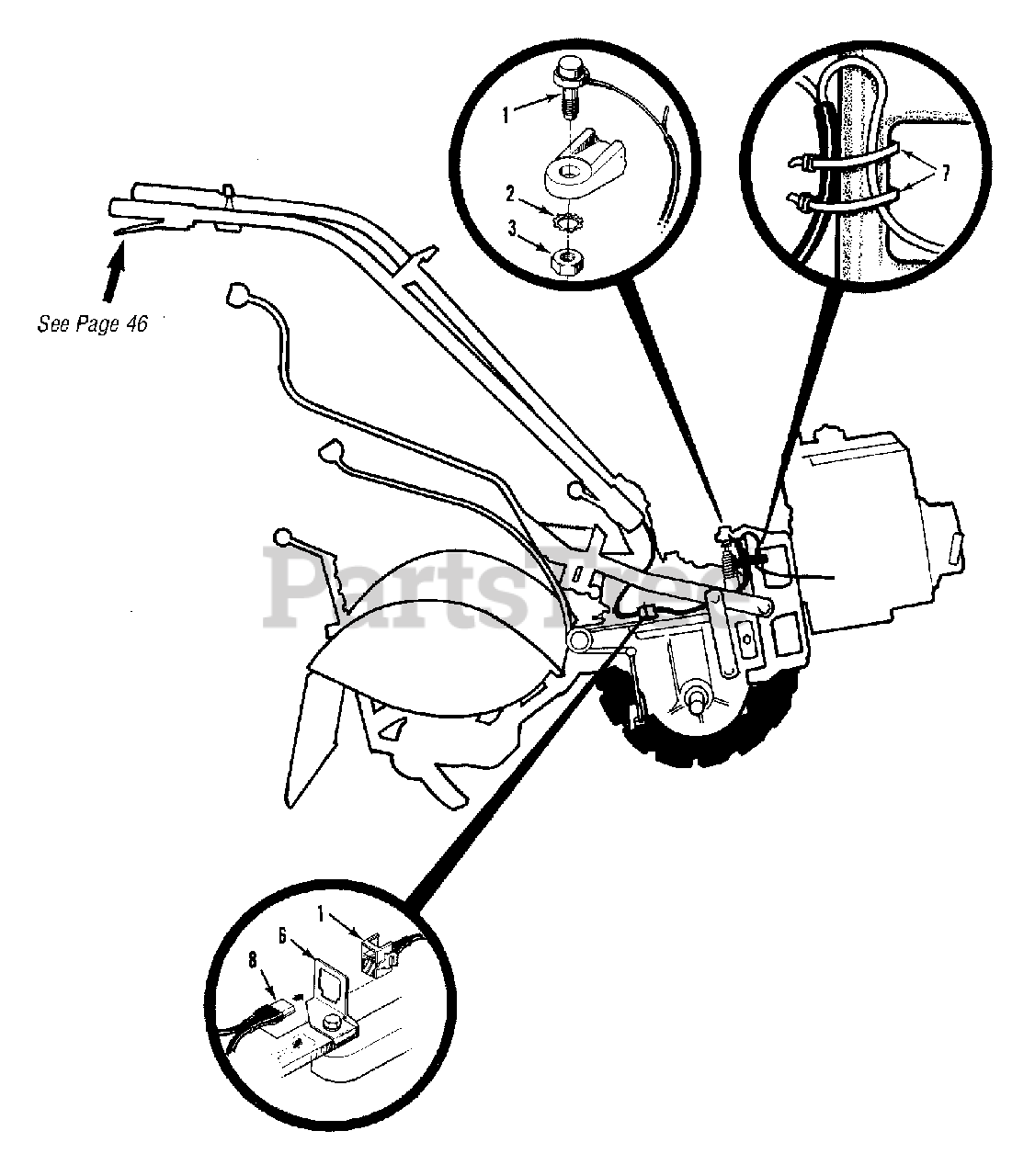

Forward Interlock System Parts Diagram

  • Title

1

Troy-Bilt 629-04017

Engine Wire Harness Assy-forward interlock system
(Superseded to 929-04017)

Note: (Incl. one red and one black wire, plug connector, neutral switch and PVC tubing. Parts not available separately)

$

$

Not available

2

Troy-Bilt GW-9971

Lockwasher-external tooth, 7/16"

$

$

Not available

3

Troy-Bilt 1186246

Nut-hex, 7/16"-20

$

$

Not available

6

MTD GW-9205

Clip-for plug connector

$

$

Not available

7

Troy-Bilt 725-0157

Tie-plastic

$3.99

$

In Stock, only 2 left!

0

8

Troy-Bilt GW-2551

Handlebar Wire Harness Assy

Note: (See "Wheel Speed Lever, Belt Drive System, Engines, Wheels", Ref. No. 20)

$

$

Not available
