21AE686N063 - Troy-Bilt Rear-Tine Tiller (2003) Bolo Tine Assemblies Parts Diagram
Rear-Tine Tiller

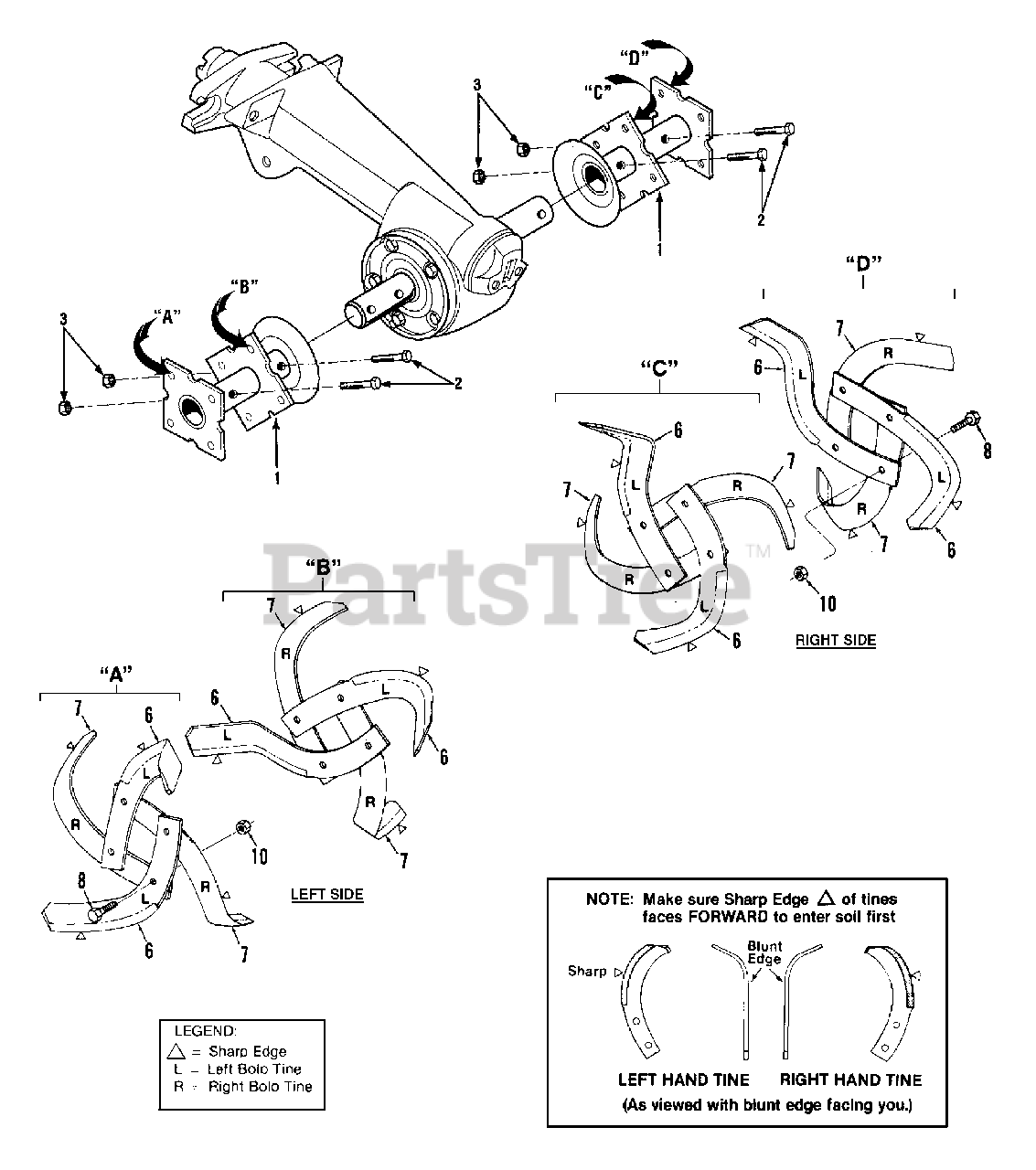

Bolo Tine Assemblies Parts Diagram
$
$
Not available
Troy-Bilt 1901975
$107.99
$
Troy-Bilt 710-3096
$7.99
$
Troy-Bilt 712-3000
$4.49
$
Troy-Bilt GW-1270-1A
Note: Used on left and right side tine assy. Tine is stamped either "EL" or "AL". (incl Ref 8 & 10, two each)
$
$
Not available
Troy-Bilt GW-1270-2A
Note: Used on left and right side tine assy. Tine is stamped either "ER" or "AR"(incl Ref 8 & 10, two each)
$
$
Not available
Troy-Bilt 710-3005
$3.99
$
Troy-Bilt 712-0375
$4.49
$
Troy-Bilt 290-253-081
Note: (Incl. eight each of Ref. No.'s 6, and 7, sixteen each of Ref. No.'s 8 and 10). Includes easy-to-follow installation instruction. DOES NOT INCLUDE tine holders, holder mounting hardware, or tine shaft keys
$
$
Currently unavailable
Note: Special hard-faced, high-chrome carbon alloy tines that are thicker than standard Bolo Tines. These tines better resist the abrasive action of rocky, gritty or sandy soil as compared to standard Bolo Tines, and are especially s
$
$
Not available
Troy-Bilt GW-10802
Note: (Incl. eight each of Part GW-2475-1 and GW-2475-2 tines and sixteen each of Ref. No.'s 8 and 10
$
$
Not available
$54.99
$
$58.99
$
