21AE683G766 - Troy-Bilt Rear-Tine Tiller (2007) Tine Hood Parts Diagram

Rear-Tine Tiller

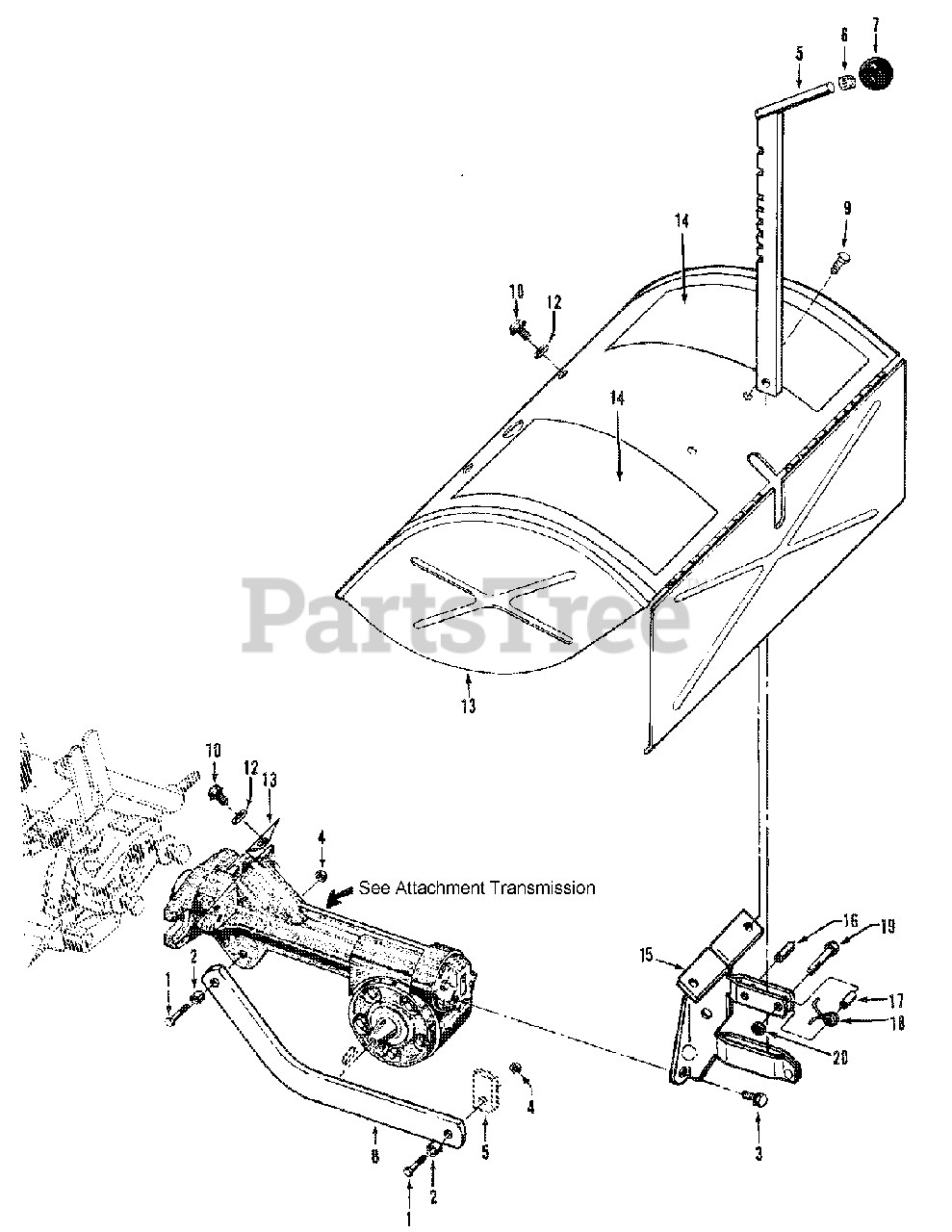

Tine Hood Parts Diagram

  • Title

1

Troy-Bilt 710-3005

Bolt-hex hd., 3/8-16 x 1-1/4"

$3.99

$

In Stock, Qty 9

0

2

Troy-Bilt GW-1113-1

Bushing-19/64" (.300" lg.)
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04049

Bolt-flanged hex, 5/16-18 x 5/8"

$4.99

$

In Stock, Qty 11

0

4

Troy-Bilt 712-04065

Nut-hex, 3/8"-16

$3.99

$

In Stock, Qty 16

0

5

Troy-Bilt 1900864

Bar-depth regulator

$86.99

$

In Stock, only 4 left!

0

6

Troy-Bilt GW-9120

Ring-retaining

$6.99

$

In Stock, only 1 left!

0

7

Troy-Bilt GW-9119

Knob-depth regulator

$11.99

$

In Stock, only 1 left!

0

8

Troy-Bilt GW-2121

Bar-drag, depth regulator
(Superseded to 1900867001)

$34.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-0599

Screw-thread-forming,1/4-20 x 1/2"

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-04043

Bolt-flanged hex hd.,5/16-18 x 3/4"

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt GW-9929

Washer-flat, 5/16"

$3.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1904563

Hood

$426.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 777I22027

Decal-hood, operating inst. (LH)

$36.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 777S32049

Decal-hood, operating inst. (RH)

$32.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt GW-2525

Bracket

$97.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 715-04034

Pin-roll (spirol) 1/4" x 1"

$6.99

$

In Stock, only 3 left!

0

17

Troy-Bilt 750-04556

Spacer, Spilt

$6.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 732-04320

Spring

$4.49

$

In Stock, Qty 11

0

19

Troy-Bilt 710-0597

Bolt-hex hd., 1/4-20 x 1"

$3.99

$

In Stock, Qty 14

0

20

Troy-Bilt 712-04064

Locknut-1/4"-20

$3.99

$

In Stock, Qty 20+

0
