21AE683G766 - Troy-Bilt Rear-Tine Tiller (2007) PTO Drive Assembly Parts Diagram

Rear-Tine Tiller

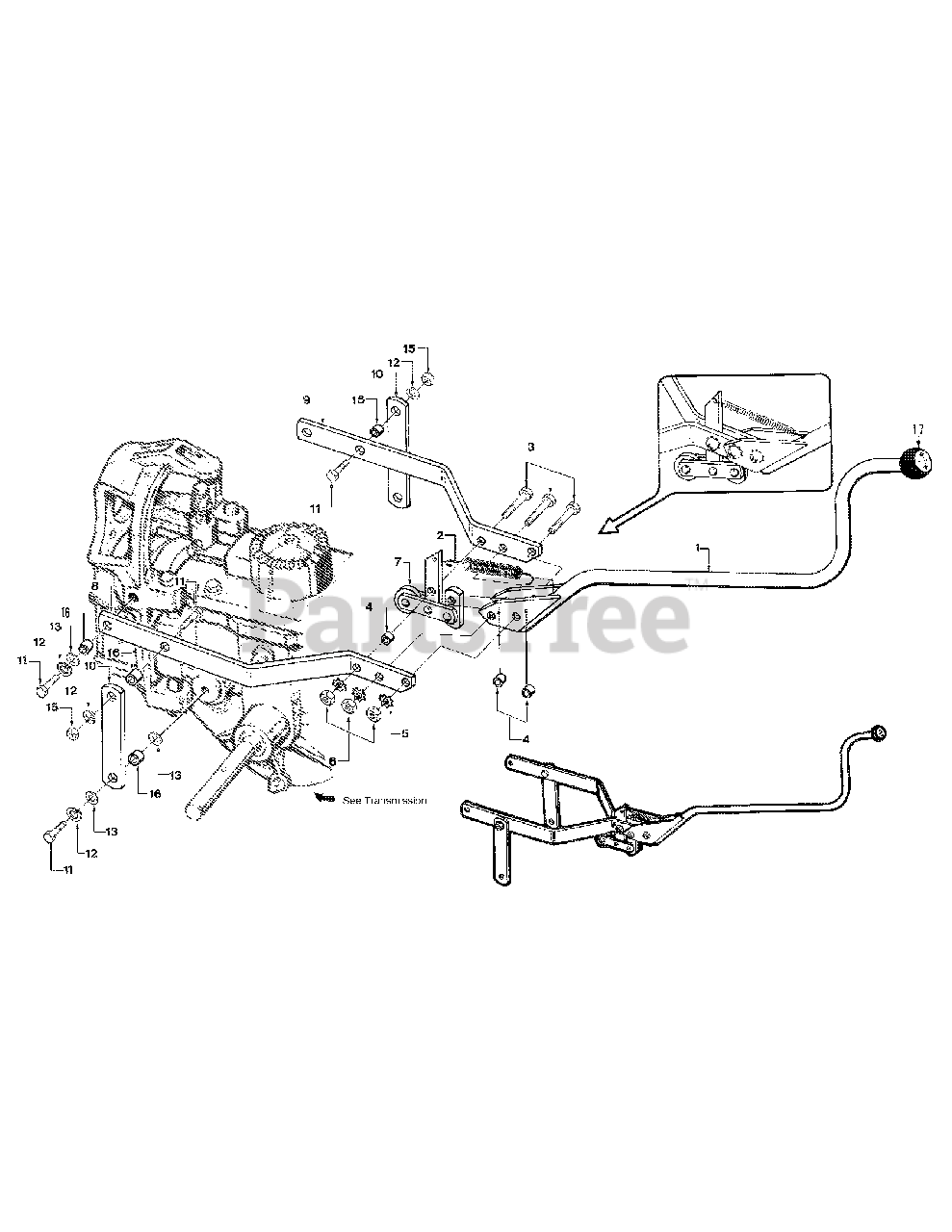

PTO Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 647-04006

Lever Assembly-Wheels/Tines/PTO Drive (Includes Ref. 17)

$134.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 1908156

Spring-clutch pawl

$15.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0805

Bolt-hex hd.,5/16-18 x 1-1/2"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt GW-2447

Bushing-3/8"

$6.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 1177548

Lockwasher external tooth, 5/16"
(Superseded to 736-0607)

Note: .

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-3010

Nut,hex, 5/16"-18

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 686-04006

Roller Assembly

Variations

Troy-Bilt 686-04006-0638

Roller Assembly, Horse - MTD/TROY-BILT RED (0638)

$93.99

$

In Stock, only 1 left!

0

$93.99

$

In Stock, only 1 left!

0

8

Troy-Bilt GW-2165-1

Yoke, left side
(Superseded to 1900468010)

$47.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt GW-2165-2

Yoke, right side
(Superseded to 1900469010)

$42.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt GW-2164

Link, yoke pivot, left & right, 6-7/8" long
(Superseded to 1900860001)

$16.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 710-0514

Bolt-hex hd., 3/8-16 x 1"

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 736-0169

Lockwasher, spring lock, 3/8"

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-3050

Washer flat, 3/8", S.A.E.

$4.49

$

In Stock, Qty 16

0

15

Troy-Bilt 712-3017

Nut hex, 3/8"-16

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt GW-1113-1

Bushing, spacer, 19/64" (.300")
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

17

Troy-Bilt GW-2595

Knob
(Superseded to GW-2595099)

$17.99

$

Usually ships in 3-6 days

0
