21AE683G766 - Troy-Bilt Rear-Tine Tiller (2007) Electric Starter Assembly Parts Diagram

Rear-Tine Tiller

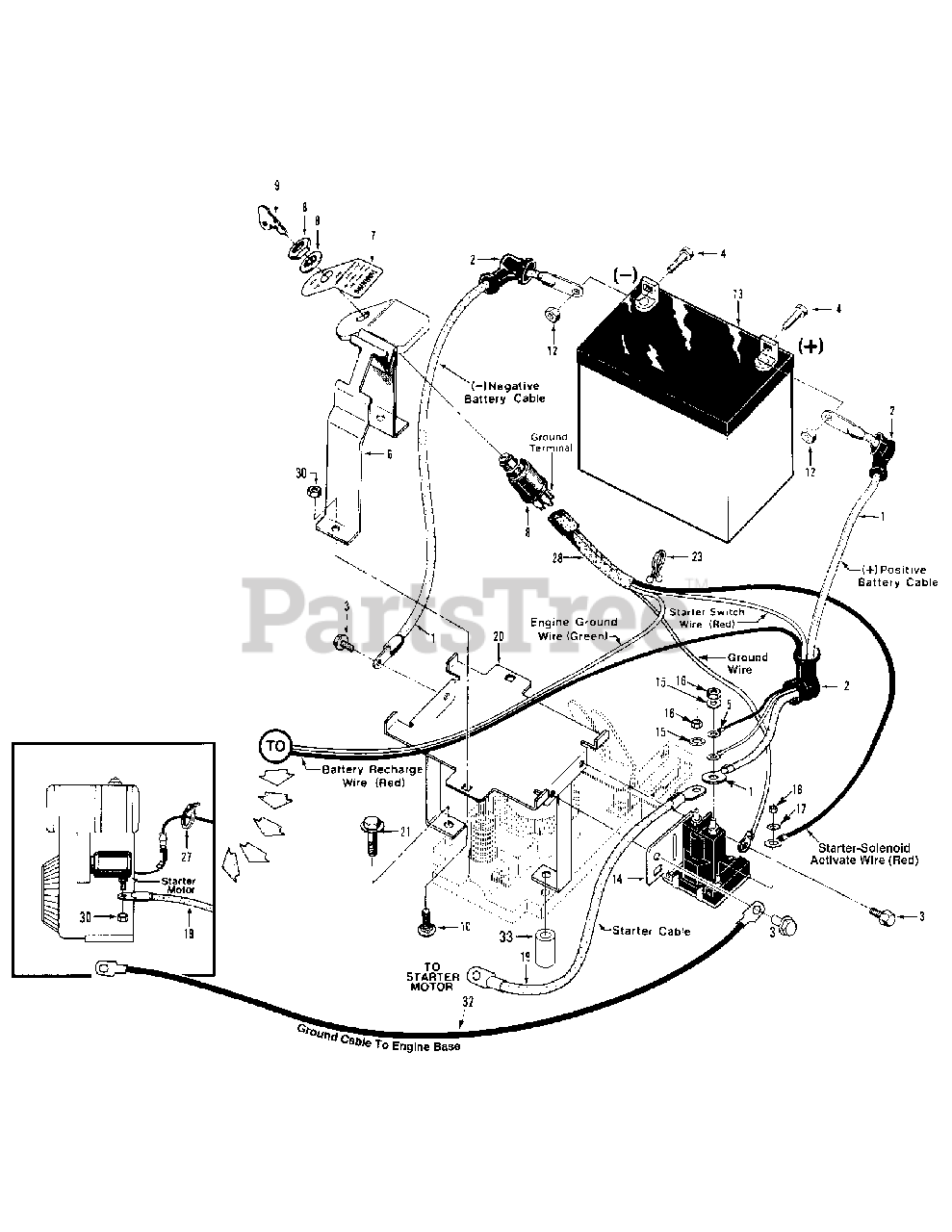

Electric Starter Assembly Parts Diagram

  • Title

1

Troy-Bilt GW-96515

Cable-battery, positive and negative terminals

$15.99

$

In Stock, only 1 left!

0

2

Troy-Bilt GW-97020

Boot-terminal insulating

$

$

Not available

3

Troy-Bilt 710-0599

Screw-TT, 1/4-2 x 1/2"

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1186309

Bolt-hex hd., 1/4-20 x 5/8"

$

$

Not available

5

Troy-Bilt 1901894

Wire-recharge (red)

$

$

Not available

6

Troy-Bilt GW-2614

Battery Hold-down Clamp-with attached Key Switch Plate
(Superseded to 686-05065)

$162.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 777S30648

Decal- ignition switch instruction

$4.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 725-0267B

Key Switch-Includes two ignition keys (Ref. 9), one lockwasher, & one mounting nut
(Superseded to 925-0267B)

Note: lock-washer and nut not available separatedly

$35.99

$

In Stock, Qty 8

0

9

Troy-Bilt 725-0201

Key-ignition, one pair
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 1186073

Bolt-carriage, 1/4-20 x 1-1/4"

$2.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 1100241

Lockwasher-spring lock, 1/4"
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

12

Troy-Bilt 712-3006

Nut-hex, 1/4"-20

$4.99

$

In Stock, Qty 19

0

13

Troy-Bilt 725-1706A

Battery-12 volt, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

14

Troy-Bilt GW-96514

Solenoid-starter, incl. Nuts & washers for cables & wires
(Superseded to GW-96514099)

$48.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 736-0119

Lockwasher-5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 1186211

Nut-hex, 5/16"-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

17

Troy-Bilt 736-0147

Lockwasher-external tooth, #10
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt GW-9853

Nut-hex. #10-32

$6.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt GW-96510

Cable-solenoid to starter motor

$11.99

$

In Stock, only 1 left!

0

20

Troy-Bilt GW-2557

Battery Bracket
(Superseded to GW-2571)

$129.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 710-3022

HH Cap Screw, 3/8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

23

Troy-Bilt GW-9265

Tie-plastic;, wire retaining

$

$

Not available

27

Troy-Bilt 725-0157

Tie-plastic

$3.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 725-04346

Wire Harness & Connecting Terminal Assembly

$54.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 1186389

Locknut-hex, 1/4"-20

$3.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 19012002

Cable-ground, solenoid to engine block

$

$

Currently unavailable

33

Troy-Bilt 750-0748

Spacer

$9.49

$

Usually ships in 3-6 days

0
