21AE683F766 - Troy-Bilt Rear-Tine Tiller (2005) Forward Interlock System Parts Diagram

Rear-Tine Tiller

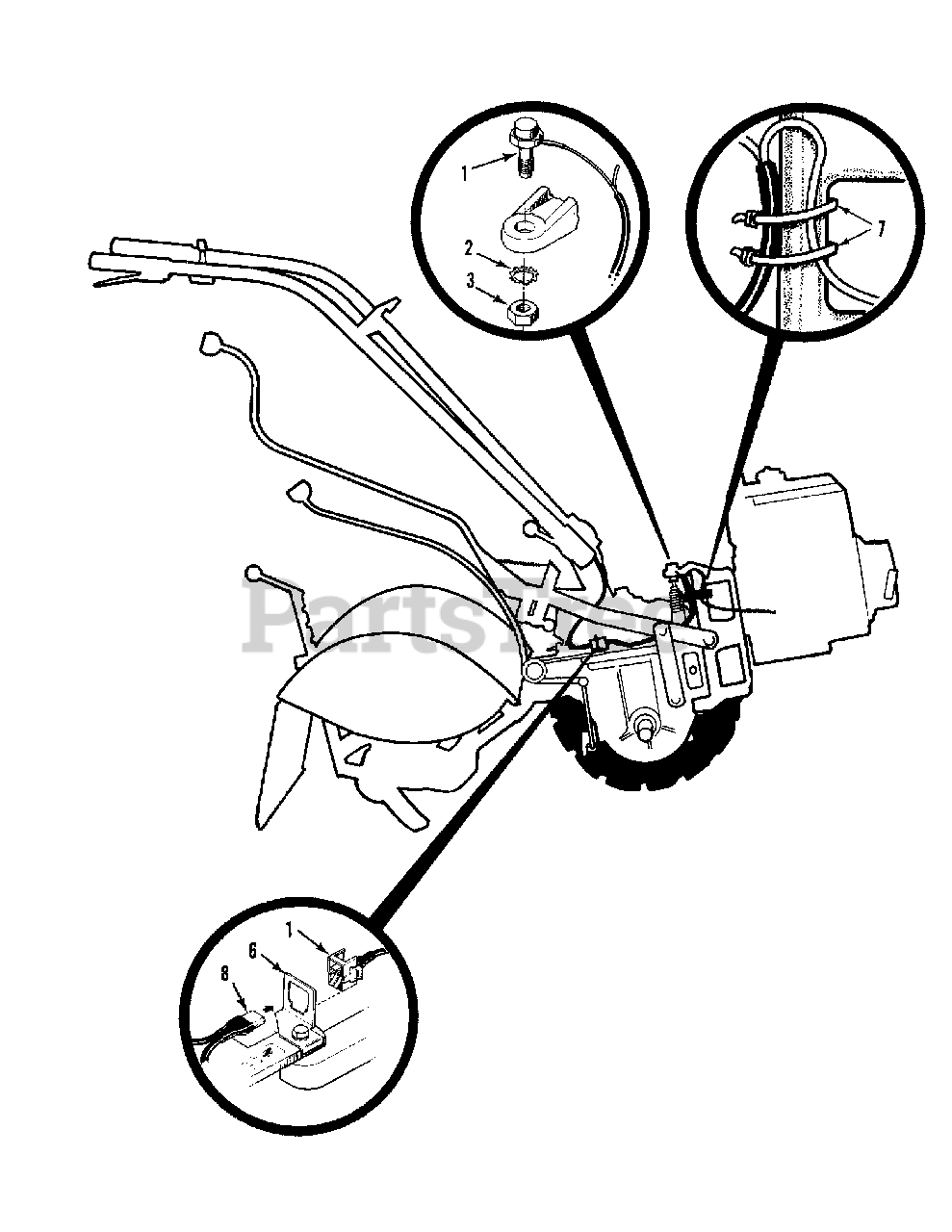

Forward Interlock System Parts Diagram

  • Title

1

Troy-Bilt 629-04017

Engine Wire Harness Assy interlock system. Parts not available separately.
(Superseded to 929-04017)

$

$

Not available

2

Troy-Bilt GW-9971

Lockwasher - external tooth 7/16

$

$

Not available

3

Troy-Bilt 1186246

Nut-hex, 7/16"-20

$

$

Not available

6

MTD GW-9205

Clip-for plug connector

$

$

Not available

7

Troy-Bilt 725-0157

Tie-plastic

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt GW-2551

Handlebar Wire Harness Assembly (see Handlebar Assembly, Ref. #20)

$

$

Not available
