21AE682WB66 - Troy-Bilt Big Red Rear-Tine Tiller (2023) Forward Drive Belt Parts Diagram

Big Red Rear-Tine Tiller

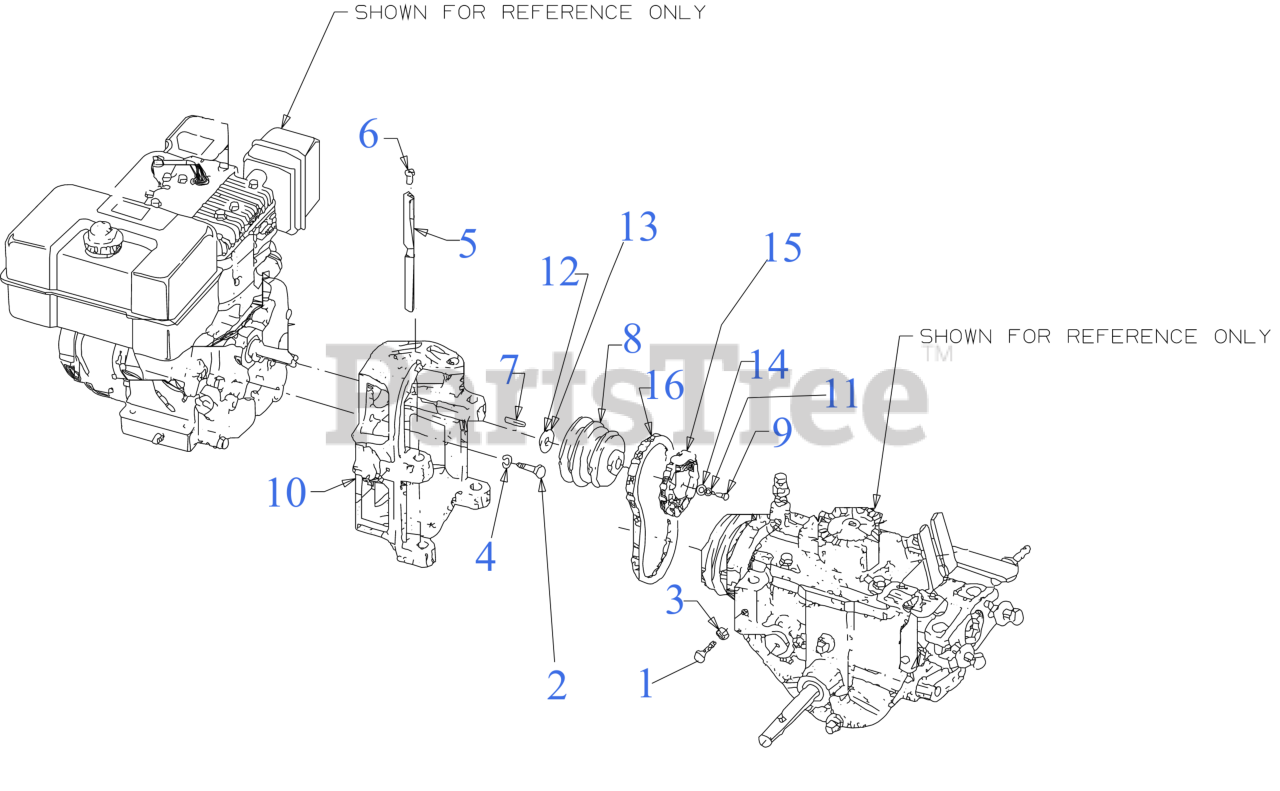

Forward Drive Belt Parts Diagram

  • Title
1

Troy-Bilt 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-05183A

SCREW 5/16-24 x 1.25 GR5

$4.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 712-3010

HEX NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 736-3078

FLAT WASHER 344X1.00

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt GW-1034A

ENGINE MOUNTING BAR

$46.99

$

In Stock, Qty 5

0

6

Troy-Bilt GW-9147

PLUG-CAP (RED)

$8.49

$

In Stock, only 1 left!

0

$153.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 710-0539

SCREW 3/8-24 x 1.75 GR5

$4.99

$

In Stock, Qty 11

0

9

Troy-Bilt 719-04222-0637

MOTOR MOUNT (POWDER BLACK)

$312.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 736-0169

LOCK WASHER 3/8

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-04187

SHIM 1.0X.7656X.062

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 736-04192

FLAT WASHER .766 x 1.000 x .031

$6.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 736-3052

FLAT WASHER .406ID X1.0 OD

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 756-04171

REVERSE DISC

$67.99

$

In Stock, Qty 14

0

15

Troy-Bilt GW-9245

DRIVE BELT FORWARD 22.14''

$23.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 10

0
