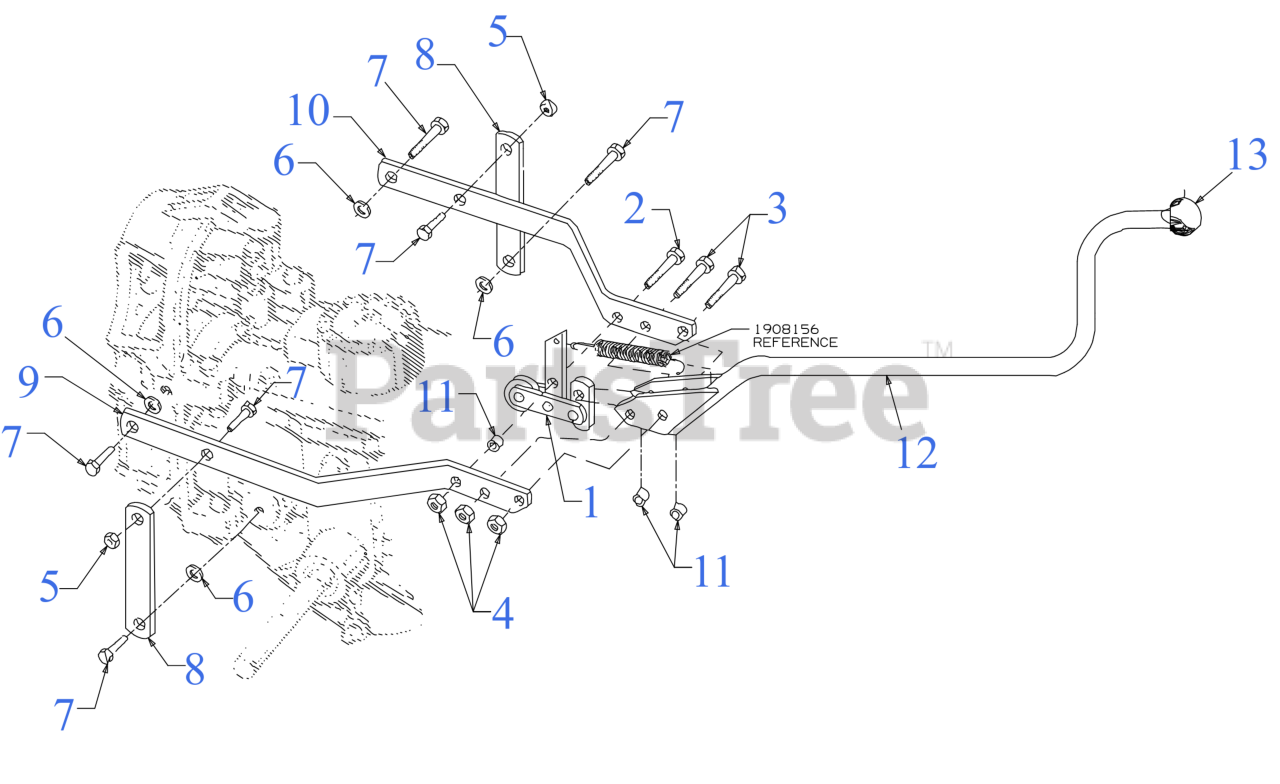

21AE682WB66 - Troy-Bilt Big Red Rear-Tine Tiller (2023) Drive Lever Parts Diagram

Big Red Rear-Tine Tiller

Drive Lever Parts Diagram

  • Title

1

Troy-Bilt 686-04006

ROLLER ASSEMBLY

Variations

Troy-Bilt 686-04006-0638

Roller Assembly, Horse - MTD/TROY-BILT RED (0638)

$93.99

$

In Stock, only 1 left!

0

$93.99

$

In Stock, only 1 left!

0

1

Troy-Bilt GW-1051A

ROLLER REPAIR KIT

$20.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-3180

SCREW 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-3000

LOCK NUT 3/8-16

$4.49

$

In Stock, Qty 9

0

6

Troy-Bilt 736-0331

BELL WASHER .390x1.130x.062

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1900860001

CLUTCH YOKE BAR

$16.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1900468010

YOKE (LH) RED

$47.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1900469010

YOKE (RH)

$42.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt GW-2447

BUSHING .5 x .316 x .375

$6.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 647-04006

FORWARD/REVERSE LEVER ASSEMBLY

$134.99

$

In Stock, only 1 left!

0

13

Troy-Bilt GW-2595099

KNOB W/INLAY-FWD/R

$17.99

$

Usually ships in 3-6 days

0
