21AE682W766 - Troy-Bilt Big Red Rear-Tine Tiller (2021) Drive Lever Parts Diagram

Big Red Rear-Tine Tiller

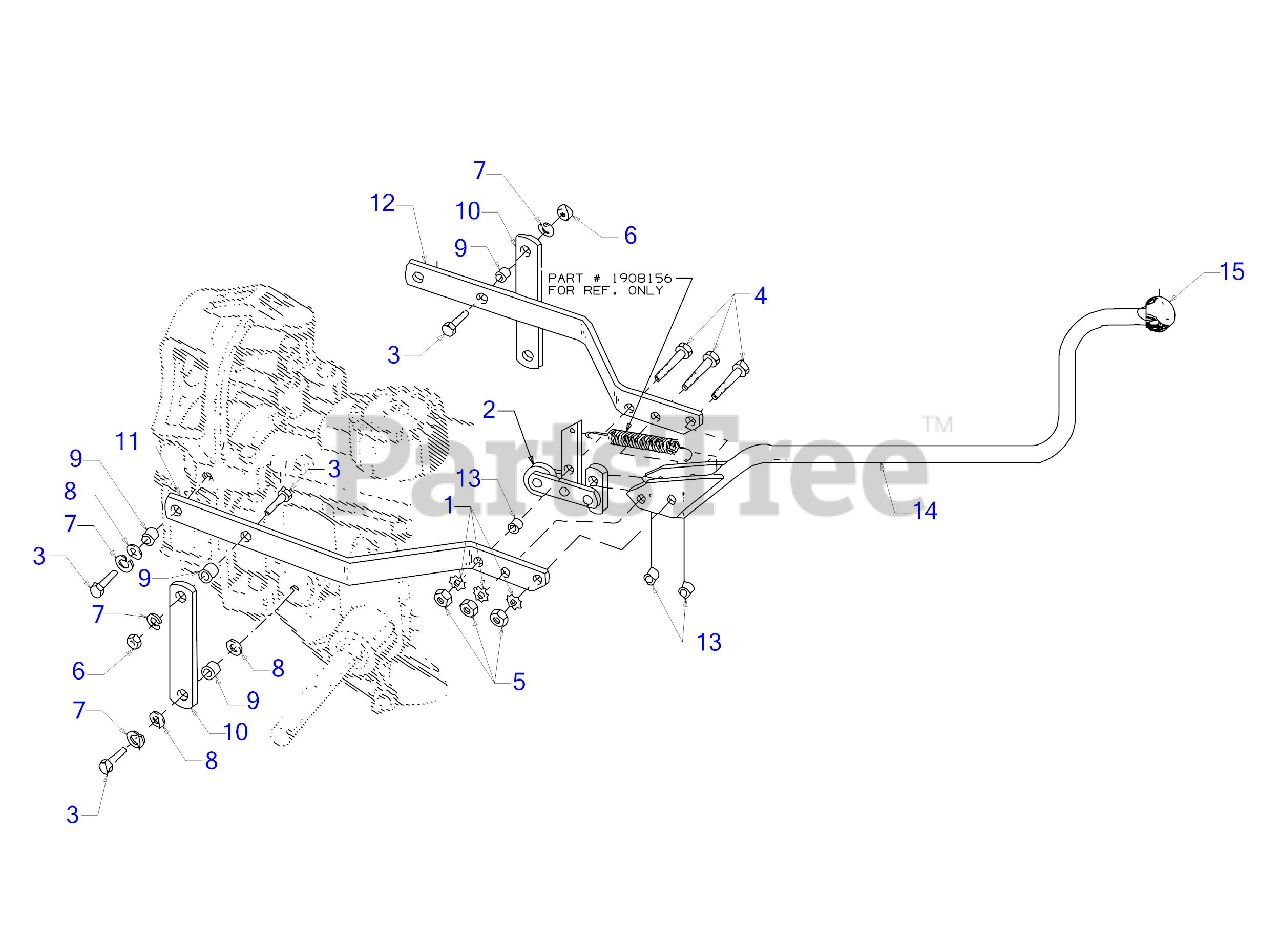

Drive Lever Parts Diagram

  • Title
1

Troy-Bilt 736-0607

WASHER-EXTERN L

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 686-04006

ROLLER ASSEMBLY

Variations

Troy-Bilt 686-04006-0638

Roller Assembly, Horse - MTD/TROY-BILT RED (0638)

$93.99

$

In Stock, only 1 left!

0

$93.99

$

In Stock, only 1 left!

0

2

Troy-Bilt GW-1051A

ROLLER REPAIR KIT

Note: (Not Shown)

$20.99

$

In Stock, only 4 left!

0

3

Troy-Bilt 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.50 GR5

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 912-3010

HEX NUT
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 912-3017

HEX NUT
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 936-0169

LOCK WASHER 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 736-3050

FLAT WASHER

$4.49

$

In Stock, Qty 16

0

9

Troy-Bilt GW-1113-1099

BUSHING .5 X

$5.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1900860001

BAR-CLUTCH YOK

$16.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1900468010

YOKE (LH) RED

$47.99

$

Usually ships in 3-6 days

0

12

$42.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt GW-2447

BUSHING .5 x .316 x .375

$6.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 647-04006

FORWARD/REVERSE LEVER ASSEMBLY

$134.99

$

In Stock, only 1 left!

0

15

Troy-Bilt GW-2595099

KNOB W/INLAY-F

$17.99

$

Usually ships in 3-6 days

0
