21AE682W766 - Troy-Bilt Big Red Rear-Tine Tiller (2016) Tine Assembly Parts Diagram

Big Red Rear-Tine Tiller

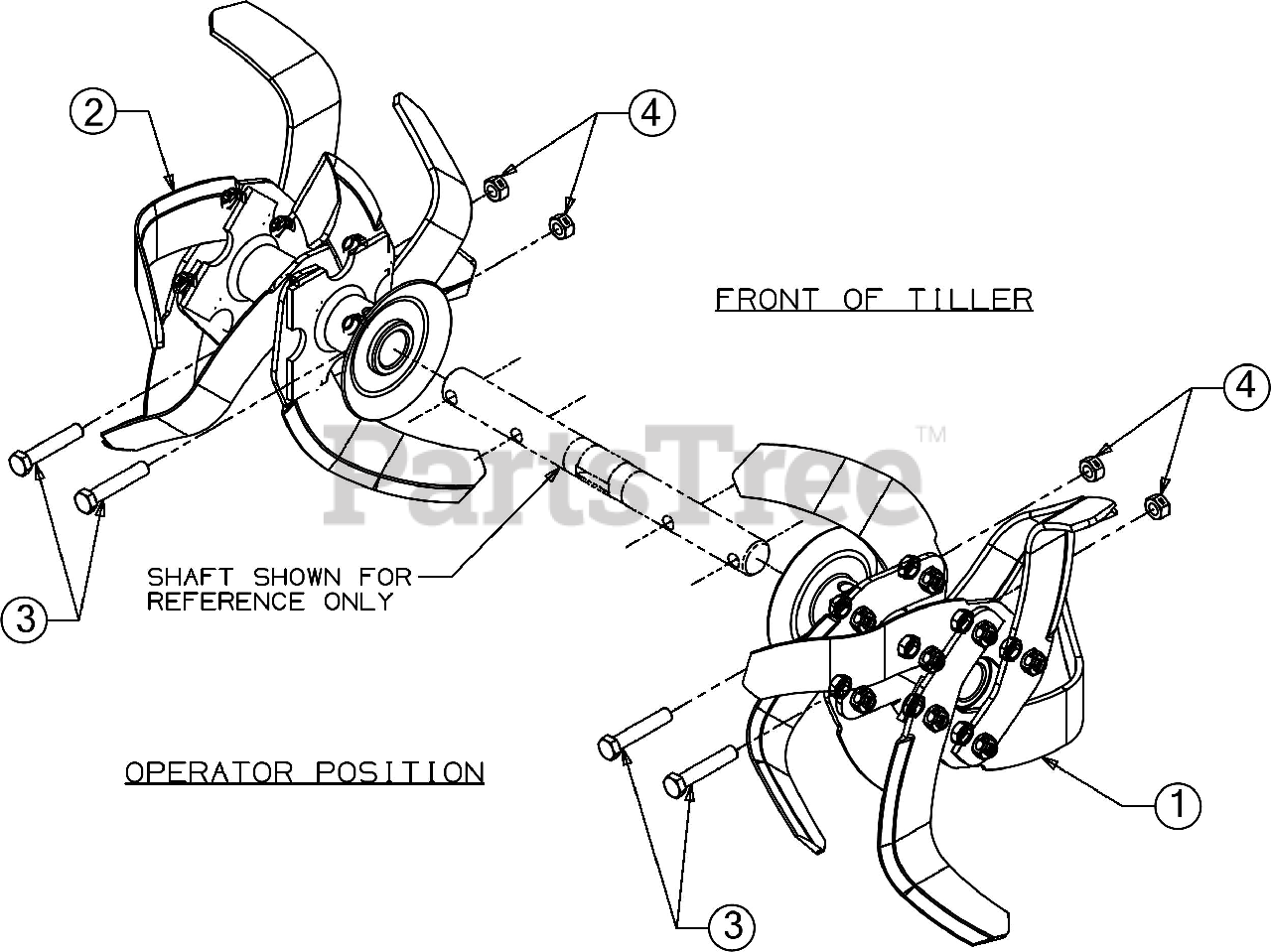

Tine Assembly Parts Diagram

  • Title
1

Troy-Bilt 686-04068-0637

TINE HOLDER ASSEMBLY

$107.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 710-0514

SCREW 3/8-16 X 1 GR5

$4.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 742-04223

BOLO TINE 12" (LH)

Variations

Troy-Bilt 742-04223-0637

Bolo Tine, LH 12" Powder Black - POWDER BLACK (0637)

$27.99

$

In Stock, Qty 13

0

Troy-Bilt 742-04223-0638

TINE-BOLO 12" LH - MTD/TROY-BILT RED (0638)

$27.99

$

In Stock, Qty 13

0

$25.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 742-04224

BOLO TINE 12" (RH)

Variations

Troy-Bilt 742-04224-0637

Bolo Tine, RH 12" Powder Black - POWDER BLACK (0637)

$27.99

$

In Stock, Qty 20+

0

Troy-Bilt 742-04224-0638

Bolo Tine, RH 12" - MTD/TROY-BILT RED (0638)

$27.99

$

In Stock, Qty 20+

0

$25.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 912-3000

LOCK NUT 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

2

Troy-Bilt 686-04068-0637

TINE HOLDER ASSEMBLY

$107.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0514

SCREW 3/8-16 X 1 GR5

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 742-04223

BOLO TINE 12" (LH)

Variations

Troy-Bilt 742-04223-0637

Bolo Tine, LH 12" Powder Black - POWDER BLACK (0637)

$27.99

$

In Stock, Qty 13

0

Troy-Bilt 742-04223-0638

TINE-BOLO 12" LH - MTD/TROY-BILT RED (0638)

$27.99

$

In Stock, Qty 13

0

$25.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 742-04224

BOLO TINE 12" (RH)

Variations

Troy-Bilt 742-04224-0637

Bolo Tine, RH 12" Powder Black - POWDER BLACK (0637)

$27.99

$

In Stock, Qty 20+

0

Troy-Bilt 742-04224-0638

Bolo Tine, RH 12" - MTD/TROY-BILT RED (0638)

$27.99

$

In Stock, Qty 20+

0

$25.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 912-3000

LOCK NUT 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

4

Troy-Bilt 912-3000

LOCK NUT 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

3

Troy-Bilt 710-3096

SCREW 3/8-16 X 2.0 GR 8

$7.99

$

Usually ships in 3-6 days

0
