21AE682W766 - Troy-Bilt Big Red Rear-Tine Tiller (2016) Handle Assembly Parts Diagram

Big Red Rear-Tine Tiller

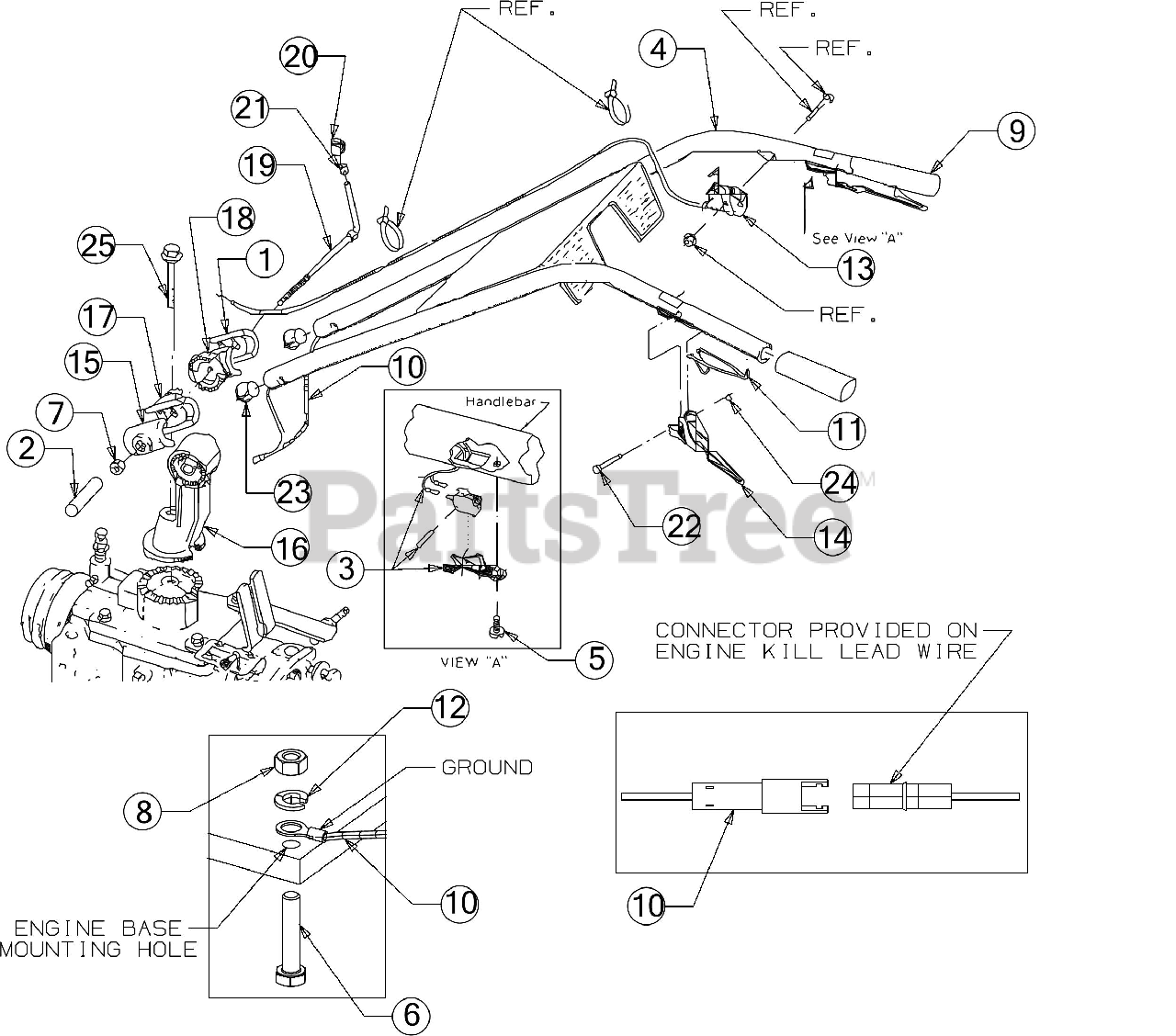

Handle Assembly Parts Diagram

  • Title
1

Troy-Bilt 1900855010

CLAMP (RH) HORSE

$38.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1901835

CAP:PLUG HI TEMP

$3.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 625-04097

MICRO SWITCH ASSEMBLY

$72.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 725-05005

MICRO SWITCH

$30.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 649-04020-0638

HANDLE ASSEMBLY

$255.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0779A

SCREW #10-16 X .500

$4.49

$

In Stock, Qty 12

0

6

Troy-Bilt 710-0805A

SCREW 5/16-18 X 1.5 LG

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 912-0206

HEX NUT
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 912-3010

HEX NUT
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 720-04083

GRIP 1.188 X 4.562

$14.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 725-04367

ENGINE HARNESS

$60.99

$

Usually ships in 3-6 days

0

$6.99

$

In Stock, only 3 left!

0

12

Troy-Bilt 936-0119

LOCK WASHER 5/16

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 946-05084

THROTTLE CABLE ASSEMBLY

$57.99

$

In Stock, only 1 left!

0

$28.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 1900854010

CLAMP (LH) HORSE

$36.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 1900858010

HANDLE BAR BAS

$125.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 1900856010

RATCHET (LH) RED

$42.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 1900857010

RATCHET (RH) RED

$49.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt GW-1881

STUD-H/BAR W/NUT

$62.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt GW-9119

CONTROL KNOB

$11.99

$

In Stock, only 1 left!

0

21

Troy-Bilt GW-9120

RING-TOLERANCE

$6.99

$

In Stock, only 1 left!

0

22

Troy-Bilt GW-9199

PIN-PIVOT

$6.49

$

In Stock, only 2 left!

0

23

Troy-Bilt GW-9219

RETAINER-HARNESS

$10.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt GW-9514

RING-KLIP

$6.99

$

In Stock, only 2 left!

0

25

Troy-Bilt GW-9548

BOLT 132-13X3.5 FH

$14.99

$

Usually ships in 3-6 days

0
