21AE682L766 - Troy-Bilt Big Red Rear-Tine Tiller (2014) Tine Assembly Parts Diagram

Big Red Rear-Tine Tiller

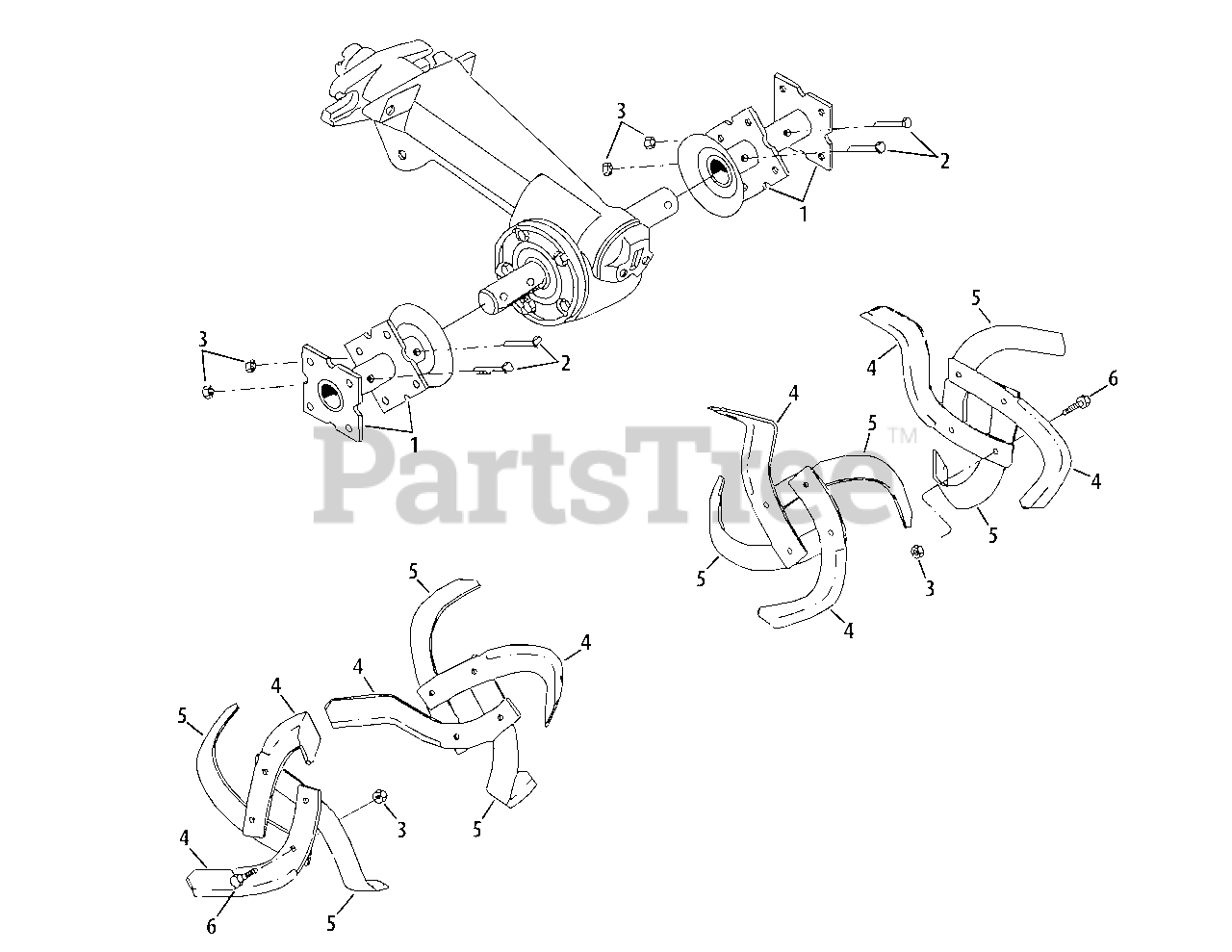

Tine Assembly Parts Diagram

  • Title
1

$107.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-3096

Hex Bolt, 3/8"-16 x 2"

$7.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 912-3000

Hex Locknut, 3/8"-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

4

Troy-Bilt 742-04223-0638

Bolo Tine Left
(Superseded to 742-04223-0637)

$27.99

$

In Stock, Qty 13

0

5

Troy-Bilt 742-04224-0638

Bolo Tine Right
(Superseded to 742-04224-0637)

$27.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0514

Hex Head Screw, 3/8"-16 x 1"

$4.49

$

In Stock, Qty 20+

0
