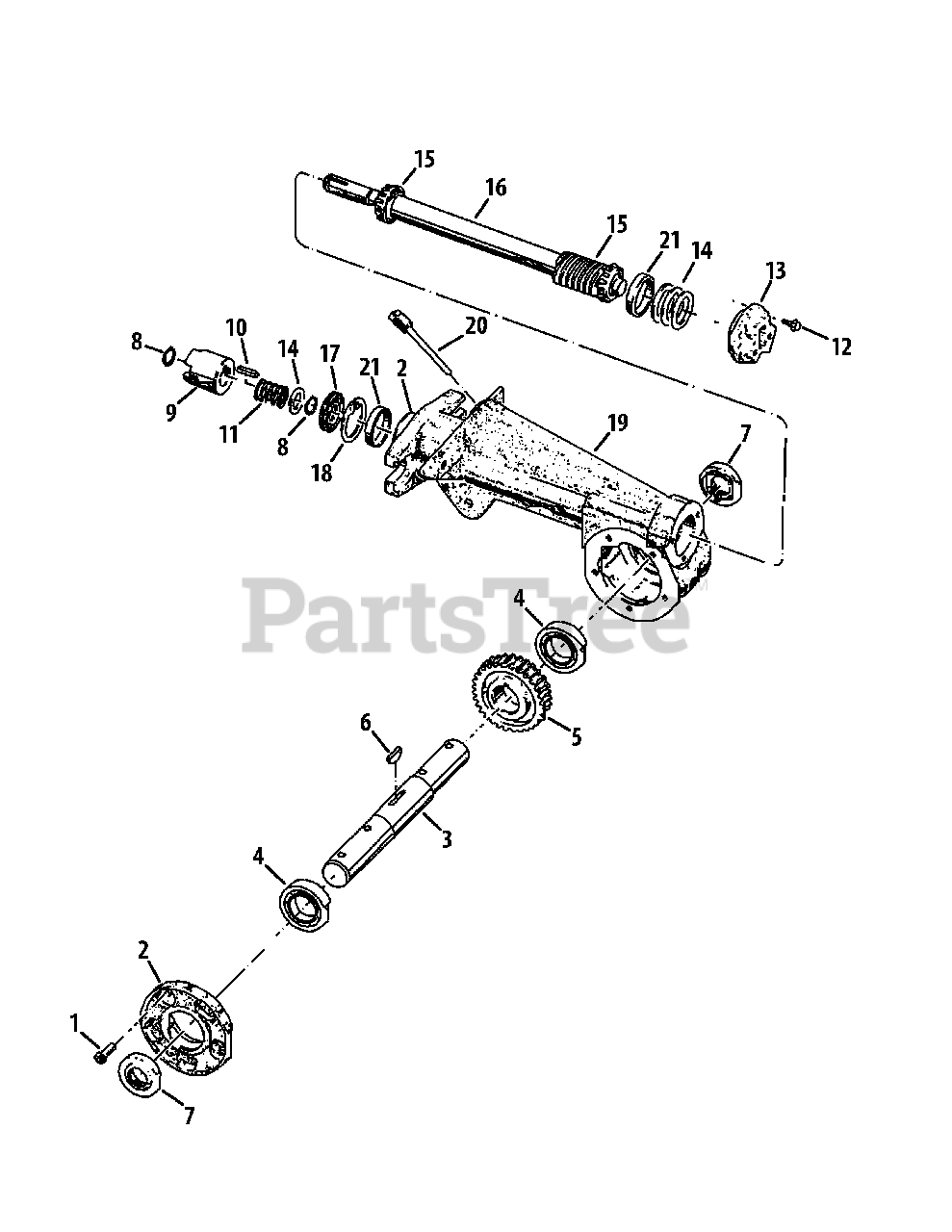

21AE682L766 - Troy-Bilt Big Red Rear-Tine Tiller (2009) Tiller Shaft Assembly Parts Diagram

Big Red Rear-Tine Tiller

Tiller Shaft Assembly Parts Diagram

  • Title

1

Troy-Bilt 1915068

Self-Sealing Screw, 1/4"-20 x 5/8"

Note: These Screws have a psecial Sealing design and cannot be reused. Replaces with new hardware.

$4.49

$

In Stock, Qty 10

0

2

Troy-Bilt GW-20873

Tiller Housing Cover

$108.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 911-04082

Tine Shaft

$115.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 941-3037

Ball Bearing

$41.99

$

In Stock, Qty 14

0

5

Troy-Bilt 1901976

Worm Gear

$167.99

$

In Stock, only 1 left!

0

6

Troy-Bilt GW-1104

Woodruff Key

$9.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 921-04035

Oil Seal

$11.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 916-0101

External Retaining Ring
(Superseded to 716-0101)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 718-04614

Dog Clutch

$31.99

$

In Stock, only 1 left!

0

10

Troy-Bilt GW-9301099

Key, 3/8" x 1"
(Superseded to GW-9301)

$3.99

$

In Stock, only 3 left!

0

11

Troy-Bilt GW-2127

Spring

$5.99

$

In Stock, Qty 13

0

12

Troy-Bilt 1915069

Self-Sealing Screw, 1/4"-20 x 7/8"

Note: These Screws have a psecial Sealing design and cannot be reused. Replaces with new hardware.

$4.49

$

In Stock, only 3 left!

0

13

Troy-Bilt 718-04406

Cap

$50.99

$

In Stock, Qty 5

0

14

Troy-Bilt 736-04305

Flat Washer, 1.75 x 1.5 x .062

Note: Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft.

$3.99

$

In Stock, Qty 16

0

14

Troy-Bilt 736-04306

Flat Washer, 1.75 x 1.5 x .005

Note: Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft.

$4.49

$

In Stock, Qty 6

0

14

Troy-Bilt 736-04307

Flat Washer, 1.75 x 1.5 x .03

Note: Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft.

$4.49

$

In Stock, only 3 left!

0

14

Troy-Bilt 736-04308

Flat Washer, 1.75 x 1.5 x .01

Note: Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft.

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 941-04299

Cup Bearing

$6.99

$

In Stock, Qty 20+

0

16

Troy-Bilt GW-11602

Shaft

$302.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 921-04030

Oil Seal

$12.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 716-04102

Retaining Ring

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 1902000

Attachment Housing

$318.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 1909157

Oil Dipstick

$18.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 941-04298

Cone Bearing

$16.99

$

In Stock, Qty 20+

0
